Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

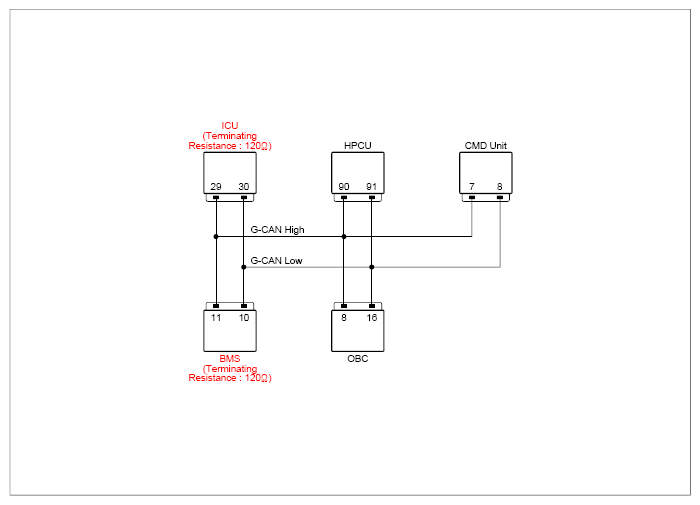

G14962653

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON". Connect the VMI to KDS.	HPCU connector	90 (G-CAN high)	Chassis ground	-	Fig.1
Ignition "ON". Connect the VMI to KDS.	HPCU connector	91 (G-CAN low)	Chassis ground	-	Fig.1
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	HPCU connector	4, 5, 6 (Memory power)	Chassis ground	-	B+
	HPCU connector	46 (ON/START Input)	Chassis ground	-	B+
Ignition "OFF". Disconnect auxiliary battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	HPCU connector	1, 2, 3 (ground)	Chassis ground	-	Approx. below 1Ω
	HPCU connector	90 (G-CAN high)	HPCU connector	91 (G-CAN low)	Approx. 60Ω
	BMU (component side)	11 (G-CAN high)	BMU (component side)	10 (G-CAN low)	Approx. 120Ω
	ICU (component side)	29 (G-CAN high)	ICU (component side)	30 (G-CAN low)	Approx. 120Ω
	ICU connector	29 (G-CAN high)	Chassis ground	-	∞ (infinity)Ω
	ICU connector	30 (G-CAN low)	Chassis ground	-	∞ (infinity)Ω

G14962654

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.
Repair as necessary and then go to "Verification Of Repair " procedure.

No Good

Repair open or short in circuit and then go to "Verification Of Repair " procedure.
