Monitor KDS Data

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

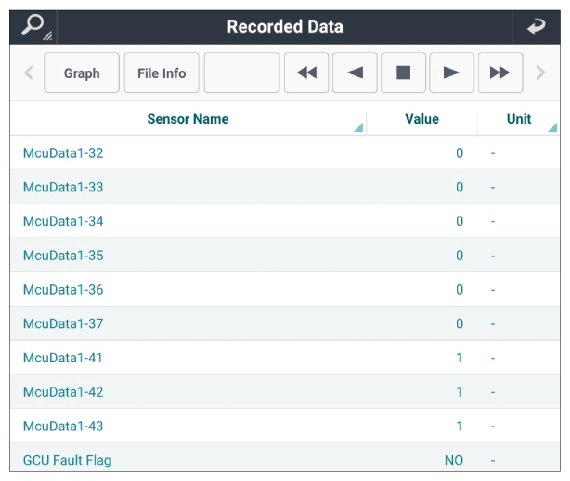

Ignition "ON" Cluster indicator "READY" ON. Lift the vehicle, shift lever D-range, no brake applied.	Connect KDS to "Data Link Connector (DLC)". Operate vehicle or system in accordance with enable condition in DTC detecting condition. Monitor parameters in "Current Data" with KDS.	Fig.1

G14962644

Courtesy of KIA MOTORS AMERICA, INC.

Current data	Normal	Abnormal
GCU fault flag	NO	Not No
MCU Data 1-32	Not 0	0 at the same time
MCU Data 1-33	Not 0	0 at the same time
MCU Data 1-34	Not 0	0 at the same time
MCU Data 1-35	Not 0	0 at the same time
MCU Data 1-36	Not 0	0 at the same time
MCU Data 1-37	Not 0	0 at the same time
MCU Data 1-41	0 to 10	Over 10
MCU Data 1-42	0 to 10	Over 10
MCU Data 1-43	0 to 10	Over 10

Good

Fault is intermittent caused by poor contact in the HSG connector was repaired and module memory was not cleared.
Check the connector for connection status (Locking device damaged, defective terminals, terminals and wiring connections), looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair as necessary and then go to "Verification Of Repair " procedure.

No Good

Go to "WIRING INSPECTION " procedure.
