Monitor KDS Data

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON" Cluster indicator "READY" ON. Lift the vehicle, shift lever D-range, no brake applied.	Connect KDS to "Data Link Connector (DLC)". Operate vehicle or system in accordance with enable condition in DTC detecting condition. Monitor "Drive Motor Resolver Offset" parameters in "Current Data" with KDS.	Fig.1

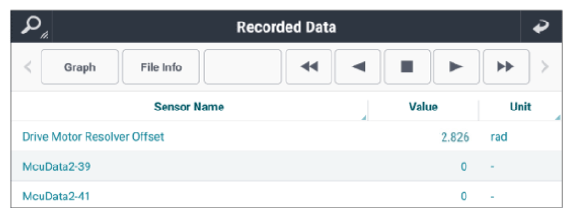

Courtesy of KIA MOTORS AMERICA, INC.

Current data	Normal	Abnormal
Drive Motor Resolver Offset	2.6833 to 3.2067	Out of normal range
MCU Data 2-39	0	Value is not 0
MCU Data 2-41	0	Value is not 0

Good

It has been repaired and MCU memory is not cleared yet or "Motor/HSG Resolver Calibration" has not been performed. go to "Verification Of Repair " procedure.

No Good

If problem still occurs, repair or replace HSG and then go to "Verification Of Repair " procedure with reference to "Vehicle S/W Management" of "P0A0D00".

CAUTION: Perform "Motor/HSG Resolver Calibration" with KDS in Case HPCU or motor is replaced or repaired, and then operate Electric Water Pump (EWP) to recirculate and refill coolant.
