Monitor DTC Status
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

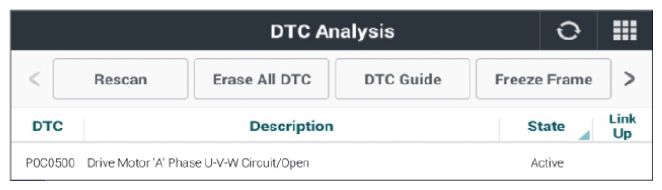

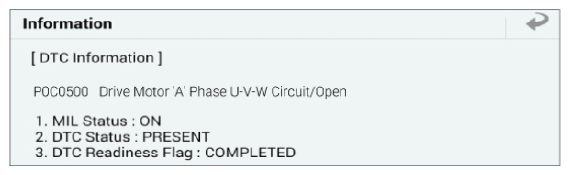

Fig.1 to 2 |
Active Fault
- Go to "MONITOR KDS DATA " procedure.
History/Pending Fault
- Fault is intermittent caused by poor contact in the drive motor 3 phase cable connector/drive motor connector was repaired and module memory was not cleared.
- Connect circuit between hybrid motor connector (power) and HPCU drive motor inverter connector (power) and then go to "Verification Of Repair " procedure.
- Go to "WIRING INSPECTION " procedure.
