Monitor KDS Data

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  2. Cluster indicator "READY" ON.
  3. Lift the vehicle, shift lever D-range, no brake applied.
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Operate vehicle or system in accordance with enable condition in DTC detecting condition.
  3. Monitor parameters in "Current Data" with KDS.

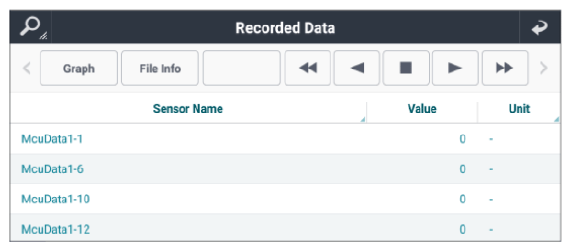

 Fig.1
G14962547Courtesy of KIA MOTORS AMERICA, INC.
Current data Normal Abnormal
MCU Data 1-1 0 Value is not 0
MCU Data 1-6 0 Value is not 0
MCU Data 1-10 0 Value is not 0
MCU Data 1-12 0 Value is not 0

Good

No Good
