Monitor KDS Data

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON". Cluster indicator "READY" ON. Lift the vehicle, shift lever D-range, no brake applied.	Connect KDS to "Data Link Connector (DLC)". Operate vehicle or system in accordance with enable condition in DTC detecting condition. Monitor parameters in "Current Data" with KDS.	Fig.1

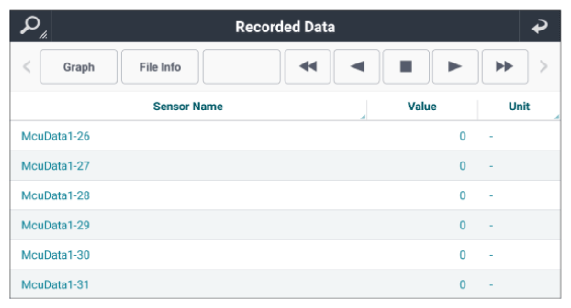

G14962541

Courtesy of KIA MOTORS AMERICA, INC.

Current data	Normal	Abnormal
MCU Data 1-26	0	Value is not 0
MCU Data 1-27	0	Value is not 0
MCU Data 1-28	0	Value is not 0
MCU Data 1-29	0	Value is not 0
MCU Data 1-30	0	Value is not 0
MCU Data 1-31	0	Value is not 0

Good

Fault is intermittent caused by poor contact in the HPCU's connector or was repaired and module memory was not cleared.
Repair as necessary and then go to "Verification Of Repair " procedure.

No Good

Go to "WIRING INSPECTION " procedure.
