Monitor DTC Status
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

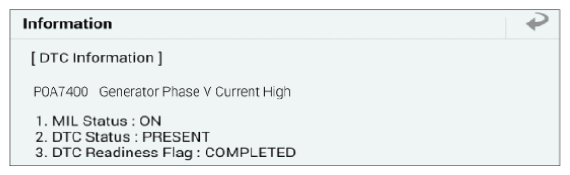

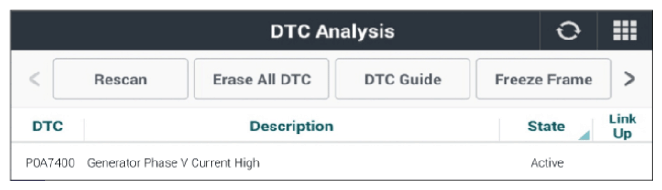

Fig.1 to 2 |
Active Fault
- Go to "MONITOR KDS DATA " procedure.
History/Pending Fault
- Fault is intermittent caused by poor contact in the HPCU's connector/HSG connector was repaired and module memory was not cleared.
- Check the connector for connection status (Locking device damaged, defective terminals, terminals and wiring connections), looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair as necessary and then go to "Verification Of Repair " procedure.
