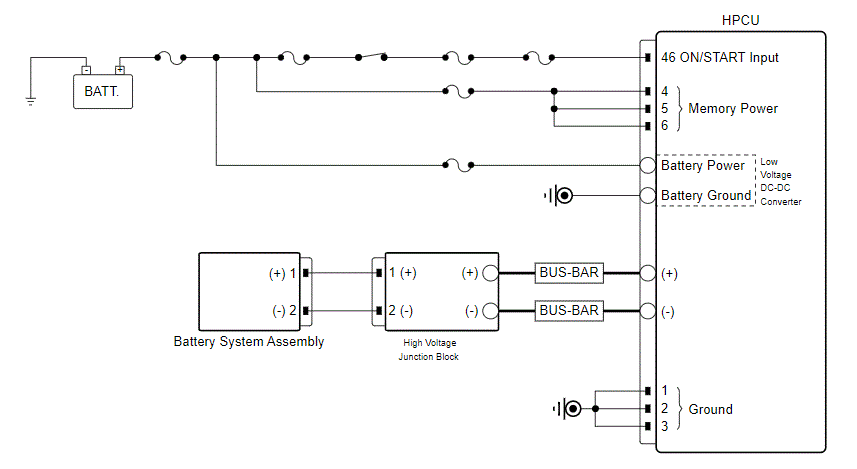

Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

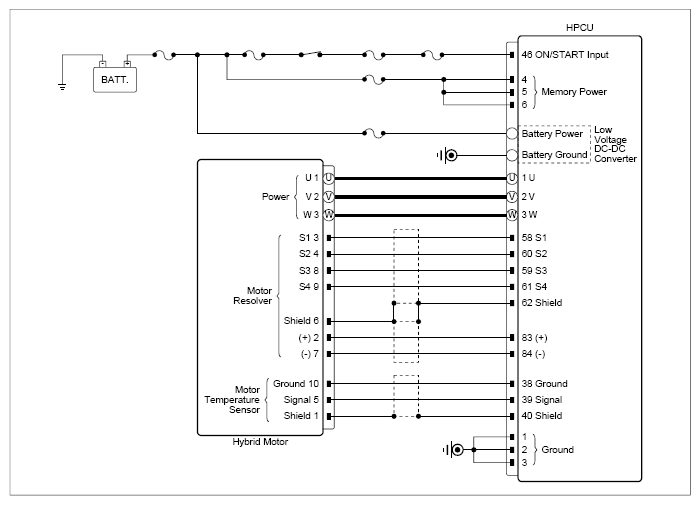

Drive motor high voltage cable connector | 1 (U) | HPCU high voltage cable connector (drive motor side) | 2 (V) | ∞ (infinity)Ω or above 10MΩ |
| Drive motor high voltage cable connector | 1 (U) | HPCU high voltage cable connector (drive motor side) | 3 (W) | ∞ (infinity)Ω or above 10MΩ | |
| Drive motor high voltage cable connector | 2 (V) | HPCU high voltage cable connector (drive motor side) | 3 (W) | ∞ (infinity)Ω or above 10MΩ | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair as necessary and then go to "Verification Of Repair " procedure.
