Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

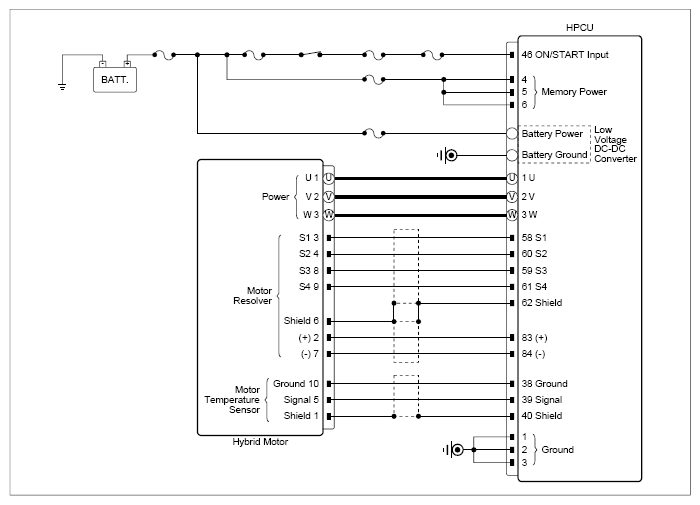

G14962413

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect auxiliary battery (-) cable. Disconnect main battery safety plug, and wait for 5 minutes. Disconnect the electrical connector(s) from the concerned component.	Drive motor connector	2 (+)	Drive motor connector	3 (S1)	8 (infinity)Ω
	Drive motor connector	2 (+)	Drive motor connector	4 (S2)	8 (infinity)Ω
	Drive motor connector	2 (+)	Drive motor connector	8 (S3)	8 (infinity)Ω
	Drive motor connector	2 (+)	Drive motor connector	9 (S4)	8 (infinity)Ω
	Drive motor connector	7 (-)	Drive motor connector	3 (S1)	8 (infinity)Ω
	Drive motor connector	7 (-)	Drive motor connector	4 (S2)	8 (infinity)Ω
	Drive motor connector	7 (-)	Drive motor connector	8 (S3)	8 (infinity)Ω
	Drive motor connector	7 (-)	Drive motor connector	9 (S4)	8 (infinity)Ω
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Drive motor connector	2 (+)	Chassis ground	-	Approx. 6.6V
	Drive motor connector	7 (-)	Chassis ground	-	Approx. 6.6V

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair as necessary and then go to "Verification Of Repair " procedure.
Repair open or short in signal circuit between drive motor position sensor connector and MCU and then go to "Verification Of Repair " procedure.
