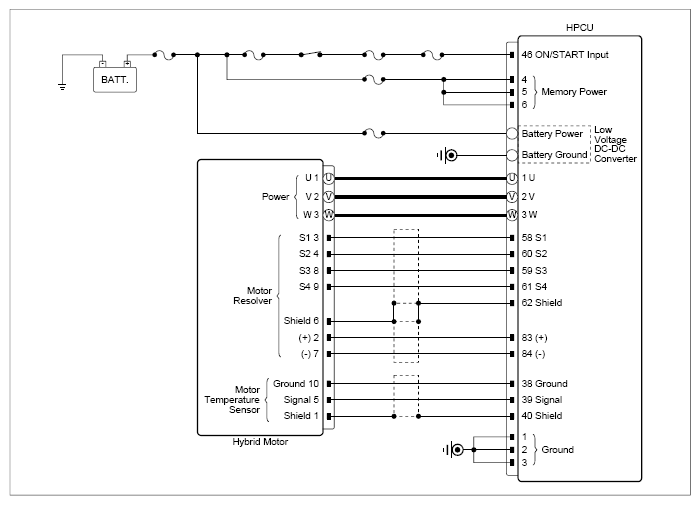

Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Drive motor connector | 3 (S1) | Chassis ground | - | 8 (infinity)Ω |
| Drive motor connector | 3 (S1) | HPCU connector | 58 (S1) | Approx. below 1Ω | |
| Drive motor connector | 4 (S2) | Chassis ground | - | 8 (infinity)Ω | |
| Drive motor connector | 4 (S2) | HPCU connector | 60 (S2) | Approx. below 1Ω | |
| Drive motor connector | 8 (S3) | Chassis ground | - | 8 (infinity)Ω | |
| Drive motor connector | 8 (S3) | HPCU connector | 59 (S3) | Approx. below 1Ω | |
| Drive motor connector | 9 (S4) | Chassis ground | - | 8 (infinity)Ω | |
| Drive motor connector | 9 (S4) | HPCU connector | 61 (S4) | Approx. below 1Ω | |
| Drive motor connector | 2 (+) | HPCU connector | 83 (+) | Approx. below 1Ω | |
| Drive motor connector | 7 (-) | HPCU connector | 84 (-) | Approx. below 1Ω | |
| Drive motor connector | 2 (+) | HPCU connector | 84 (-) | 8 (infinity)Ω | |
| Drive motor connector | 7 (-) | HPCU connector | 83 (+) | 8 (infinity)Ω | |
|
Drive motor connector | 3 (S1) | Chassis ground | - | Approx. 0.15V |
| Drive motor connector | 4 (S2) | Chassis ground | - | Approx. 0.15V | |
| Drive motor connector | 8 (S3) | Chassis ground | - | Approx. 8.43V | |
| Drive motor connector | 9 (S4) | Chassis ground | - | Approx. 8.43V | |
| Drive motor connector | 2 (+) | Chassis ground | - | Approx. 6.6V | |
| Drive motor connector | 7 (-) | Chassis ground | - | Approx. 6.6V | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair as necessary and then go to "Verification Of Repair " procedure.
- Repair open or short in signal circuit between drive motor position sensor connector and MCU and then go to "Verification Of Repair " procedure.
