Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

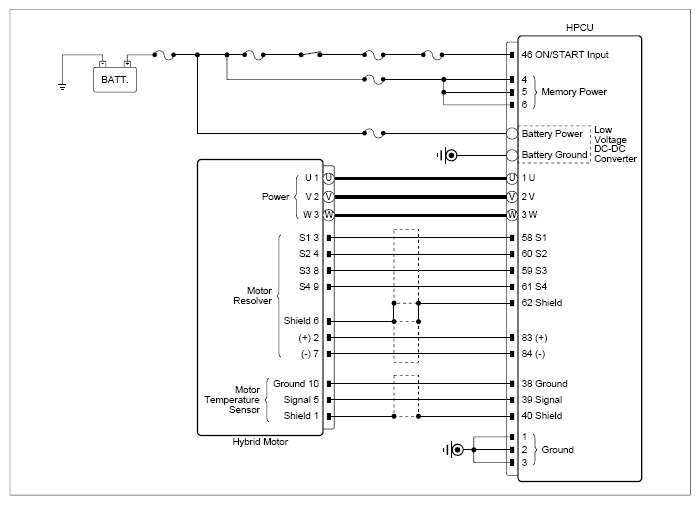

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
HPCU connector | 39 (signal) | Drive motor temperature sensor connector | 5 (signal) | Approx. below 1Ω |
| Drive motor temperature sensor connector | 5 (signal) | Chassis ground | - | ∞ (infinity)Ω | |
| Drive motor temperature sensor connector | 5 (signal) | Drive motor temperature sensor connector | 10 (ground) | ∞ (infinity)Ω | |
|
Drive motor temperature sensor connector | 5 (signal) | Chassis ground | - | Approx. 5V |
| Drive motor temperature sensor connector | 10 (ground) | Chassis ground | - | Approx. 0V | |
| Drive motor temperature sensor connector | 1 (shield) | Chassis ground | - | Approx. 0V | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair as necessary and then go to "Verification Of Repair " procedure.
- Repair open or short in signal circuit between drive motor temperature sensor connector and MCU and then go to "Verification Of Repair " procedure.
