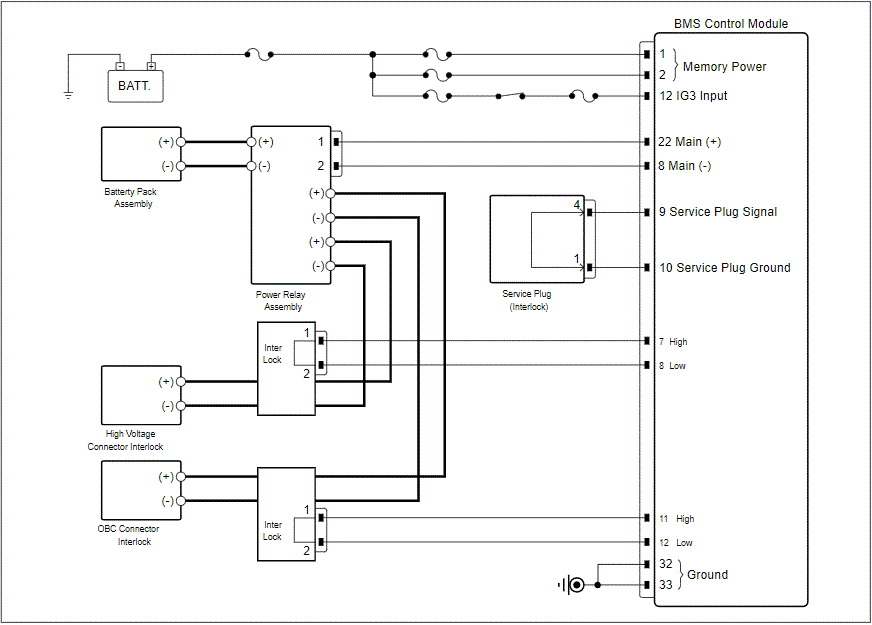

Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
High voltage relay assembly high voltage cable | (+) | High voltage relay assembly high voltage cable | (-) | Approx. 360V |
|
Each battery cell | Voltage signal | Each battery cell | Chassis ground | Approx. 3.75V |
Good
- If no problems were found with the circuits or connectors, check charging system and Go to "Verification Of Repair " procedure.
No Good
- If no problems were found with the circuits or connectors and maximum cell voltage is greater than 4.5V, replace the Hybrid battery pack and Go to "Verification Of Repair " procedure.
