Diagnosis Code Of Freeze Frame Data
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

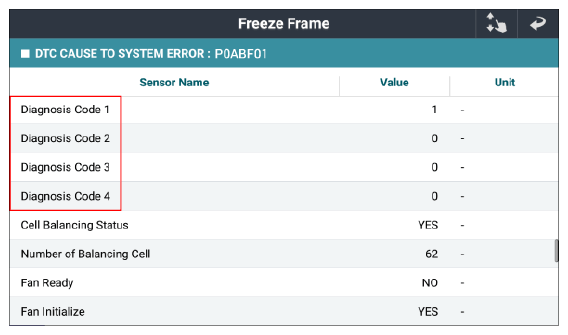

Table1 Fig.1 |
DIAGNOSTIC CODE DESCRIPTION
| Classification | Diagnostic Code | Remark |
|---|---|---|
| Save data when failure occurs | Diagnosis Code 1 = Current offset value | Check the meaning of the "Diagnosis Code" through the table. |
| Diagnosis Code 2 = Time of occurrence (IG OFF: 0, IG ON: 1) | ||
| Diagnosis Code 3 = Current sensor power voltage |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. Repair or replace as necessary and then Go to "Verification Of Repair " procedure.
No Good
- Go to "WIRING INSPECTION " procedure.
