Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

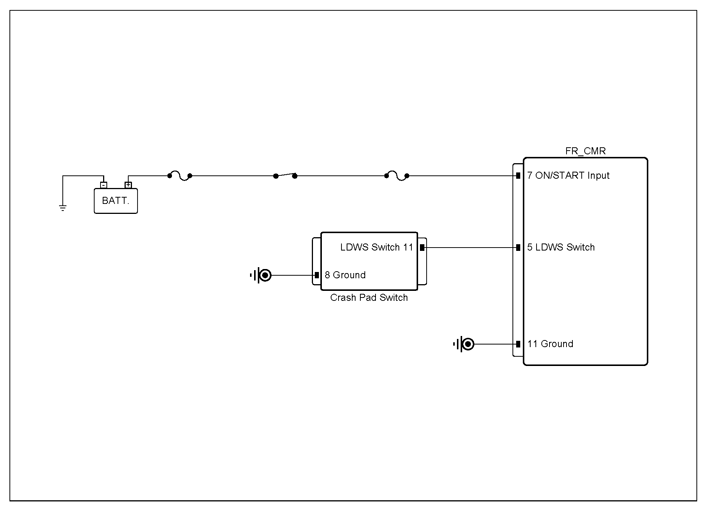

G14961121Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect auxiliary battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component.
 Crash pad switch connector 8 (ground) Chassis ground - Approx. below 1Ω
Crash pad switch connector 11 (LDWS switch) FR_CMR connector 5 (LDWS switch) Approx. below 1Ω
  1. Ignition "ON".
 FR_CMR connector 5 (LDWS switch) Chassis ground - Approx 7.5V
  1. Ignition "ON".
  2. Press hold the LDWS switch.
 FR_CMR connector 5 (LDWS switch) Chassis ground - Approx 3.3V
  1. Ignition "OFF".
  2. Disconnect auxiliary battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component.
 FR_CMR connector 11 (ground) Chassis ground - Approx. below 1Ω
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 FR_CMR connector 7 (ON/START Input) Chassis ground - B+

Good

No Good
