Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

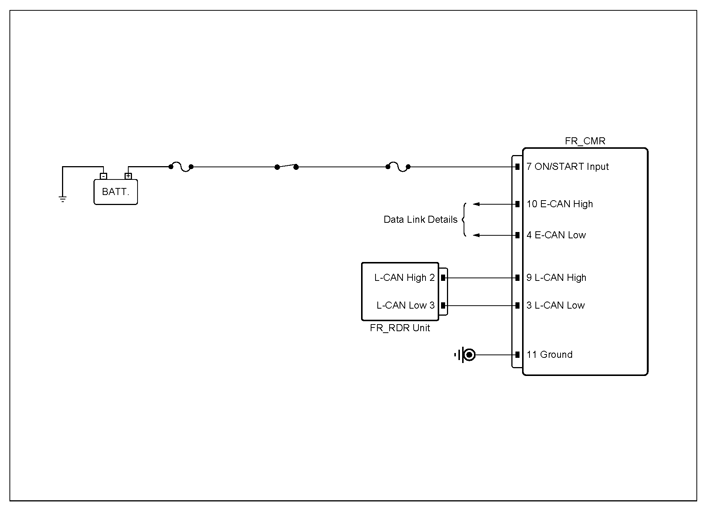

G14961139

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect auxiliary battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	FR_CMR connector	11 (ground)	Chassis ground	-	Approx. below 1Ω
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	FR_CMR connector	7 (ON/START Input)	Chassis ground	-	B+

Good

If no problems were found with the circuits or connectors, replace the FR_CMR ECU and Go to "Verification Of Repair " procedure.
* In case of replacing FR_CMR ECU, perform following "System Inspection" procedures.

No Good

Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
