Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * perform the "Variant Coding" and "Inspection/correction of the front-radar mounting angle (FCA/SCC)" on "Vehicle S/W Management", once FR_RDR ECU is replaced.
* Do not select the [Stop mode] in "Inspection/correction of the front-radar mounting angle (FCA/SCC)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 14
G14961017Courtesy of KIA MOTORS AMERICA, INC.

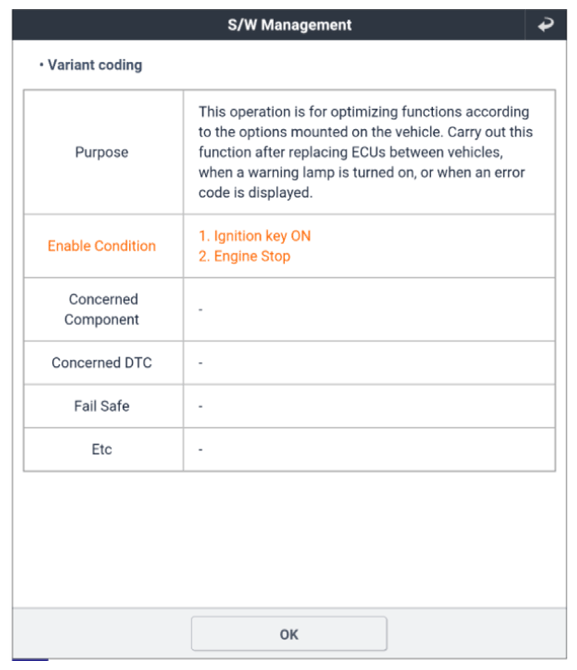

G14961018Courtesy of KIA MOTORS AMERICA, INC.

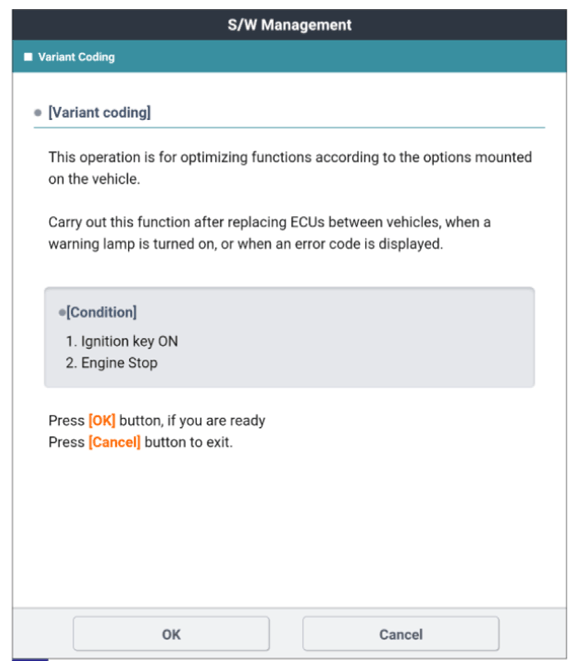

G14961019Courtesy of KIA MOTORS AMERICA, INC.

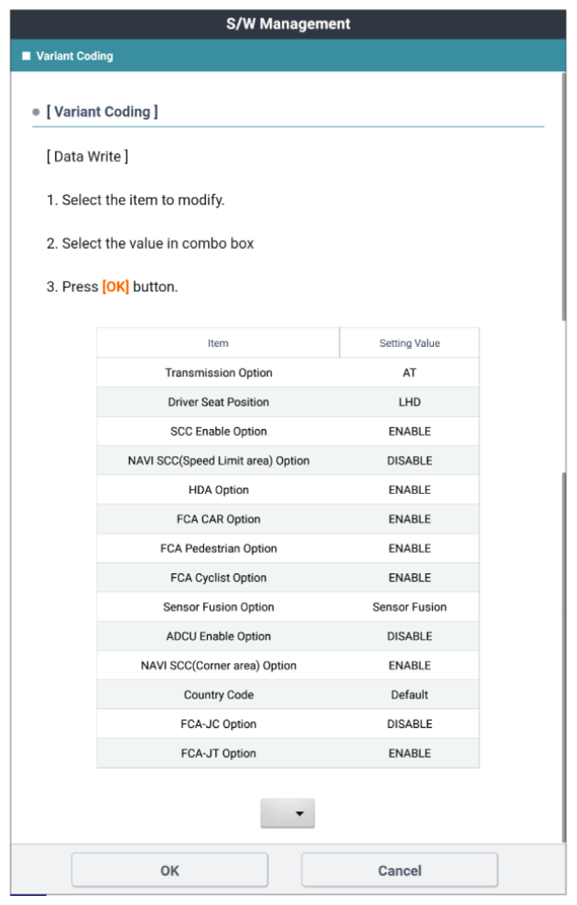

G14961020Courtesy of KIA MOTORS AMERICA, INC.

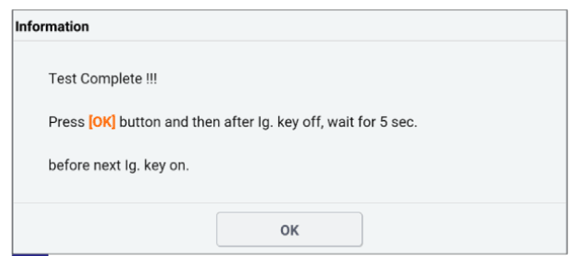

G14961021Courtesy of KIA MOTORS AMERICA, INC.

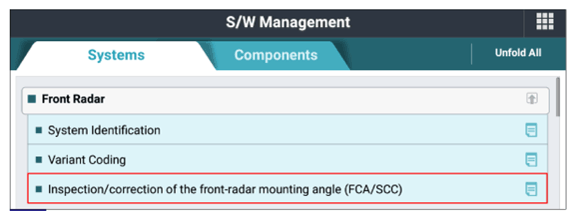

G14961022Courtesy of KIA MOTORS AMERICA, INC.

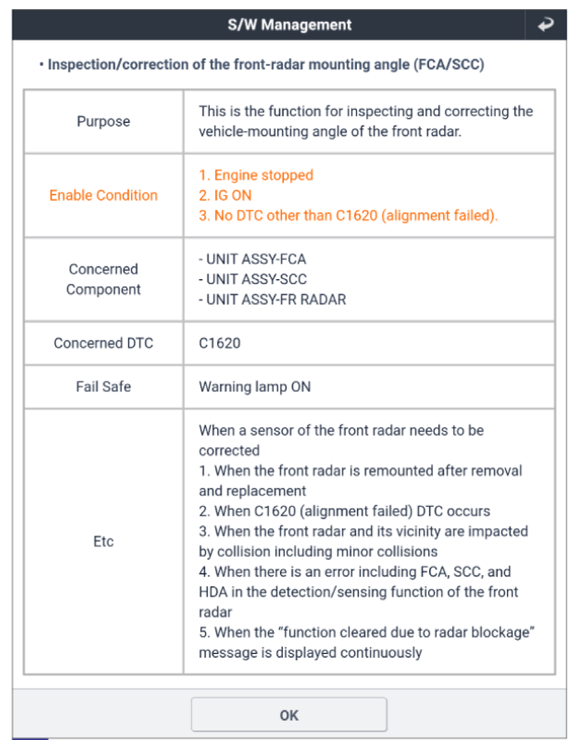

G14961023Courtesy of KIA MOTORS AMERICA, INC.

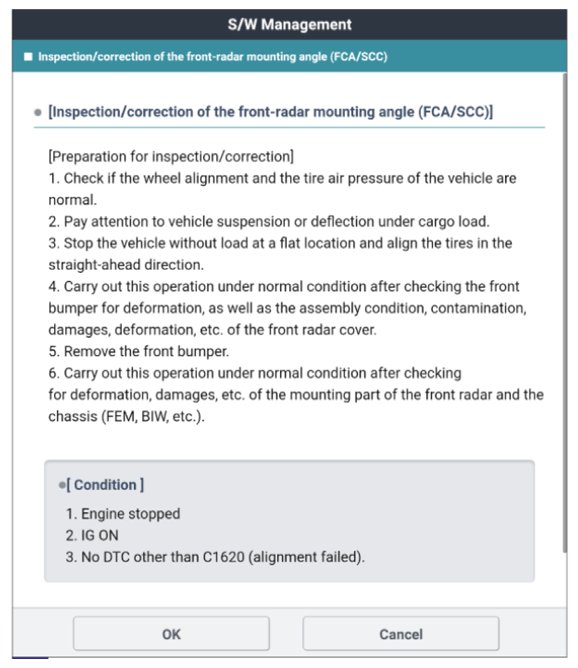

G14961024Courtesy of KIA MOTORS AMERICA, INC.

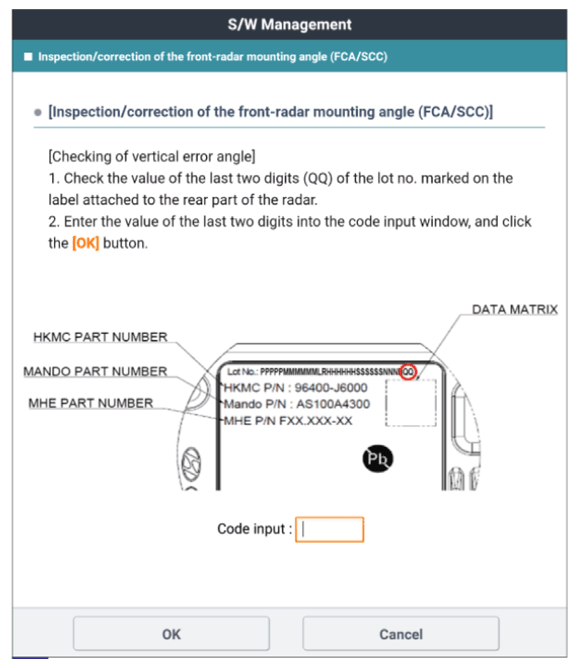

G14961025Courtesy of KIA MOTORS AMERICA, INC.

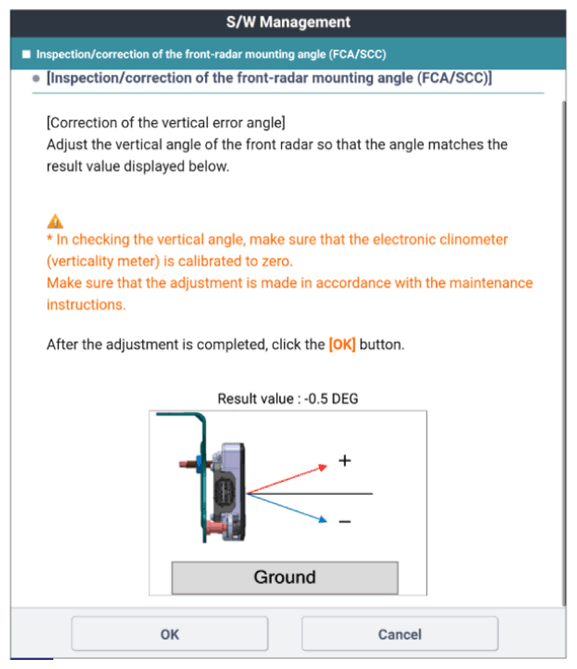

G14961026Courtesy of KIA MOTORS AMERICA, INC.

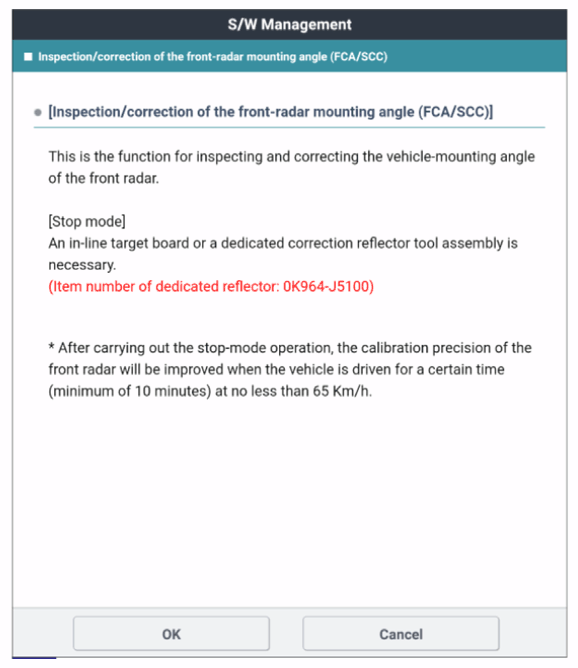

G14961027Courtesy of KIA MOTORS AMERICA, INC.

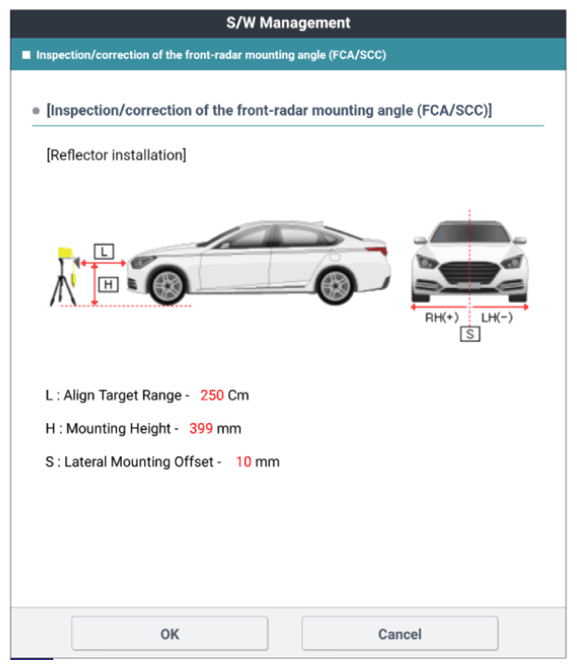

G14961028Courtesy of KIA MOTORS AMERICA, INC.

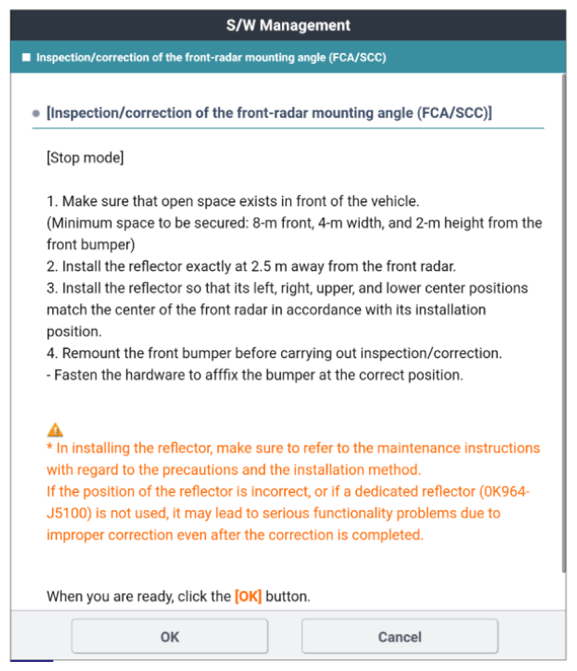

G14961029Courtesy of KIA MOTORS AMERICA, INC.

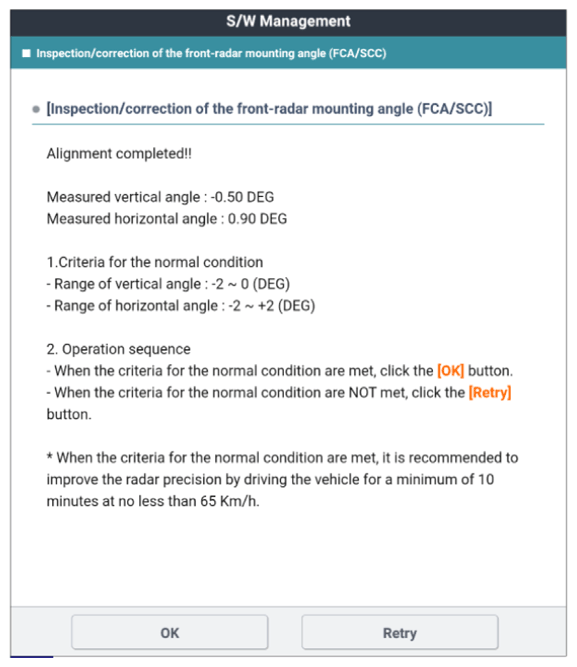

G14961030Courtesy of KIA MOTORS AMERICA, INC.
