Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * perform the "Variant Coding" and "Inspection/correction of the front-radar mounting angle (FCA/SCC)" on "Vehicle S/W Management", once FR_RDR ECU is replaced.
* Do not select the [Stop mode] in "Inspection/correction of the front-radar mounting angle (FCA/SCC)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 14
G14960923Courtesy of KIA MOTORS AMERICA, INC.

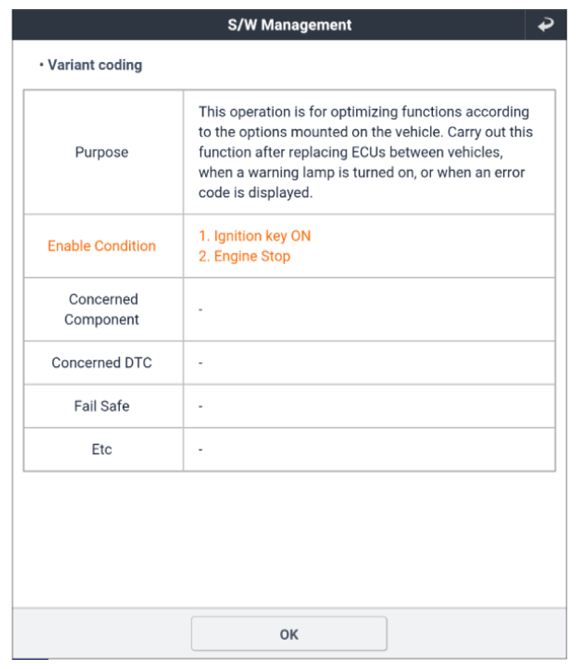

G14960924Courtesy of KIA MOTORS AMERICA, INC.

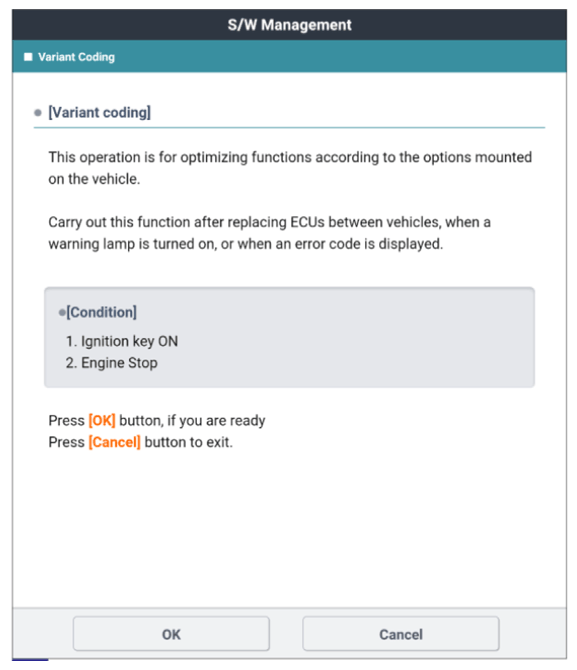

G14960925Courtesy of KIA MOTORS AMERICA, INC.

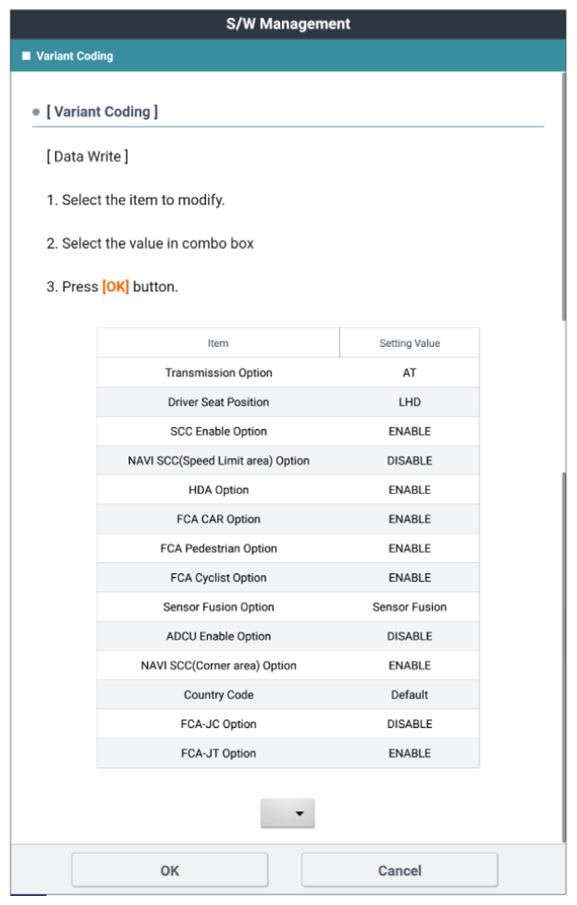

G14960926Courtesy of KIA MOTORS AMERICA, INC.

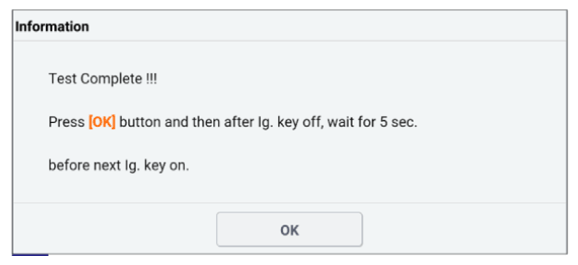

G14960927Courtesy of KIA MOTORS AMERICA, INC.

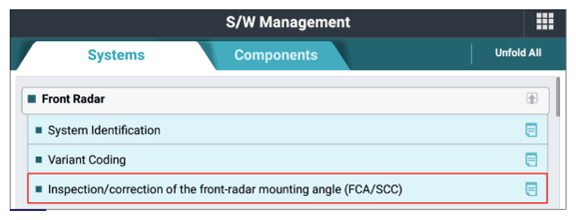

G14960928Courtesy of KIA MOTORS AMERICA, INC.

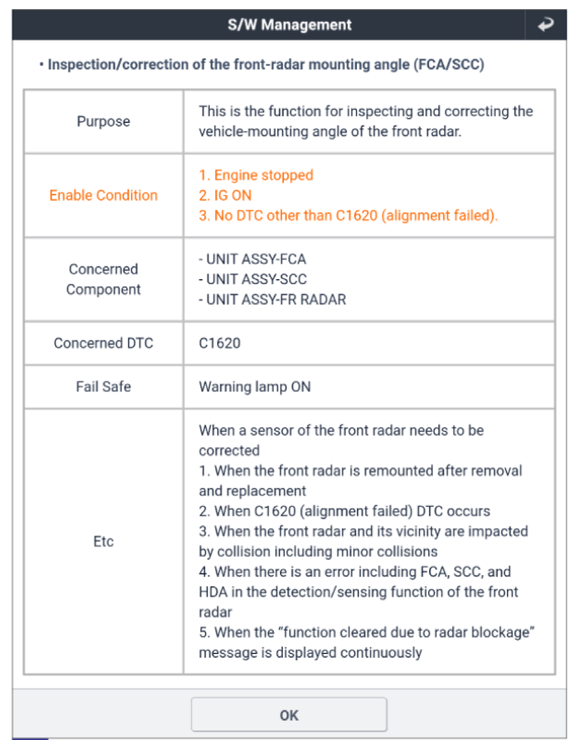

G14960929Courtesy of KIA MOTORS AMERICA, INC.

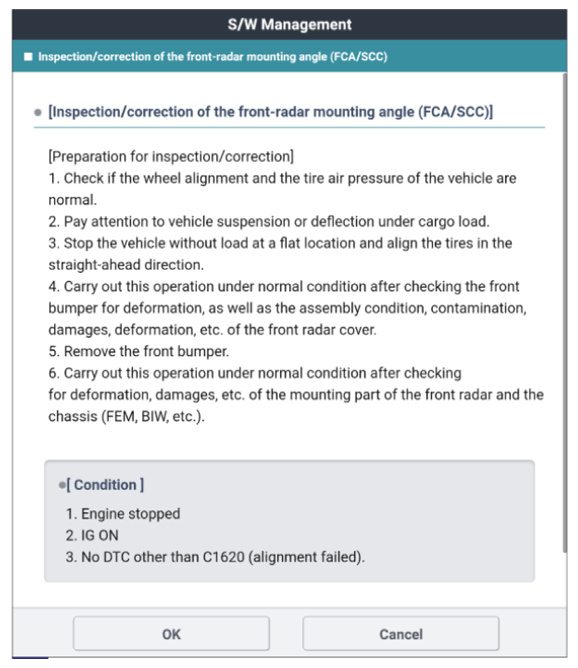

G14960930Courtesy of KIA MOTORS AMERICA, INC.

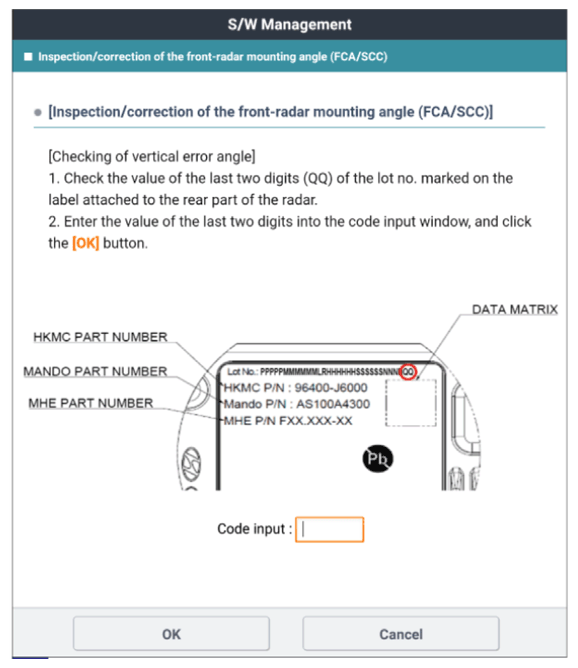

G14960931Courtesy of KIA MOTORS AMERICA, INC.

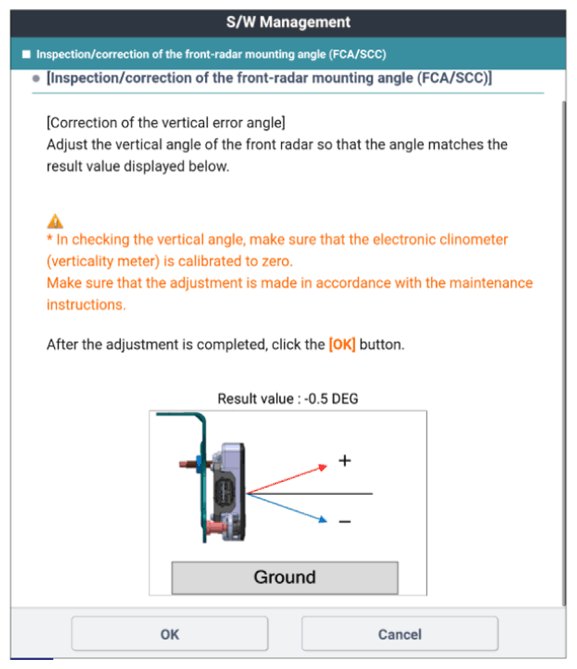

G14960932Courtesy of KIA MOTORS AMERICA, INC.

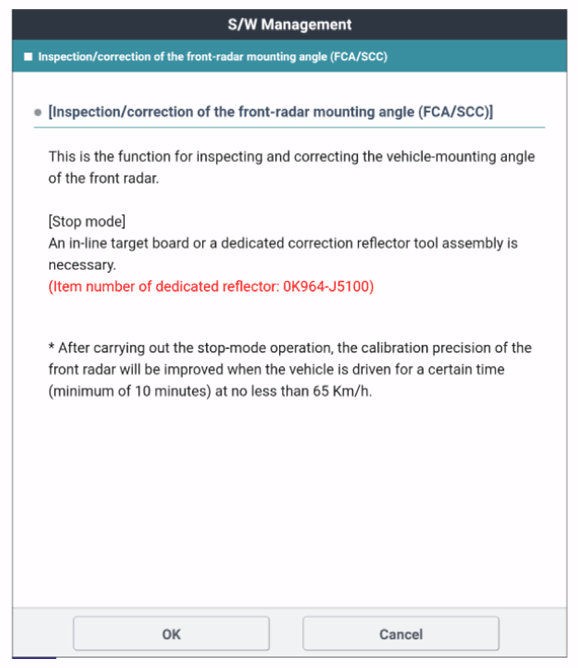

G14960933Courtesy of KIA MOTORS AMERICA, INC.

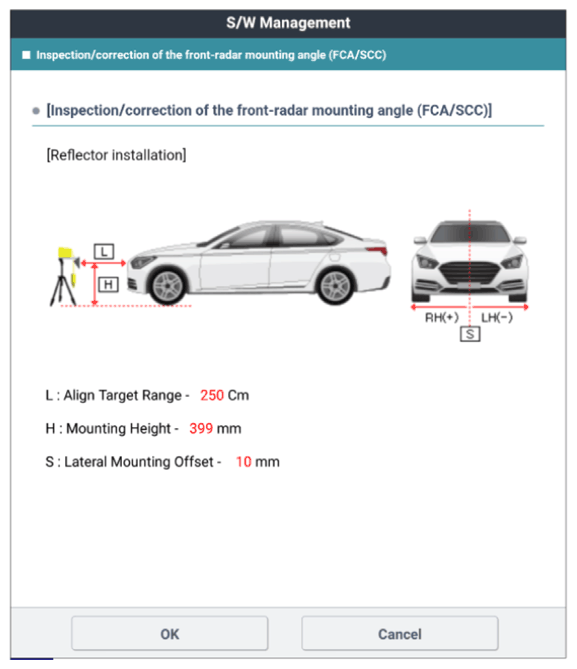

G14960934Courtesy of KIA MOTORS AMERICA, INC.

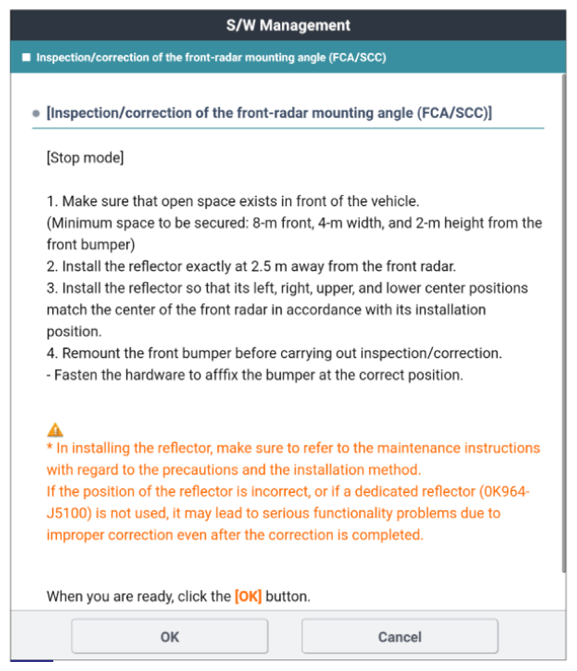

G14960935Courtesy of KIA MOTORS AMERICA, INC.

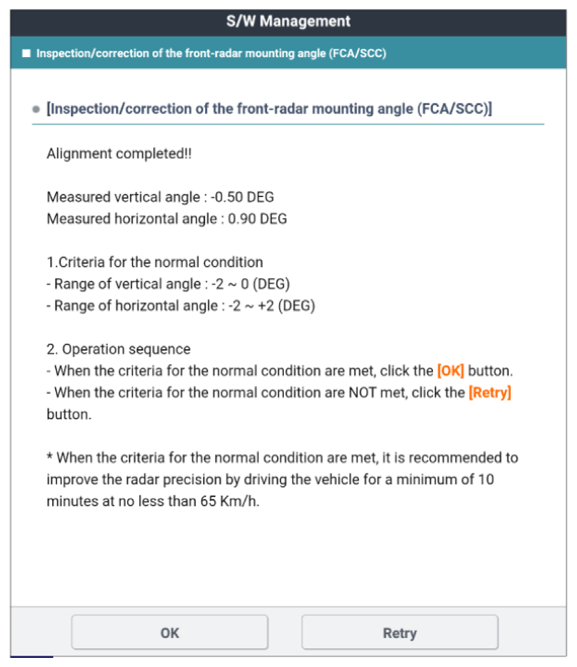

G14960936Courtesy of KIA MOTORS AMERICA, INC.
