Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * perform the "Variant Coding" and "Inspection/correction of the front-radar mounting angle (FCA/SCC)" on "Vehicle S/W Management", once FR_RDR ECU is replaced.
* Do not select the [Stop mode] in "Inspection/correction of the front-radar mounting angle (FCA/SCC)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 14
G14967002Courtesy of KIA MOTORS AMERICA, INC.

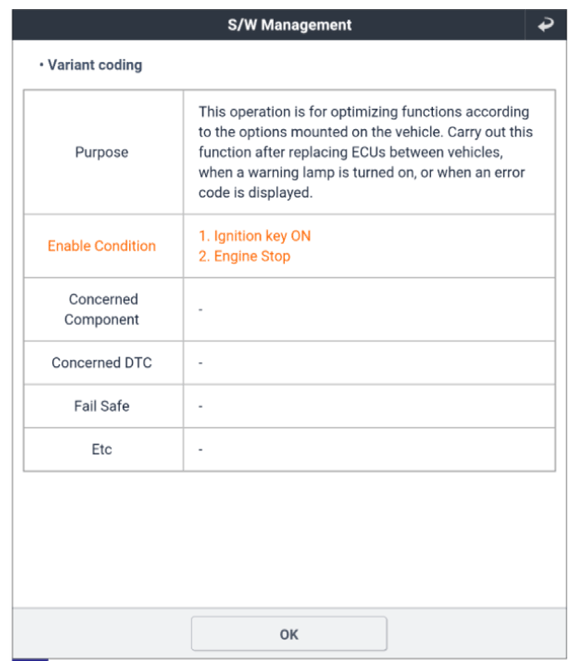

G14967003Courtesy of KIA MOTORS AMERICA, INC.

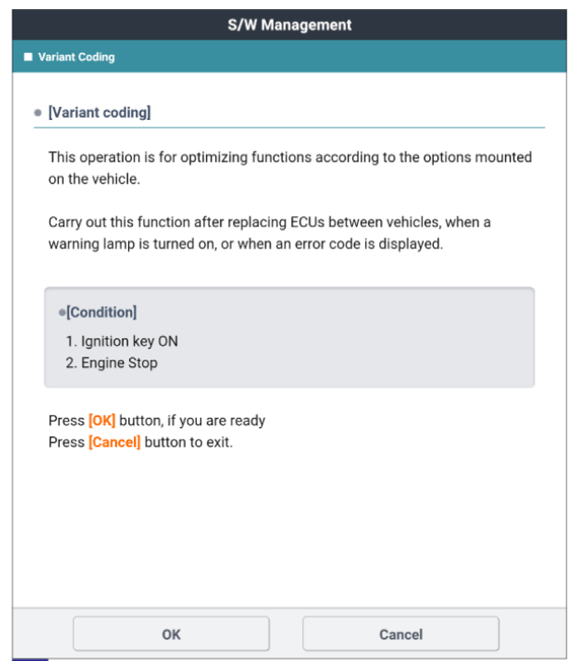

G14967004Courtesy of KIA MOTORS AMERICA, INC.

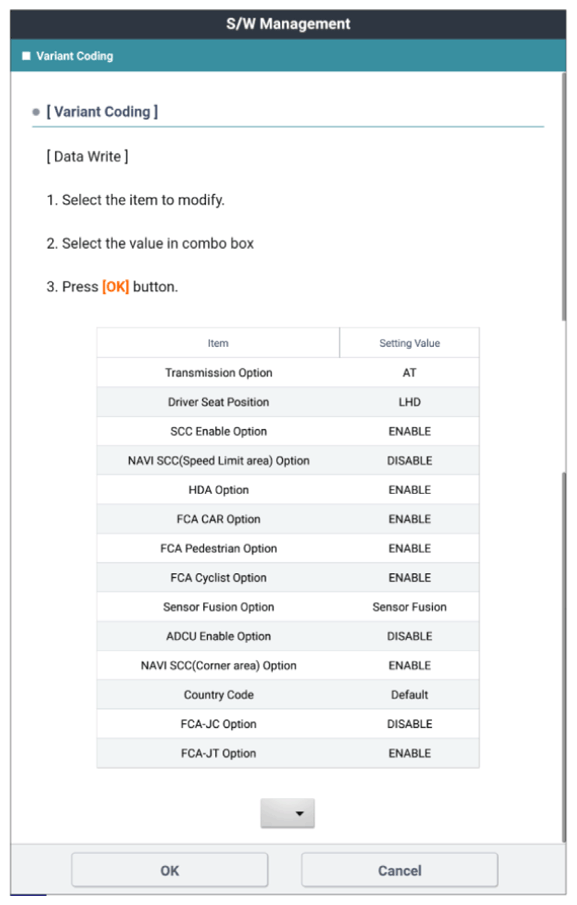

G14967005Courtesy of KIA MOTORS AMERICA, INC.

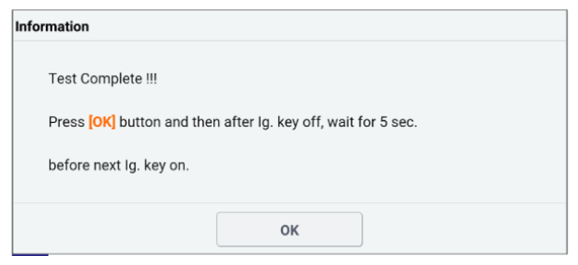

G14967006Courtesy of KIA MOTORS AMERICA, INC.

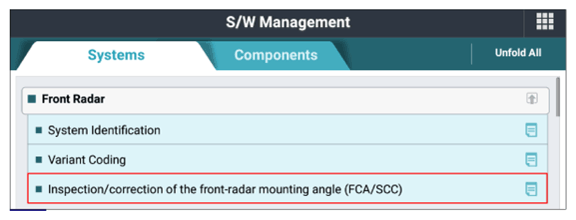

G14967007Courtesy of KIA MOTORS AMERICA, INC.

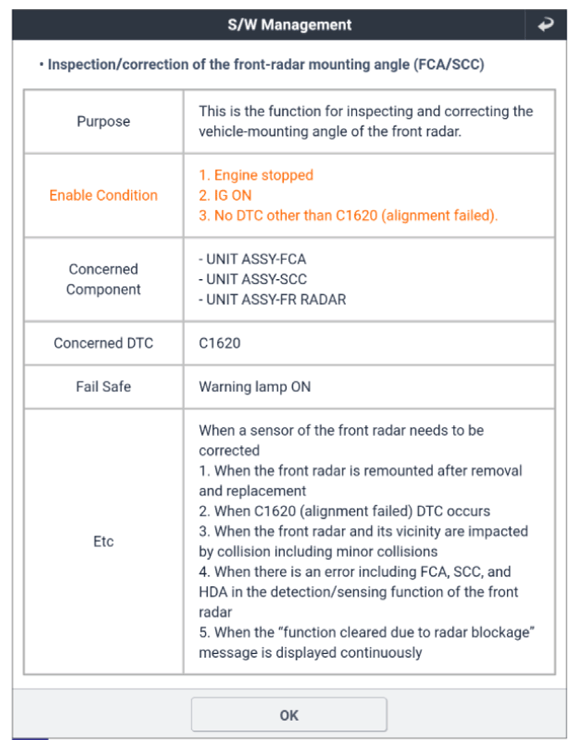

G14967008Courtesy of KIA MOTORS AMERICA, INC.

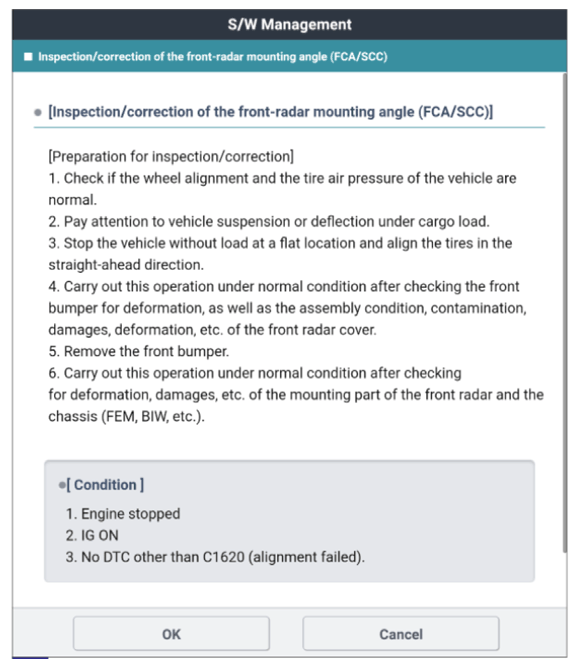

G14967009Courtesy of KIA MOTORS AMERICA, INC.

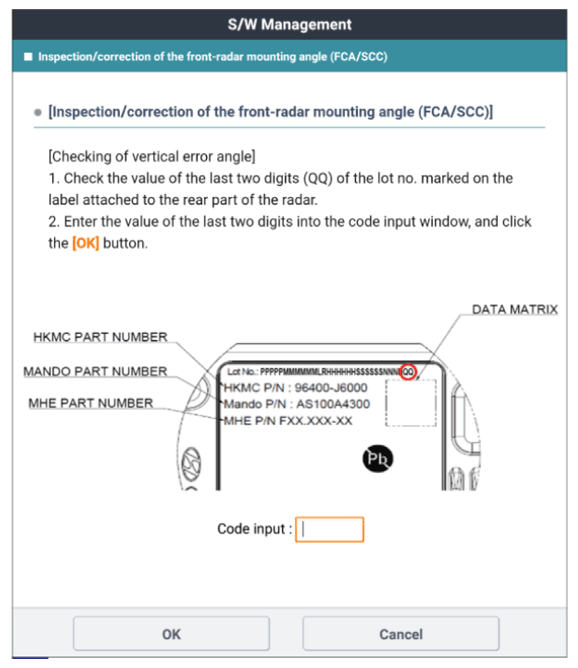

G14967010Courtesy of KIA MOTORS AMERICA, INC.

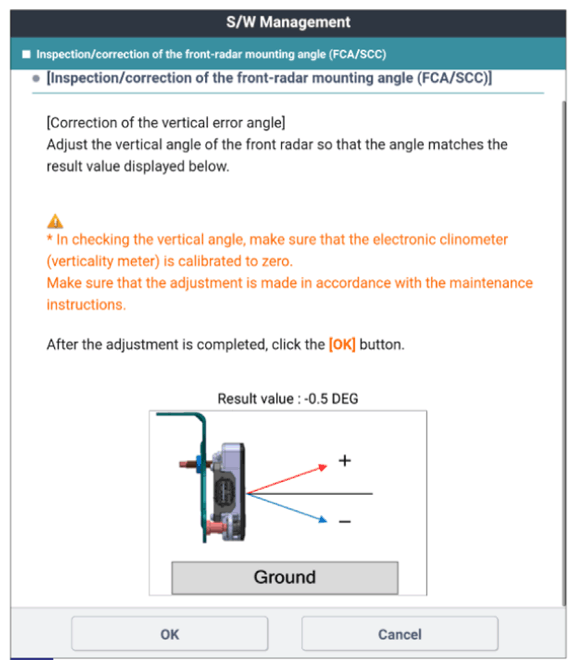

G14967011Courtesy of KIA MOTORS AMERICA, INC.

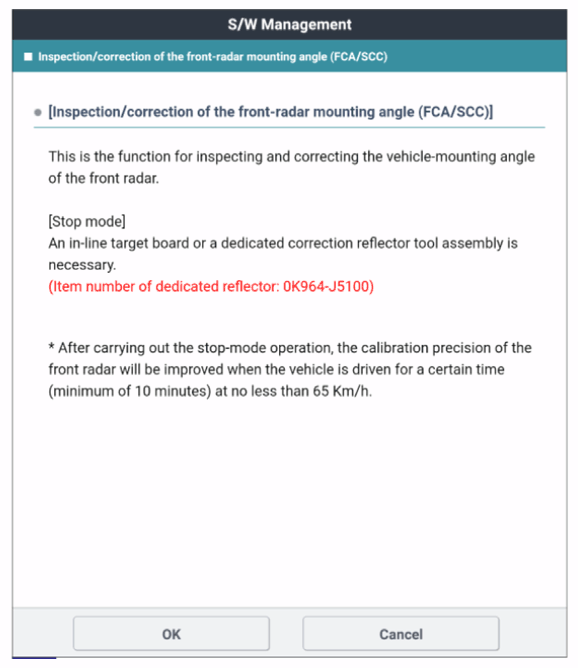

G14967012Courtesy of KIA MOTORS AMERICA, INC.

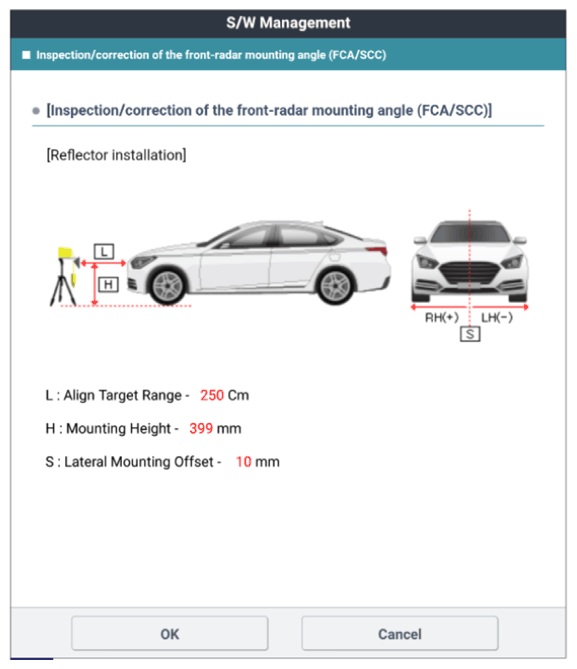

G14967013Courtesy of KIA MOTORS AMERICA, INC.

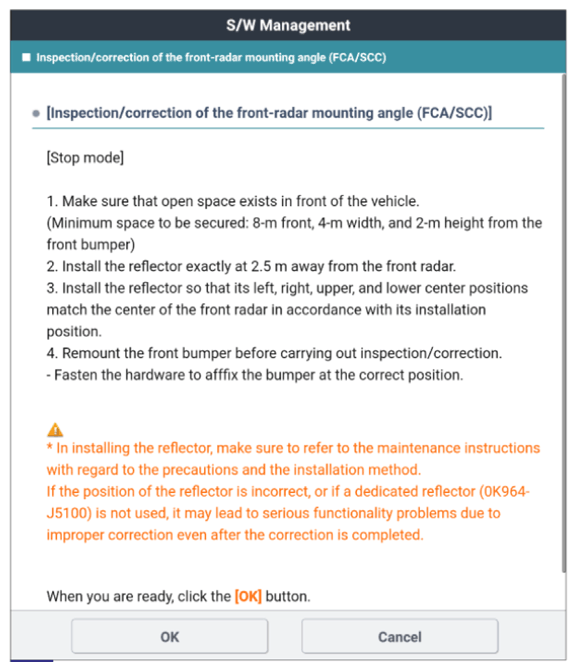

G14967014Courtesy of KIA MOTORS AMERICA, INC.

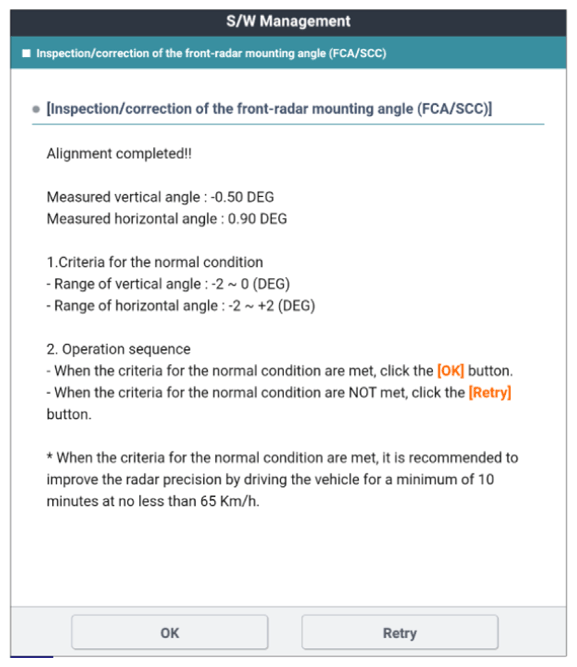

G14967015Courtesy of KIA MOTORS AMERICA, INC.
