Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * perform the "Variant Coding" and "Inspection/correction of the front-radar mounting angle (FCA/SCC)" on "Vehicle S/W Management", once FR_RDR ECU is replaced.
* Do not select the [Stop mode] in "Inspection/correction of the front-radar mounting angle (FCA/SCC)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 14
G14966986Courtesy of KIA MOTORS AMERICA, INC.

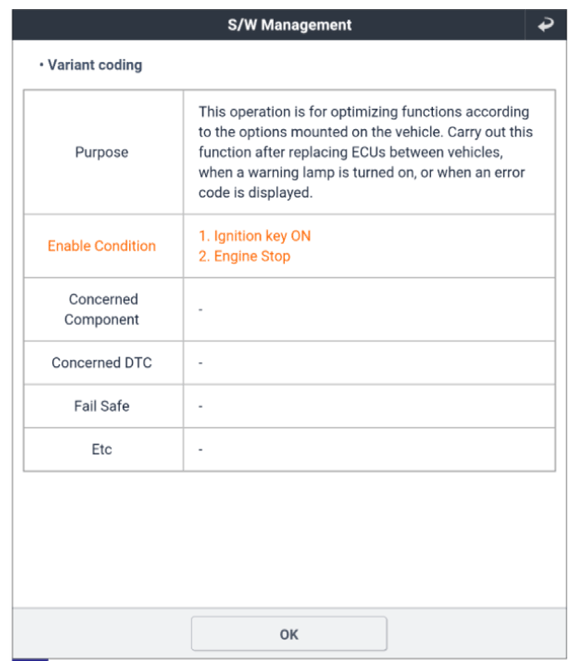

G14966987Courtesy of KIA MOTORS AMERICA, INC.

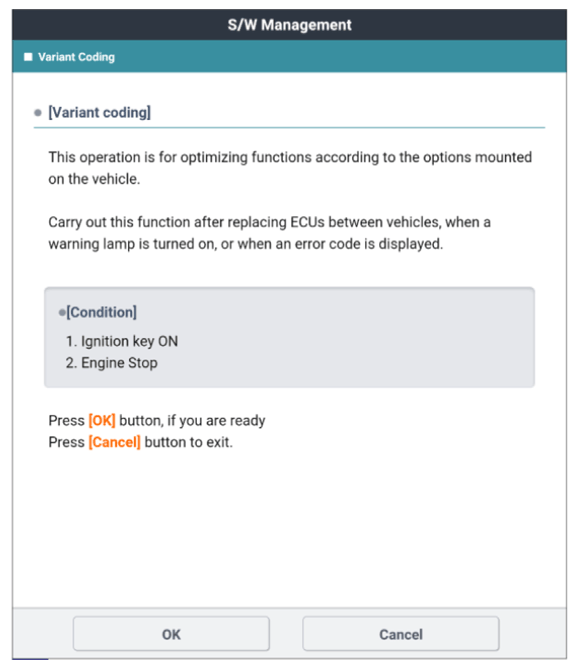

G14966988Courtesy of KIA MOTORS AMERICA, INC.

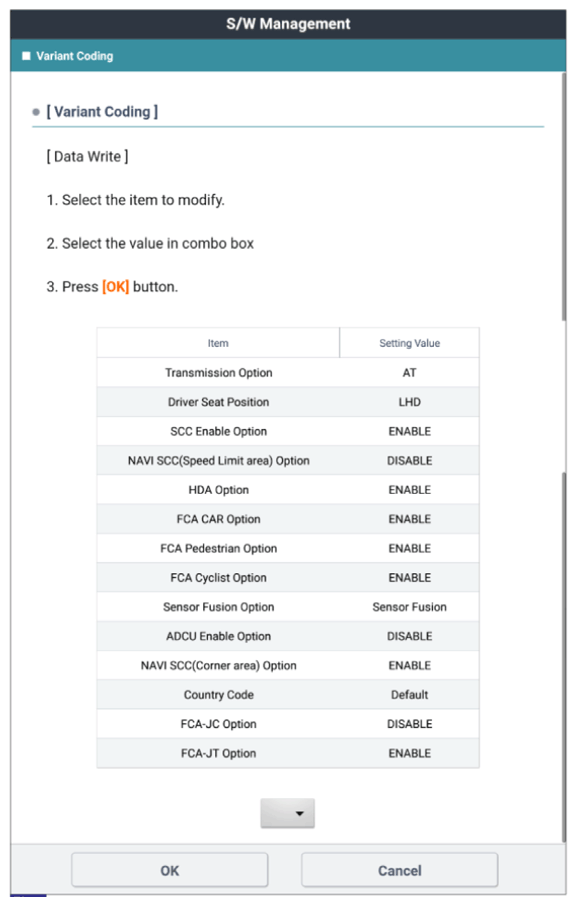

G14966989Courtesy of KIA MOTORS AMERICA, INC.

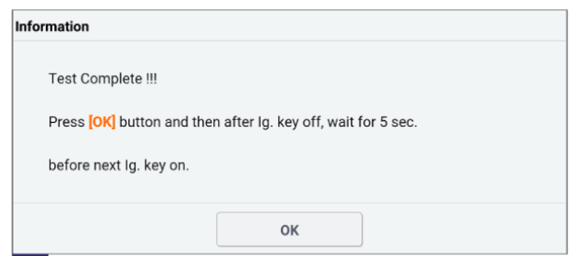

G14966990Courtesy of KIA MOTORS AMERICA, INC.

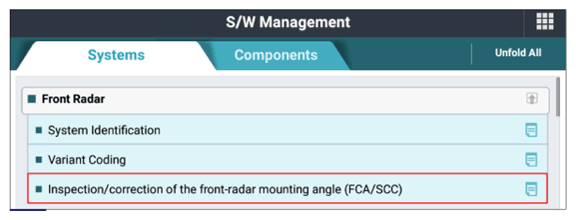

G14966991Courtesy of KIA MOTORS AMERICA, INC.

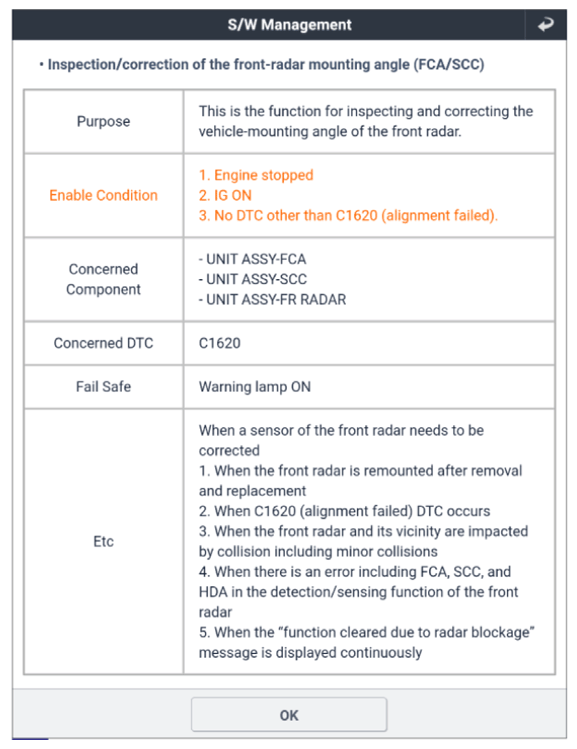

G14966992Courtesy of KIA MOTORS AMERICA, INC.

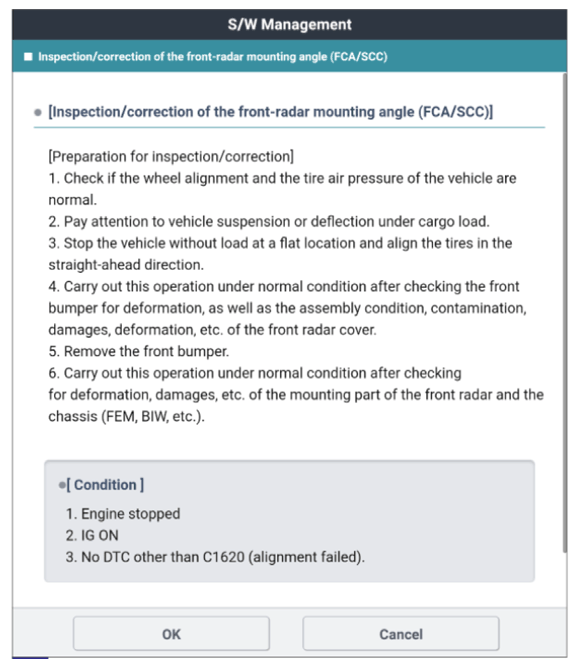

G14966993Courtesy of KIA MOTORS AMERICA, INC.

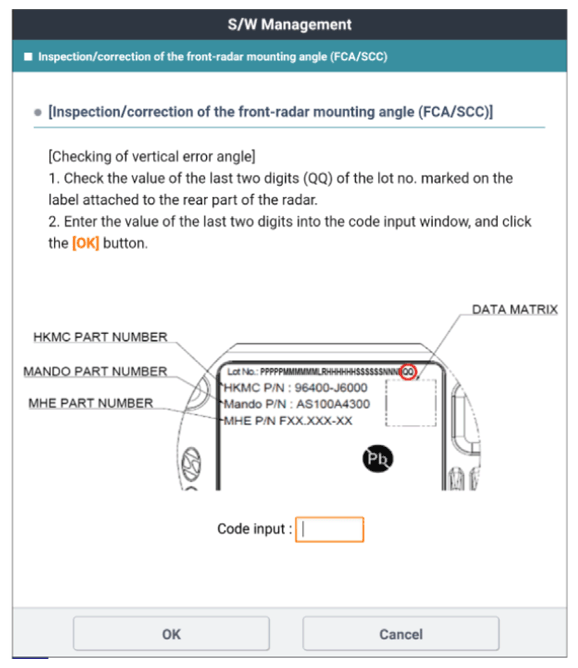

G14966994Courtesy of KIA MOTORS AMERICA, INC.

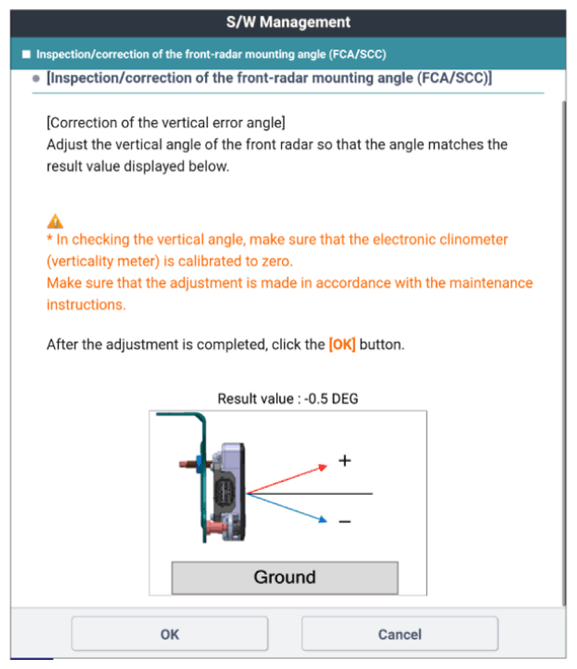

G14966995Courtesy of KIA MOTORS AMERICA, INC.

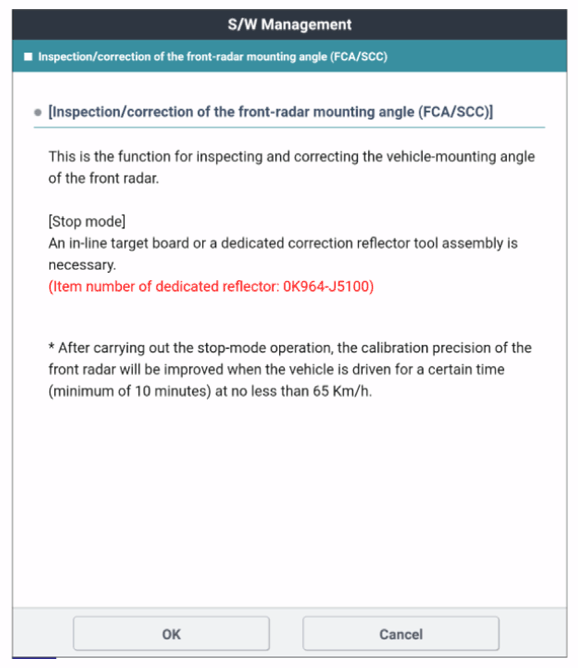

G14966996Courtesy of KIA MOTORS AMERICA, INC.

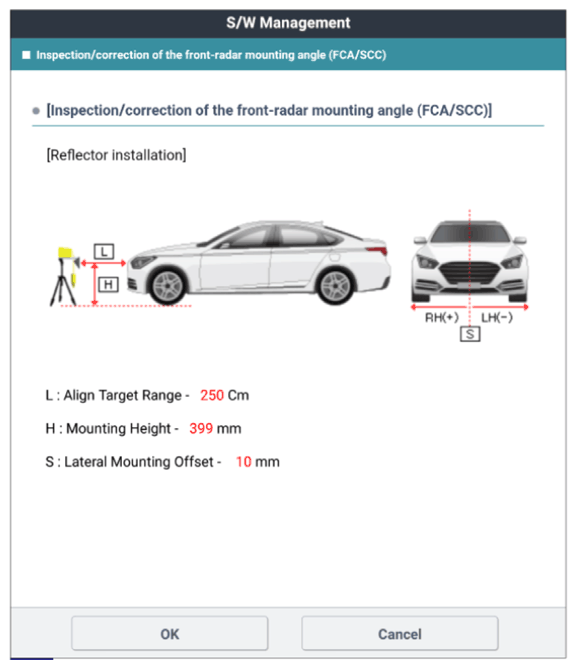

G14966997Courtesy of KIA MOTORS AMERICA, INC.

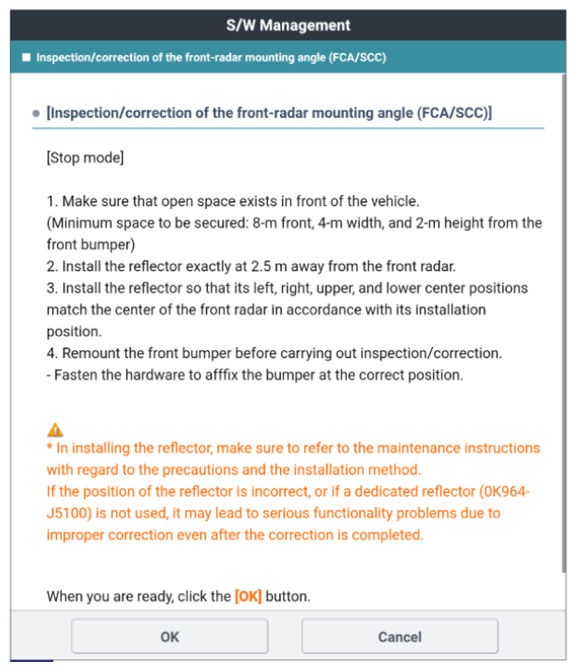

G14966998Courtesy of KIA MOTORS AMERICA, INC.

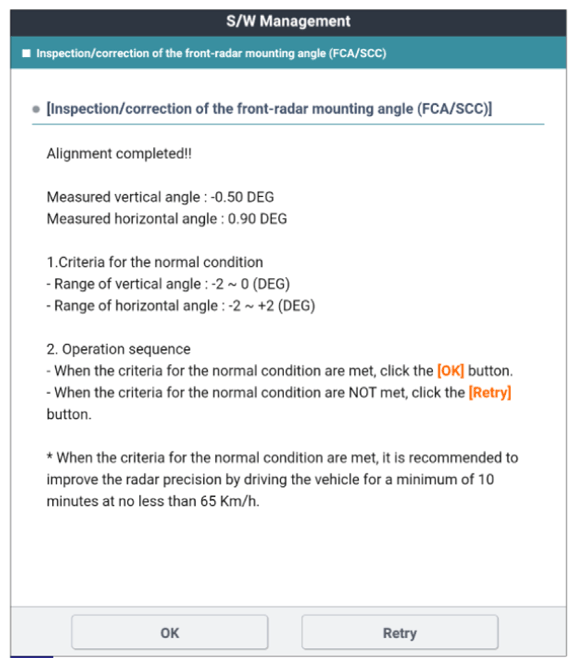

G14966999Courtesy of KIA MOTORS AMERICA, INC.
