Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * perform the "Variant Coding" and "Inspection/correction of the front-radar mounting angle (FCA/SCC)" on "Vehicle S/W Management", once FR_RDR ECU is replaced.
* Do not select the [Stop mode] in "Inspection/correction of the front-radar mounting angle (FCA/SCC)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 14
G14966925Courtesy of KIA MOTORS AMERICA, INC.

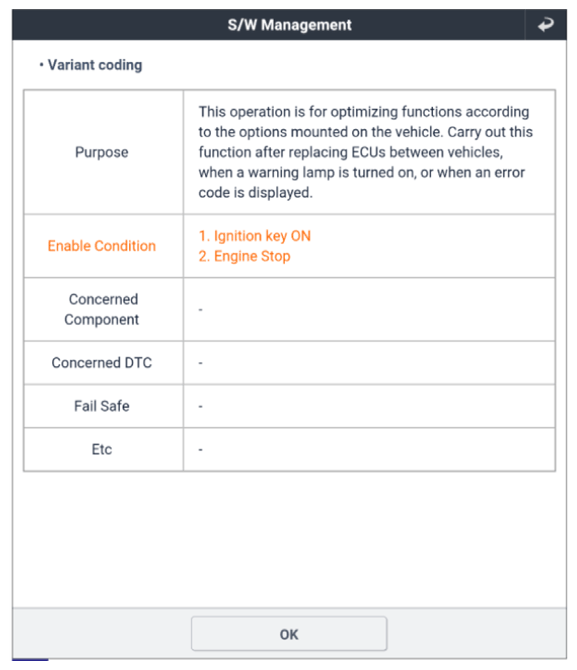

G14966926Courtesy of KIA MOTORS AMERICA, INC.

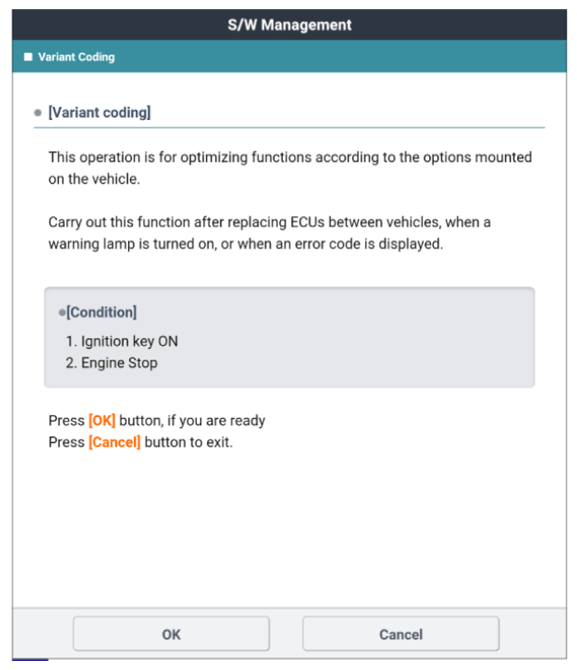

G14966927Courtesy of KIA MOTORS AMERICA, INC.

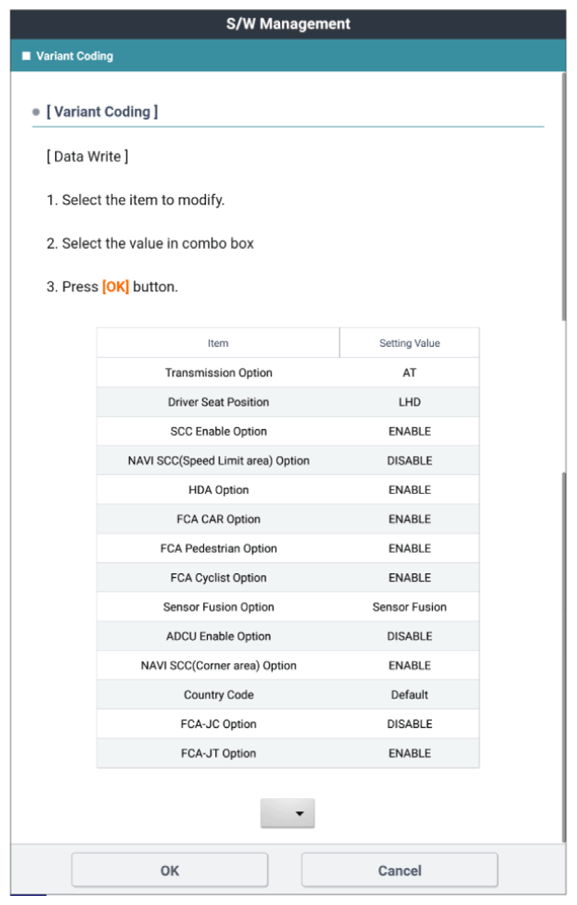

G14966928Courtesy of KIA MOTORS AMERICA, INC.

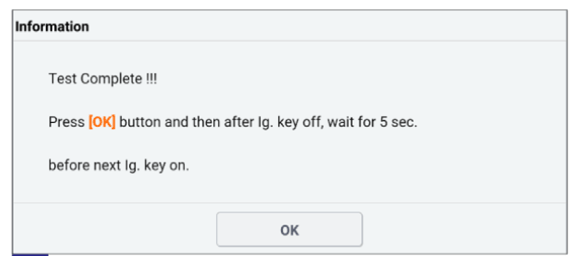

G14966929Courtesy of KIA MOTORS AMERICA, INC.

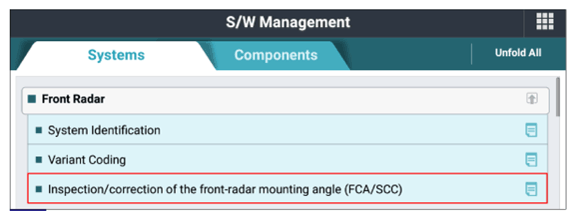

G14966930Courtesy of KIA MOTORS AMERICA, INC.

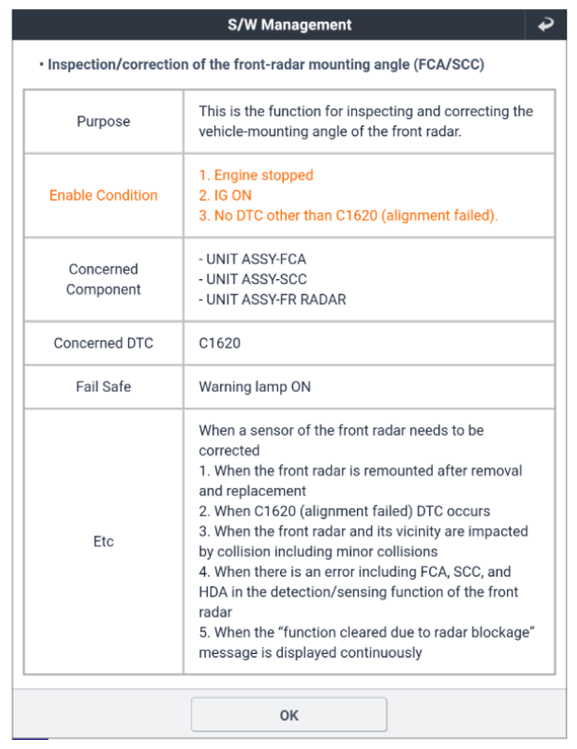

G14966931Courtesy of KIA MOTORS AMERICA, INC.

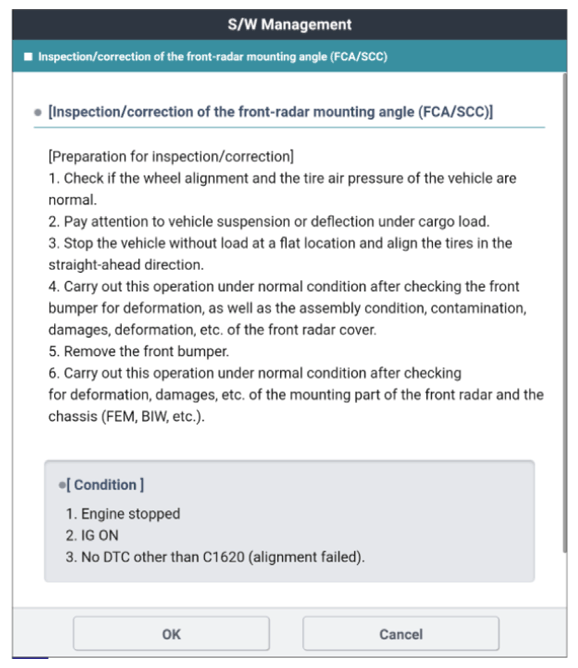

G14966932Courtesy of KIA MOTORS AMERICA, INC.

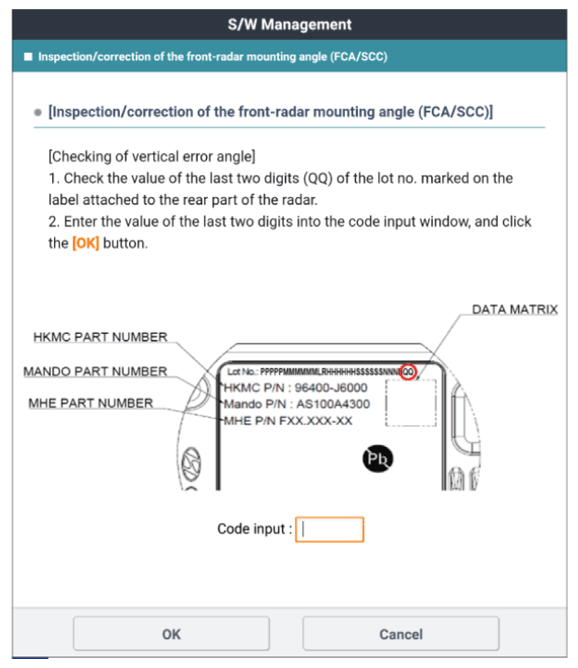

G14966933Courtesy of KIA MOTORS AMERICA, INC.

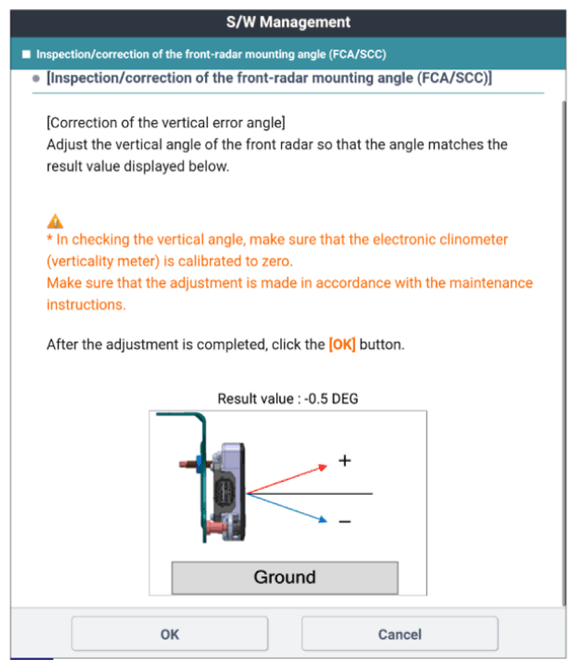

G14966934Courtesy of KIA MOTORS AMERICA, INC.

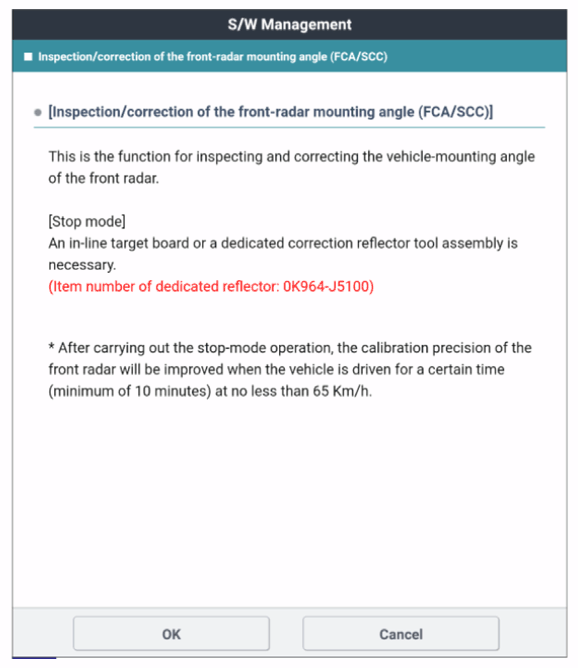

G14966935Courtesy of KIA MOTORS AMERICA, INC.

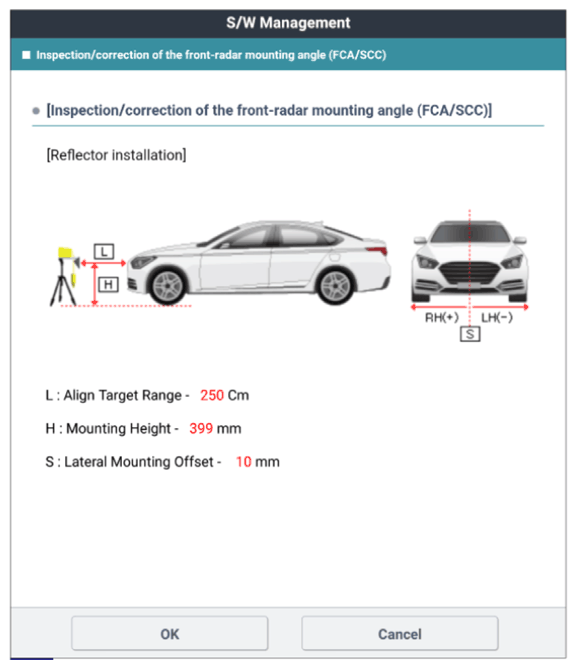

G14966936Courtesy of KIA MOTORS AMERICA, INC.

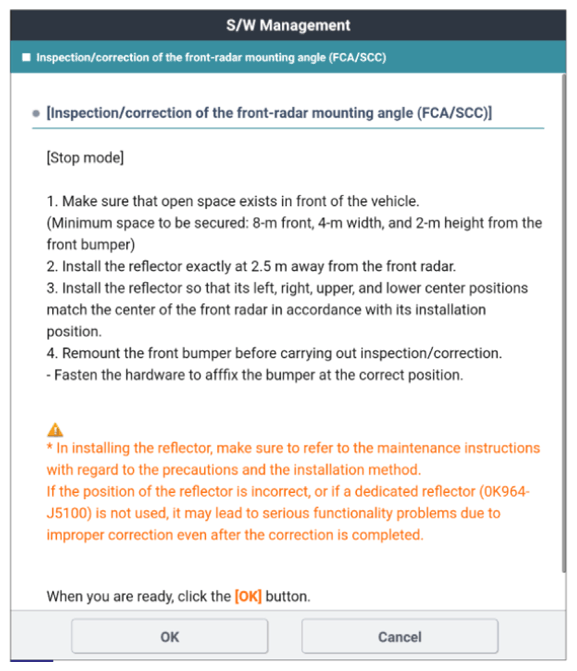

G14966937Courtesy of KIA MOTORS AMERICA, INC.

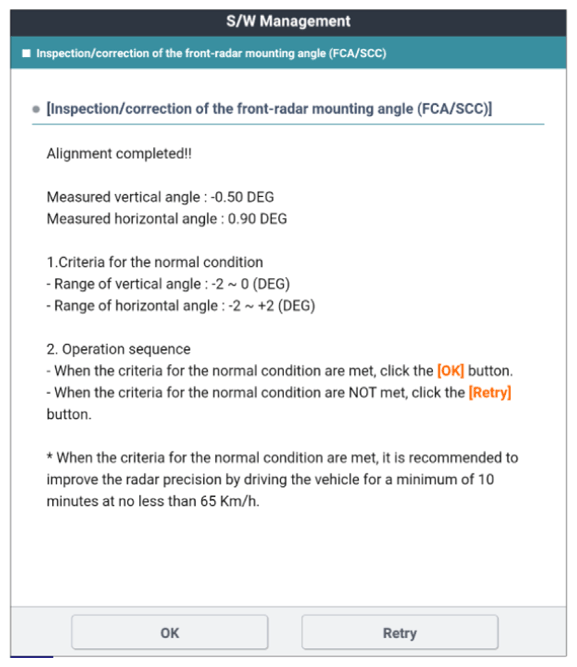

G14966938Courtesy of KIA MOTORS AMERICA, INC.
