Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * perform the "Variant Coding" and "Inspection/correction of the front-radar mounting angle (FCA/SCC)" on "Vehicle S/W Management", once FR_RDR ECU is replaced.
* Do not select the [Stop mode] in "Inspection/correction of the front-radar mounting angle (FCA/SCC)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 14
G14966907Courtesy of KIA MOTORS AMERICA, INC.

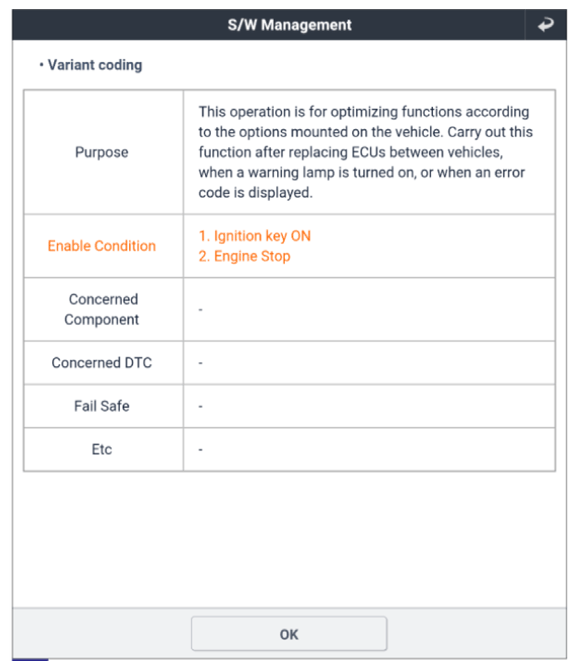

G14966908Courtesy of KIA MOTORS AMERICA, INC.

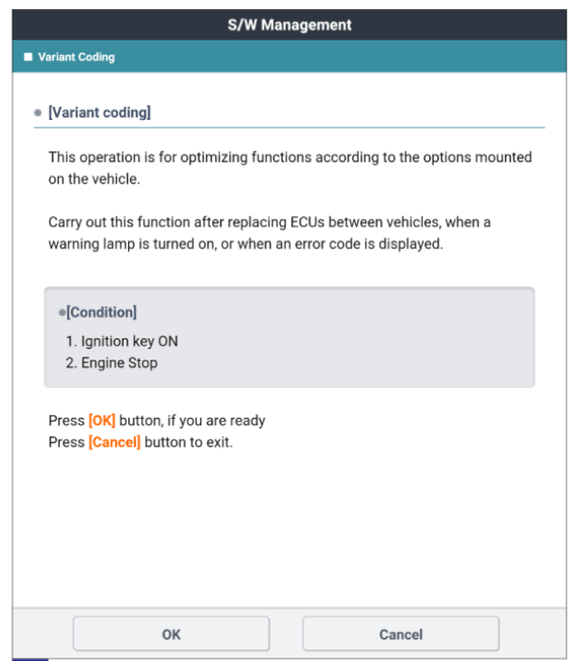

G14966909Courtesy of KIA MOTORS AMERICA, INC.

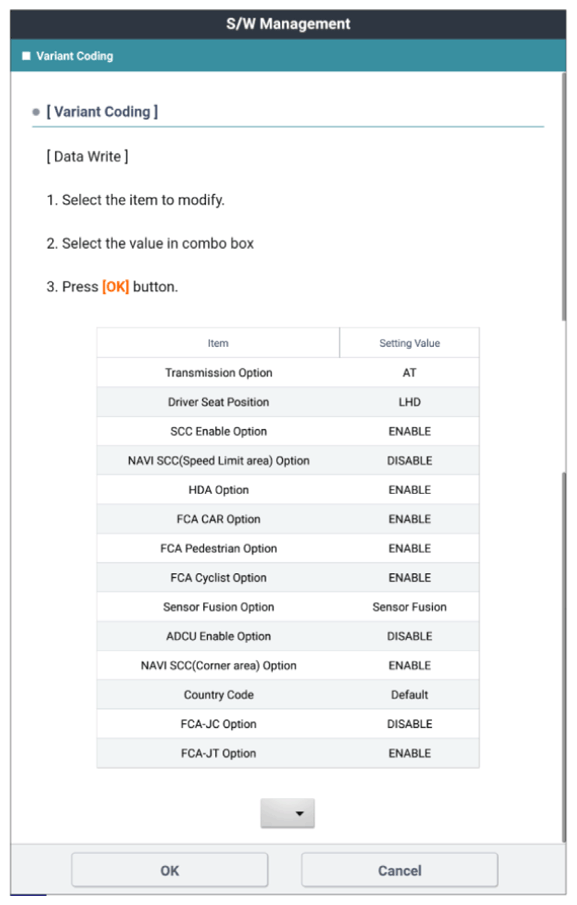

G14966910Courtesy of KIA MOTORS AMERICA, INC.

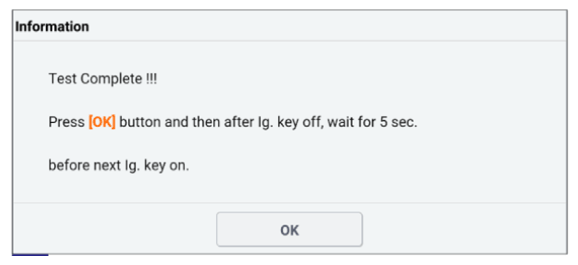

G14966911Courtesy of KIA MOTORS AMERICA, INC.

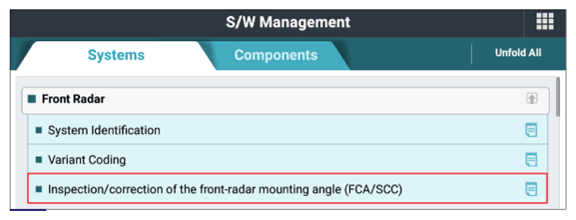

G14966912Courtesy of KIA MOTORS AMERICA, INC.

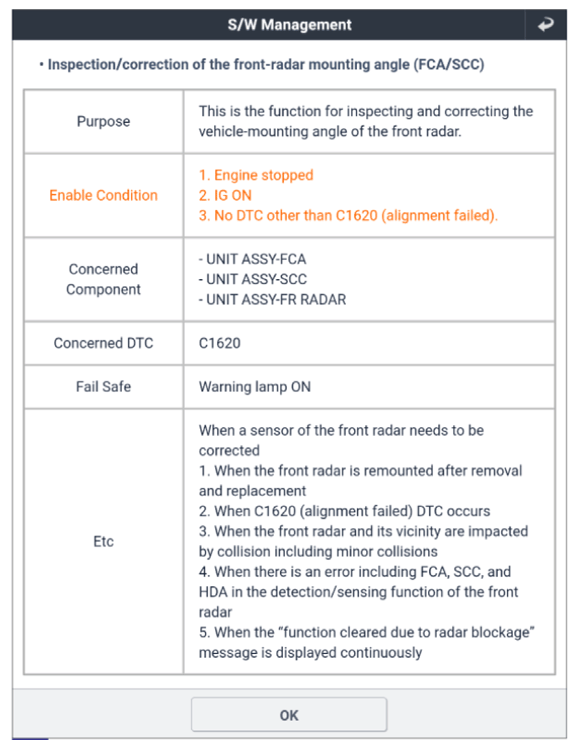

G14966913Courtesy of KIA MOTORS AMERICA, INC.

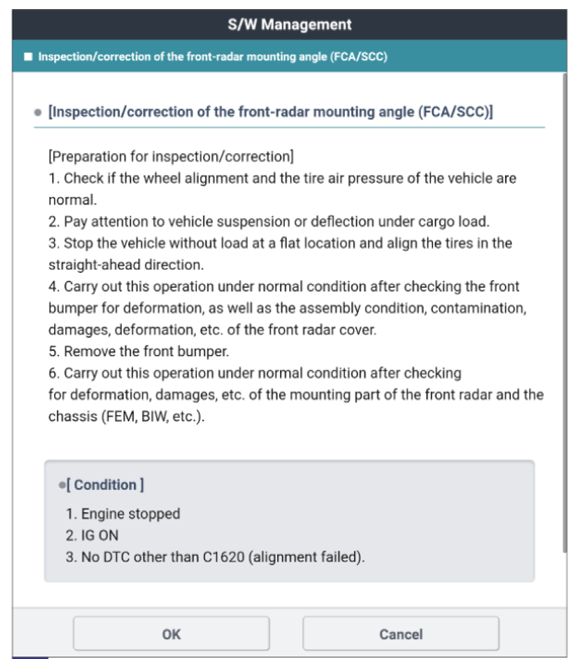

G14966914Courtesy of KIA MOTORS AMERICA, INC.

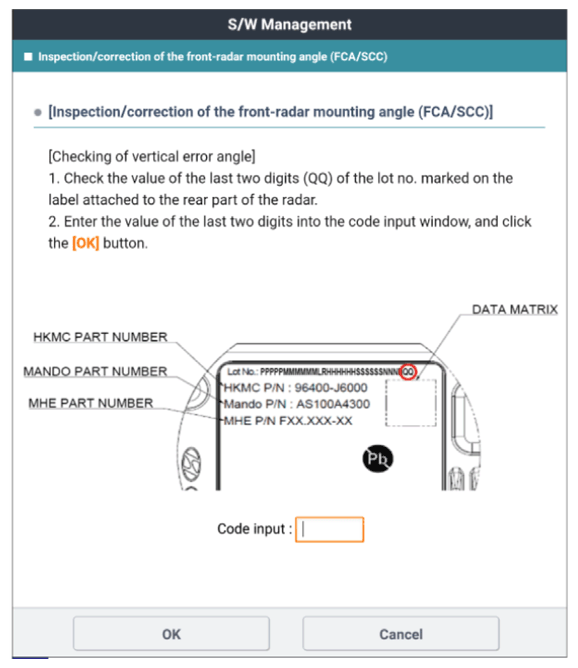

G14966915Courtesy of KIA MOTORS AMERICA, INC.

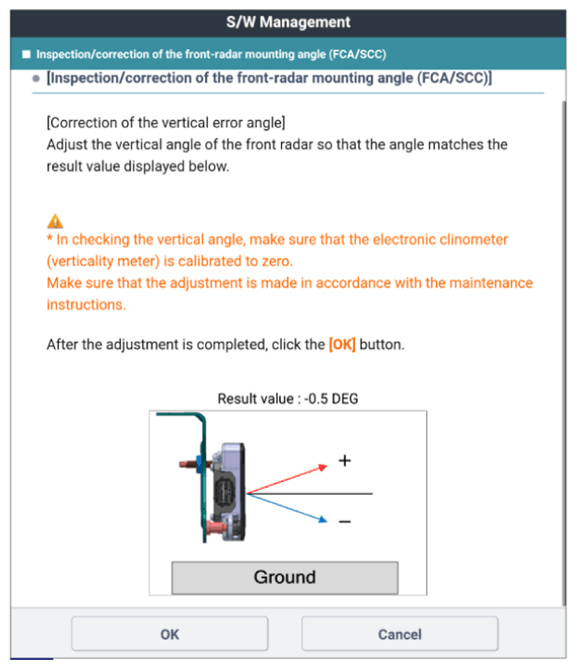

G14966916Courtesy of KIA MOTORS AMERICA, INC.

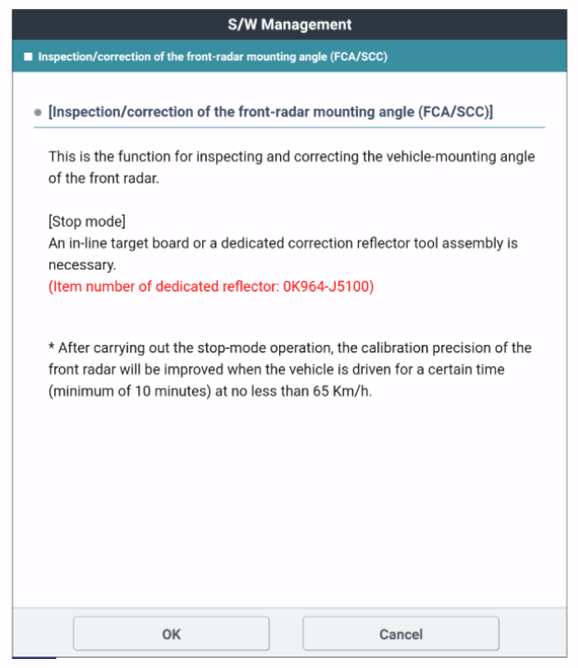

G14966917Courtesy of KIA MOTORS AMERICA, INC.

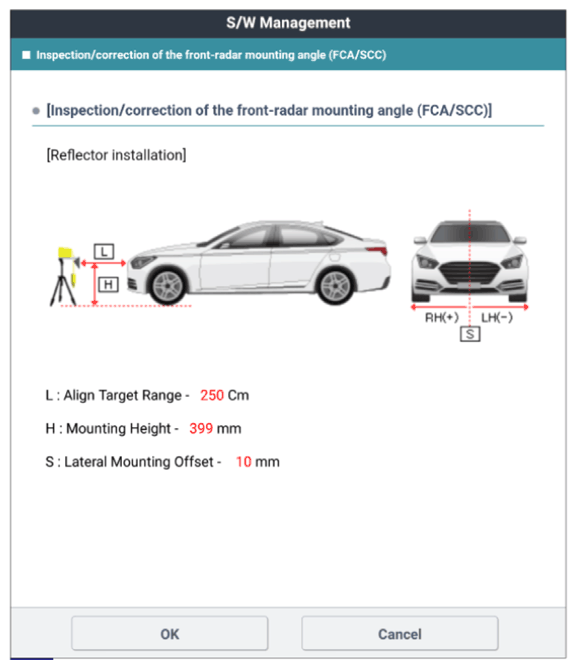

G14966918Courtesy of KIA MOTORS AMERICA, INC.

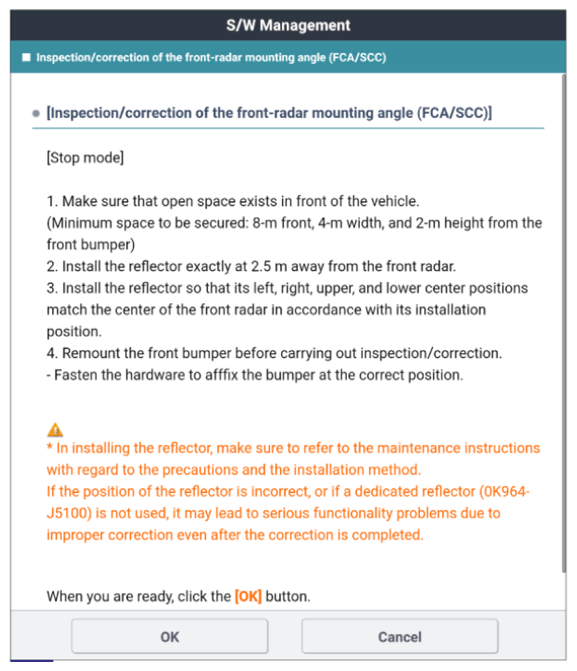

G14966919Courtesy of KIA MOTORS AMERICA, INC.

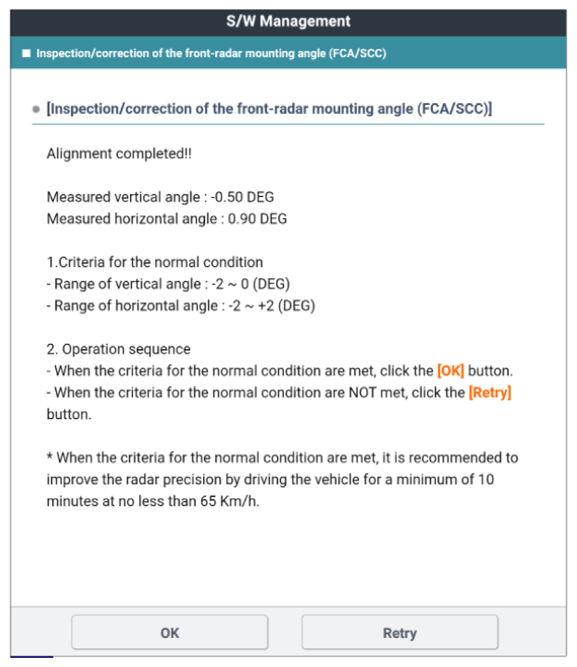

G14966920Courtesy of KIA MOTORS AMERICA, INC.
