Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * perform the "Variant Coding" and "Inspection/correction of the front-radar mounting angle (FCA/SCC)" on "Vehicle S/W Management", once FR_RDR ECU is replaced.
* Do not select the [Stop mode] in "Inspection/correction of the front-radar mounting angle (FCA/SCC)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 14

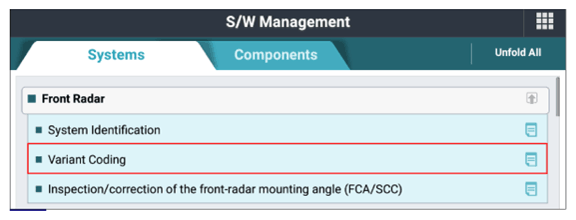

G14966889Courtesy of KIA MOTORS AMERICA, INC.

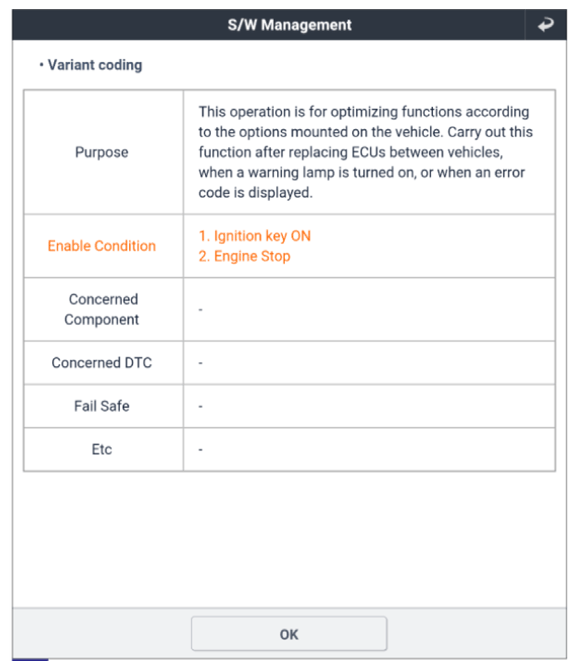

G14966890Courtesy of KIA MOTORS AMERICA, INC.
G14966891Courtesy of KIA MOTORS AMERICA, INC.

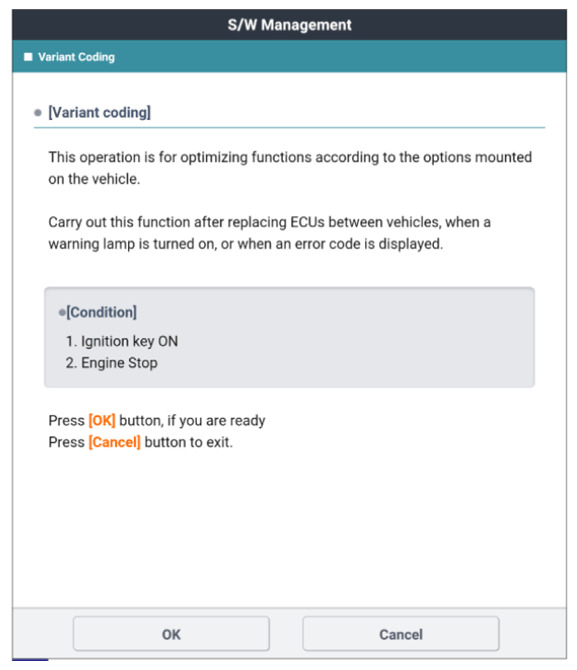

G14966892Courtesy of KIA MOTORS AMERICA, INC.

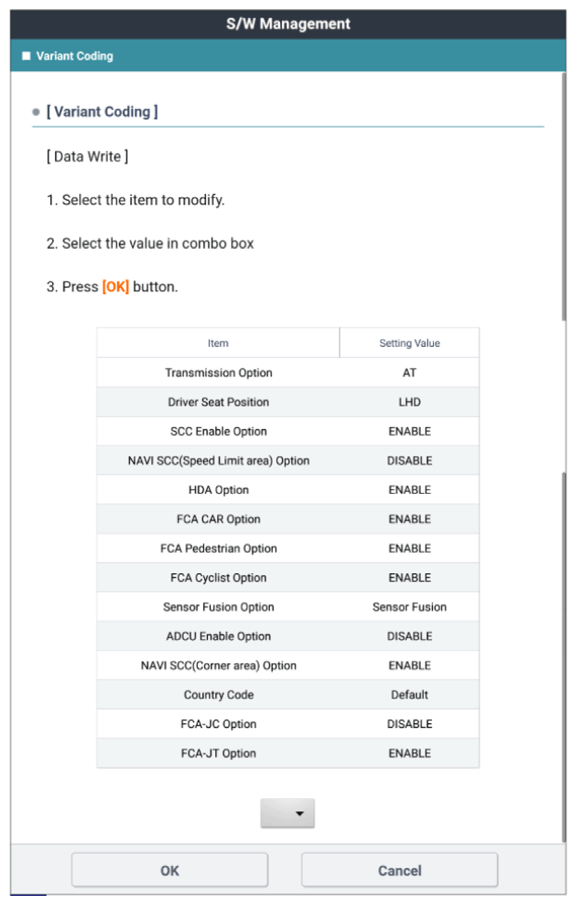

G14966893Courtesy of KIA MOTORS AMERICA, INC.

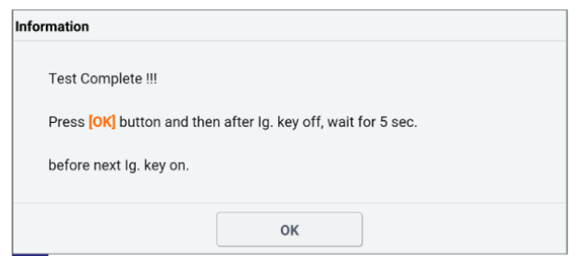

G14966894Courtesy of KIA MOTORS AMERICA, INC.

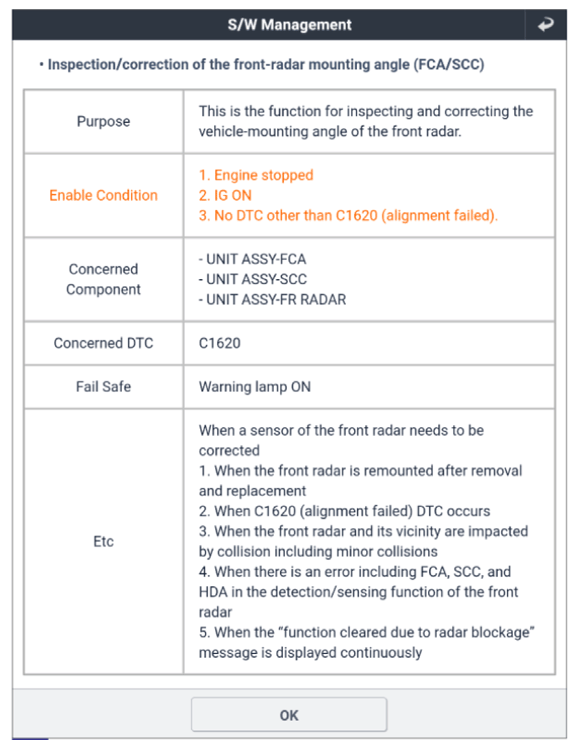

G14966895Courtesy of KIA MOTORS AMERICA, INC.

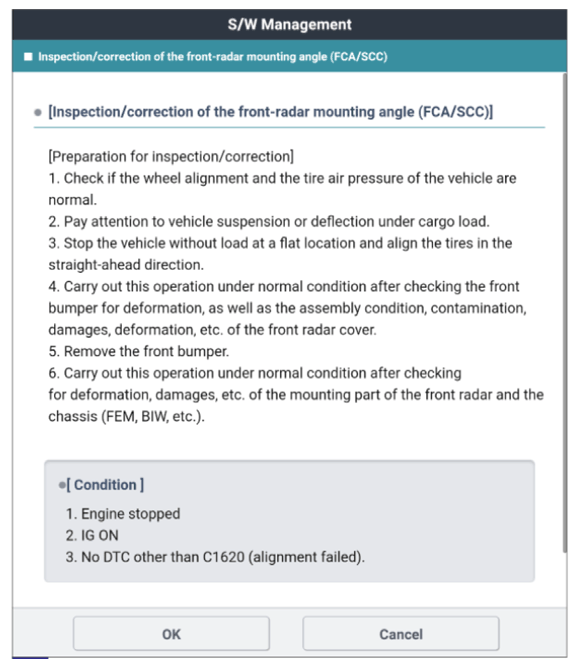

G14966896Courtesy of KIA MOTORS AMERICA, INC.

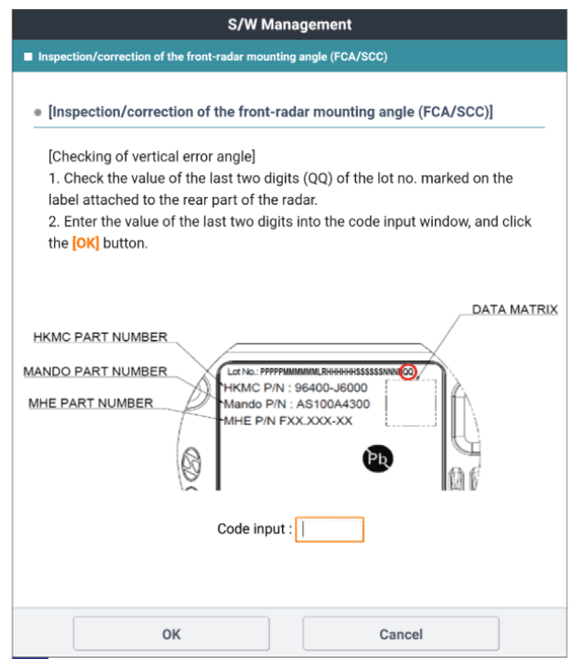

G14966897Courtesy of KIA MOTORS AMERICA, INC.
G14966898Courtesy of KIA MOTORS AMERICA, INC.

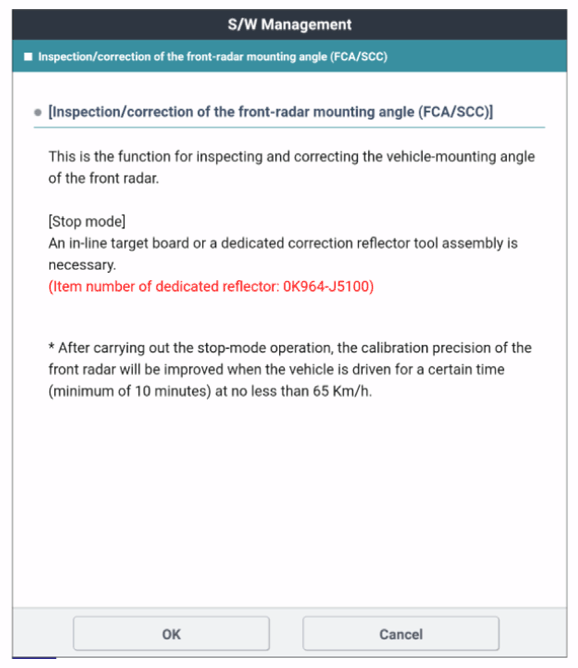

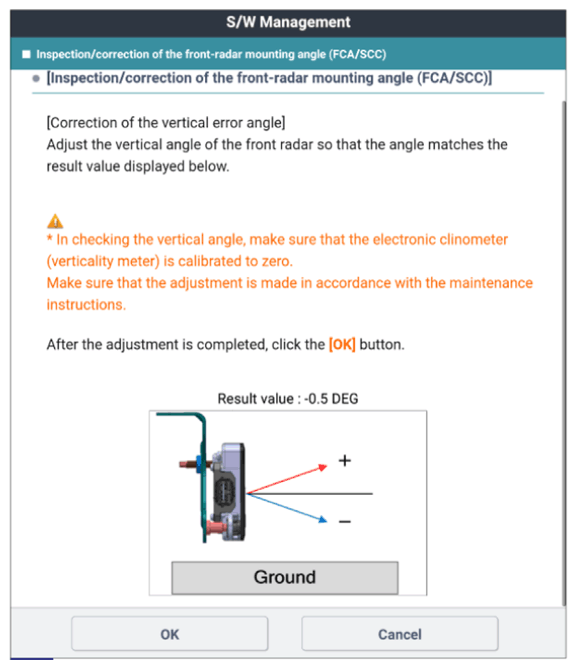

G14966899Courtesy of KIA MOTORS AMERICA, INC.
G14966900Courtesy of KIA MOTORS AMERICA, INC.

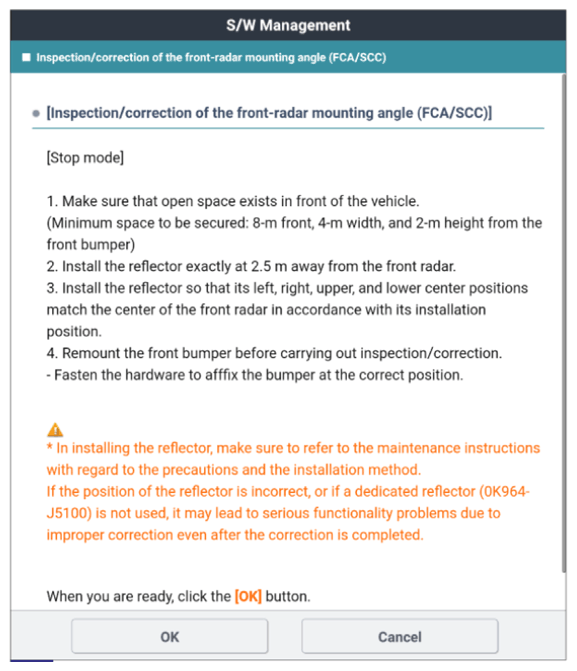

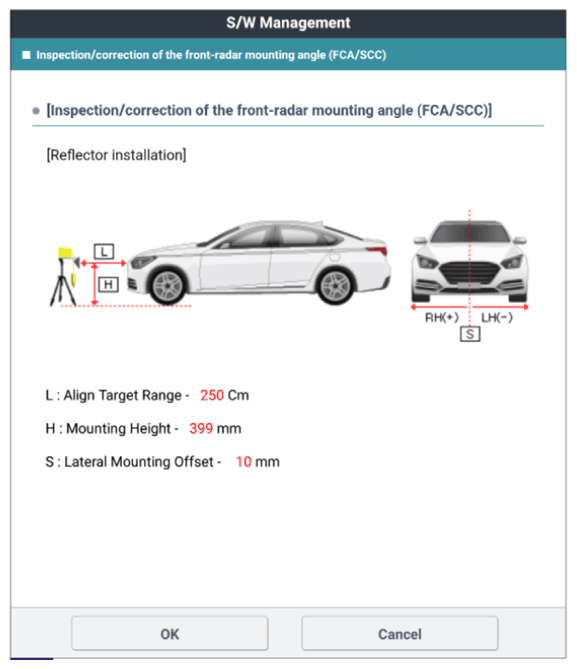

G14966901Courtesy of KIA MOTORS AMERICA, INC.

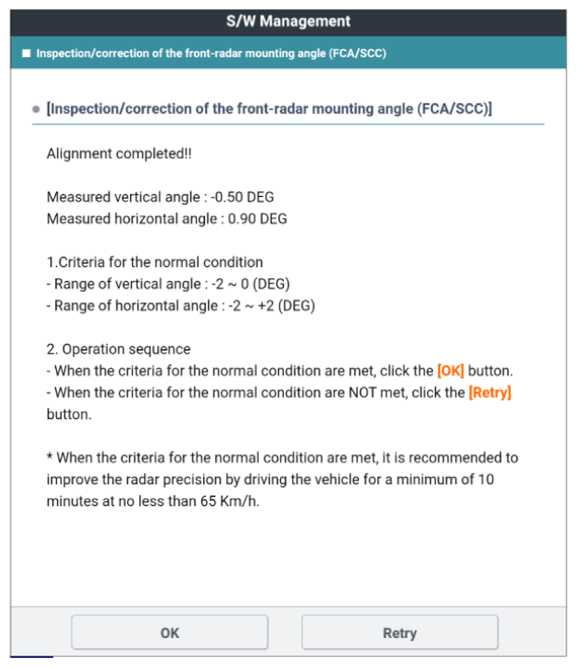

G14966902Courtesy of KIA MOTORS AMERICA, INC.
