Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 6

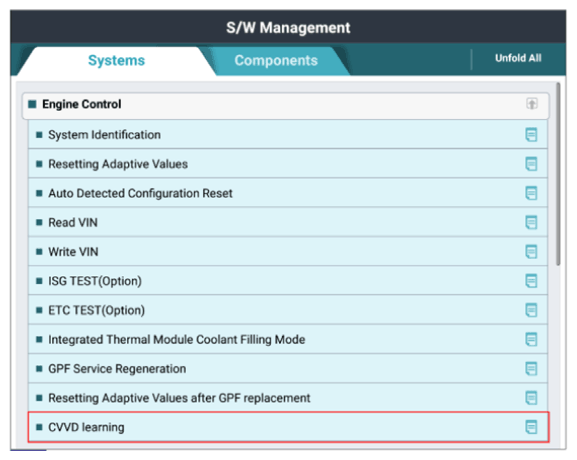

G14964195Courtesy of KIA MOTORS AMERICA, INC.

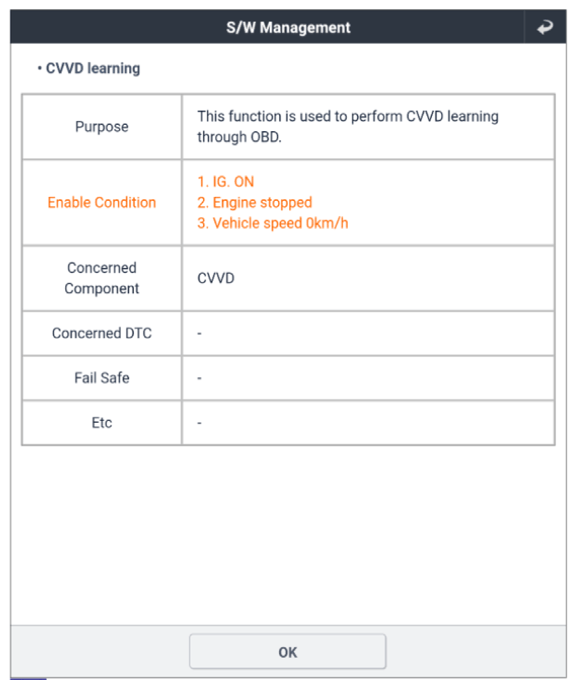

G14964196Courtesy of KIA MOTORS AMERICA, INC.

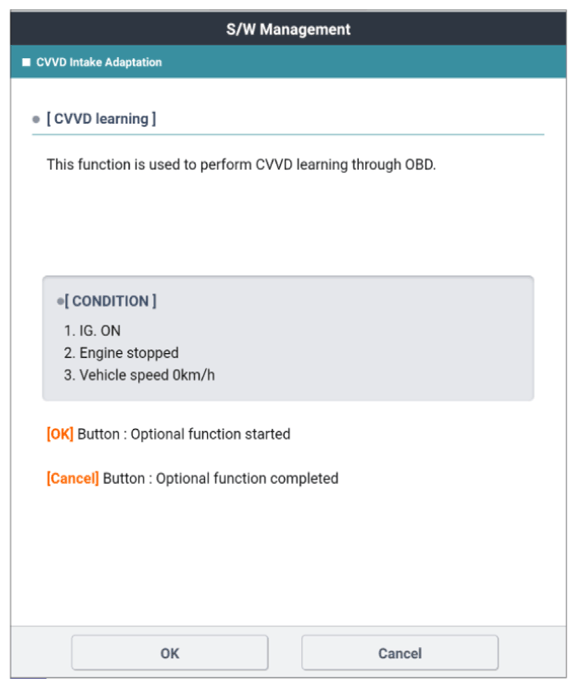

G14964197Courtesy of KIA MOTORS AMERICA, INC.

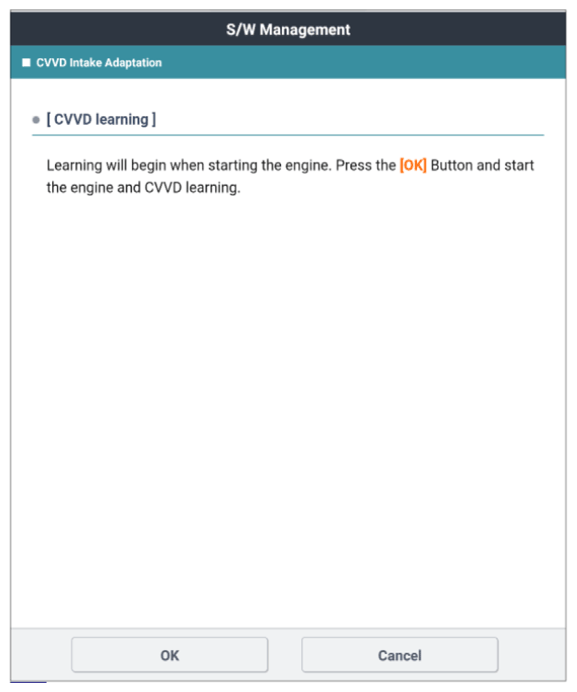

G14964198Courtesy of KIA MOTORS AMERICA, INC.

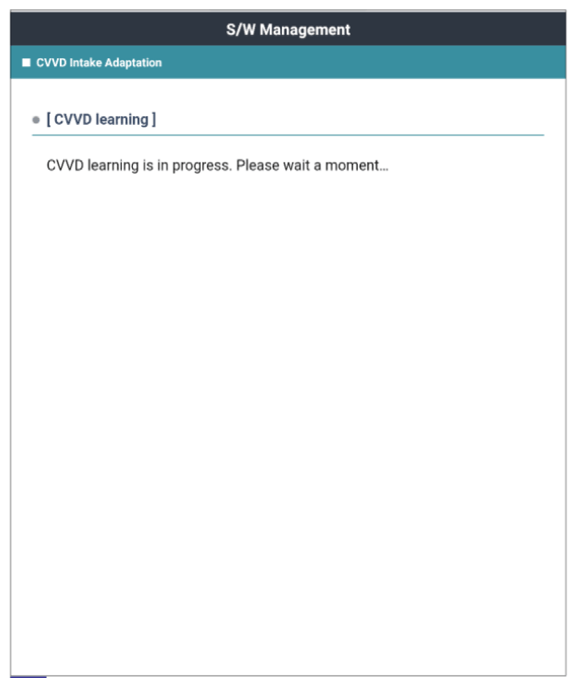

G14964199Courtesy of KIA MOTORS AMERICA, INC.

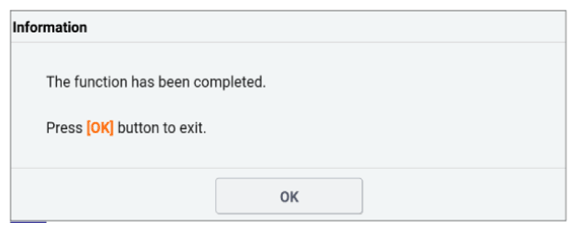

G14964200Courtesy of KIA MOTORS AMERICA, INC.
