Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 6

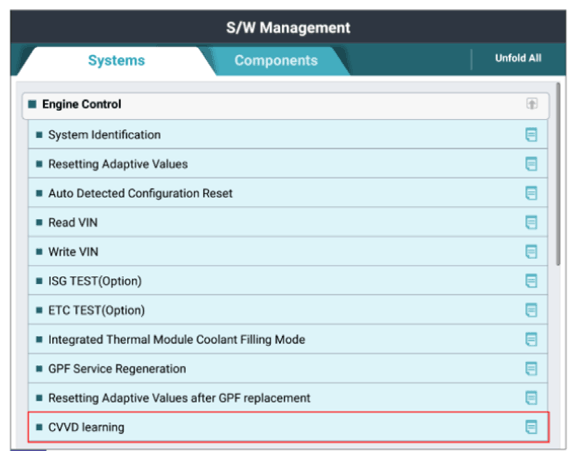

G14964183Courtesy of KIA MOTORS AMERICA, INC.

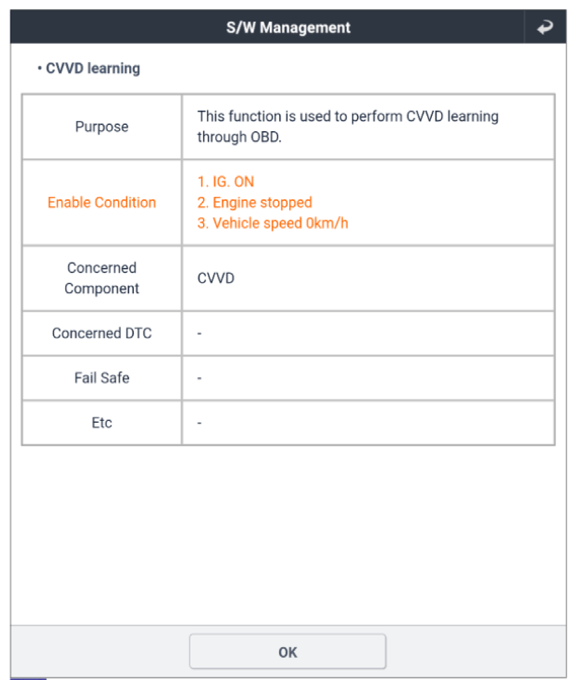

G14964184Courtesy of KIA MOTORS AMERICA, INC.

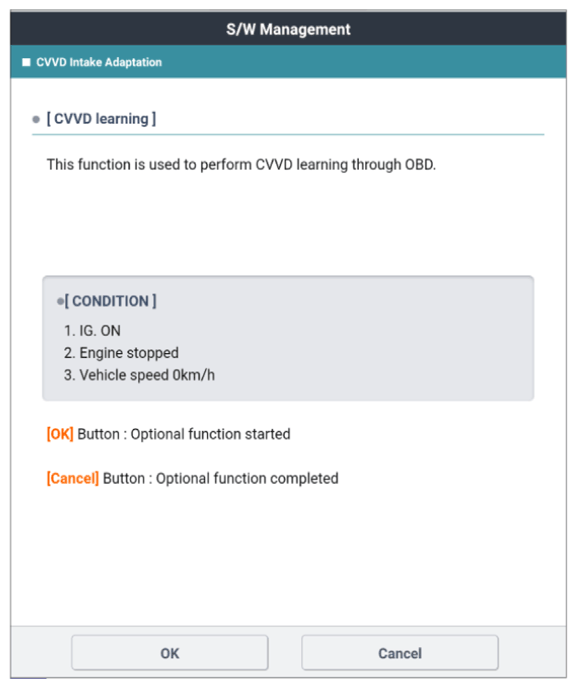

G14964185Courtesy of KIA MOTORS AMERICA, INC.

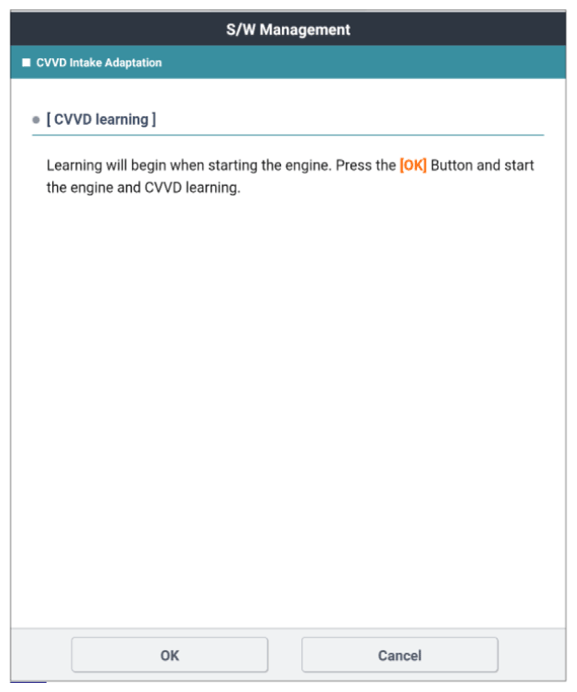

G14964186Courtesy of KIA MOTORS AMERICA, INC.

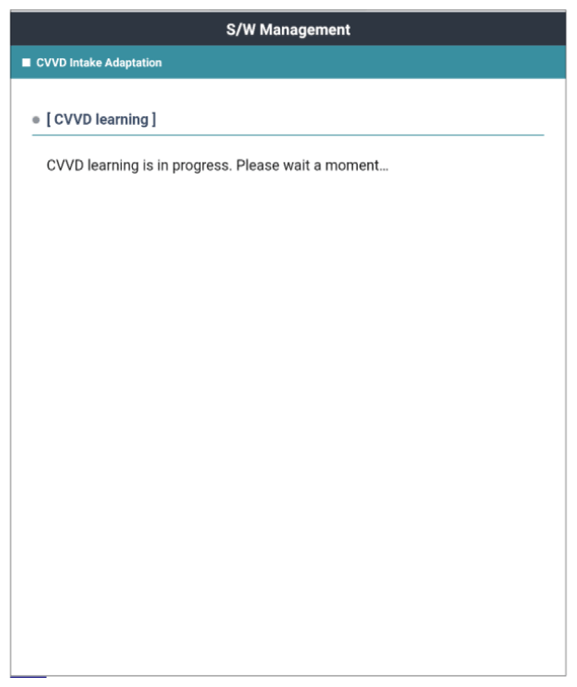

G14964187Courtesy of KIA MOTORS AMERICA, INC.

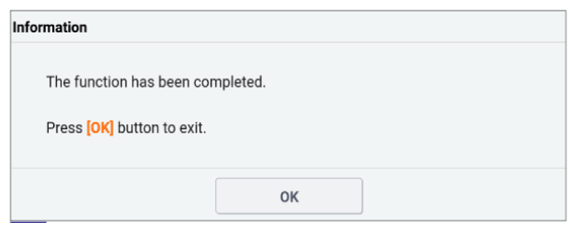

G14964188Courtesy of KIA MOTORS AMERICA, INC.
