Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

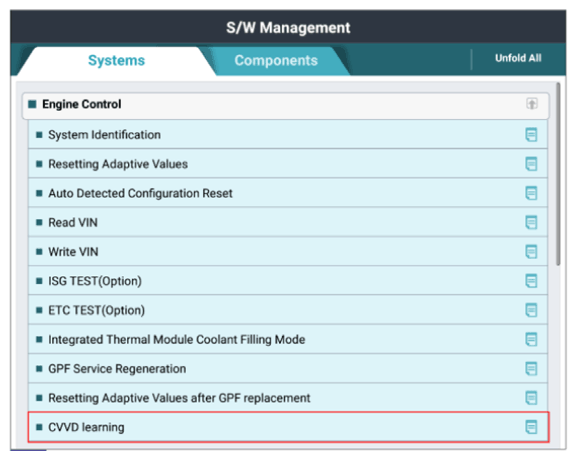

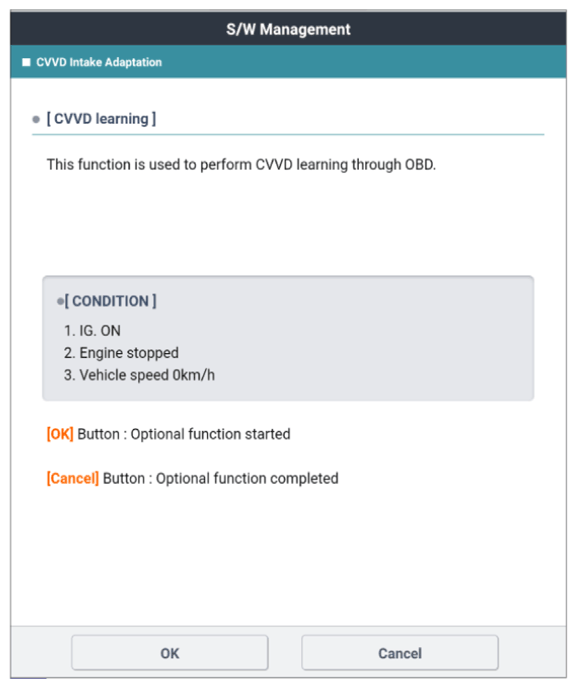

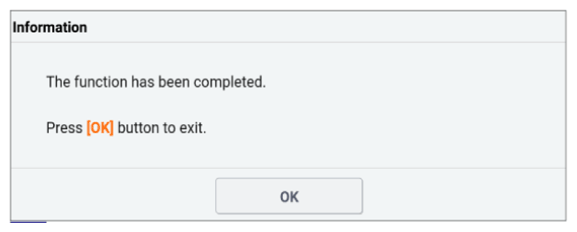

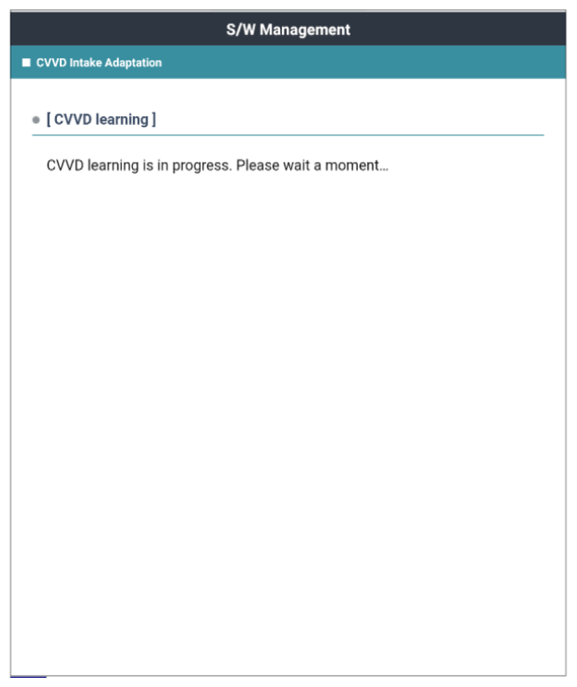

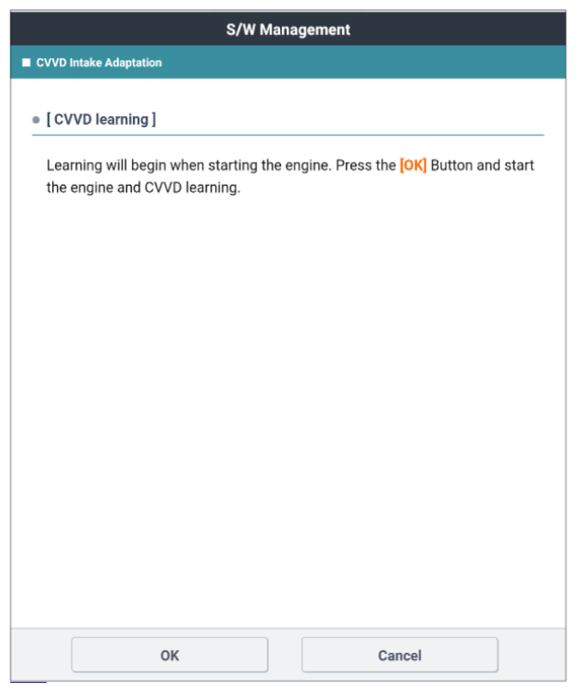

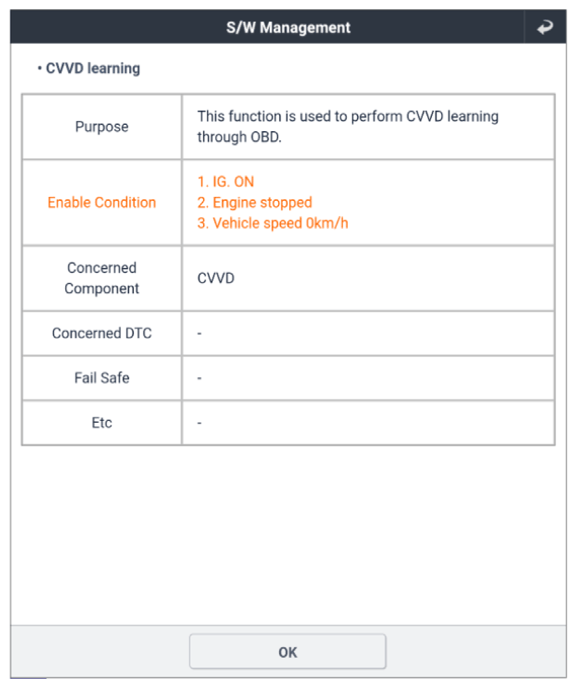

 Fig.1 to 6
G14964171Courtesy of KIA MOTORS AMERICA, INC.
G14964172Courtesy of KIA MOTORS AMERICA, INC.
G14964173Courtesy of KIA MOTORS AMERICA, INC.
G14964174Courtesy of KIA MOTORS AMERICA, INC.
G14964175Courtesy of KIA MOTORS AMERICA, INC.
G14964176Courtesy of KIA MOTORS AMERICA, INC.
