Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ECM (component side) | 80 (H-CAN high) | ECM (component side) | 81 (H-CAN low) | Approx. 120Ω |
| BMS (component side) | 4 (H-CAN high) | BMS (component side) | 3 (H-CAN low) | Approx. 120Ω | |
| ECM connector | 80 (H-CAN high) | BMS connector | 4 (H-CAN high) | Approx. below 1Ω | |
| ECM connector | 81 (H-CAN low) | BMS connector | 3 (H-CAN low) | Approx. below 1Ω | |
| ECM connector | 80 (H-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| ECM connector | 81 (H-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
|

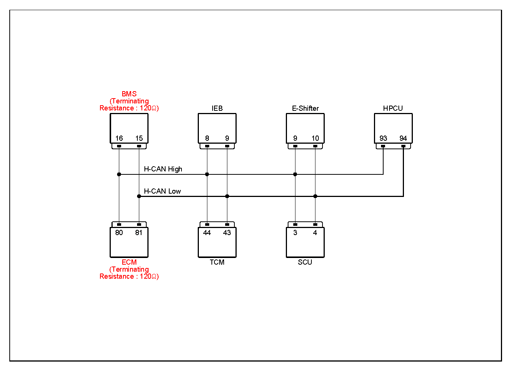

ECM connector | 80 (H-CAN high) | Chassis ground | - | Fig.1 |
| ECM connector | 81 (H-CAN low) | Chassis ground | - | ||
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then go to "Verification Of Repair " procedure.
