Monitor DTC Status

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

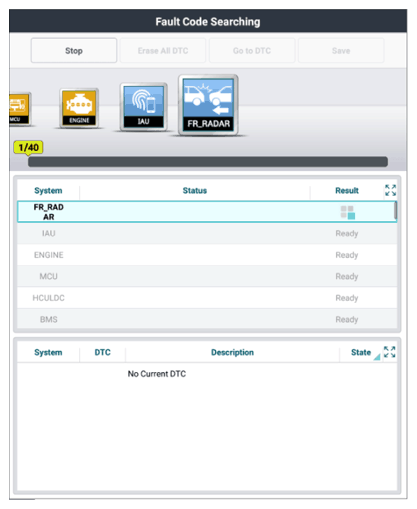

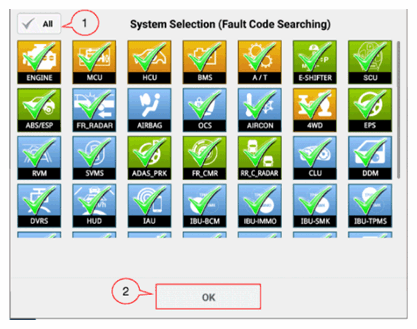

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Ignition "ON". Select correct vehicle model, year, and engine type with KDS. Select "ALL" system. (1) Select "Fault Code Searching". (2)	Fig.1 to 2

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification Of Repair " procedure.

No Good

Go to "WIRING INSPECTION " procedure.
