Component Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

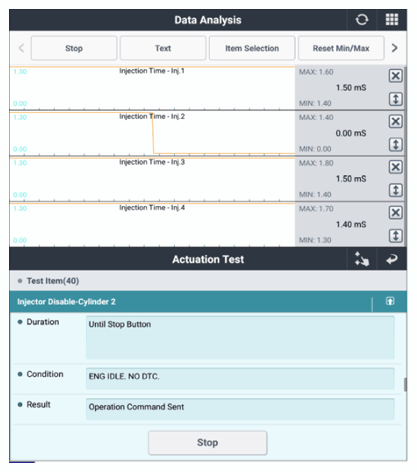

Engine "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Actuation Test" of concerned component with KDS.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference

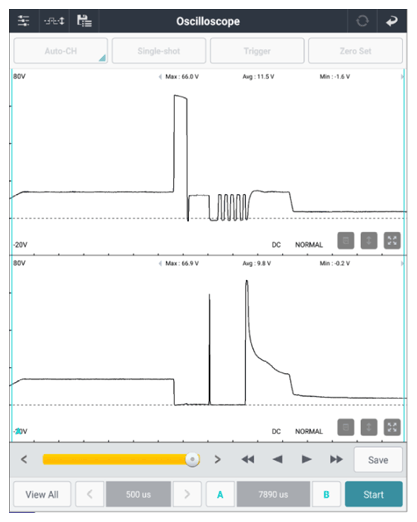

Engine "ON".	Injector #2 connector	2 (+)	Chassis ground	-	Fig.2
Engine "ON".	Injector #2 connector	1 (-)	Chassis ground	-	Fig.2

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Verification Of Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the injector #2 and Go to "Verification Of Repair " procedure.
