EWGA Adjustment Procedure
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

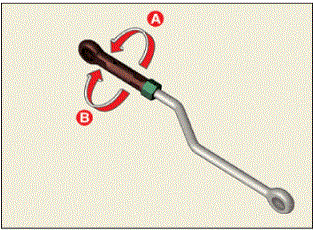

Table1) ADPATATION DIRECTION ABOUT VOLTAGE
| Voltage | Adjustment Direction of Rod End | Rod Length |
|---|---|---|
| Drop | Counter clockwise (B) | Longer |
| Rise | Clockwise (A) | Shorter |
Table2) VOLTAGE AMOUNT OF CHANGE FROM ANGLE OF ADAPTATION
| The Length Changes According to the Rotation Angle of The Rod | Changing Level of The Adaptation Value |
|---|---|
| 0.5mm (180°) | Approx. 0.1V |
| 1mm (360°) | Approx. 0.2V |
Good
• Go to ("Verification Of Repair ") procedure.
No Good
• Carefully re-do this troubleshooting guide steps.
• If no problems were found with the circuits or connectors, replace the EWGA and go to ("Verification Of Repair ") procedure.
