Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

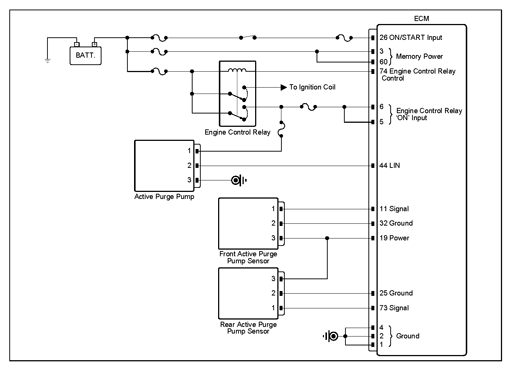

G14963832Courtesy of KIA MOTORS AMERICA, INC.

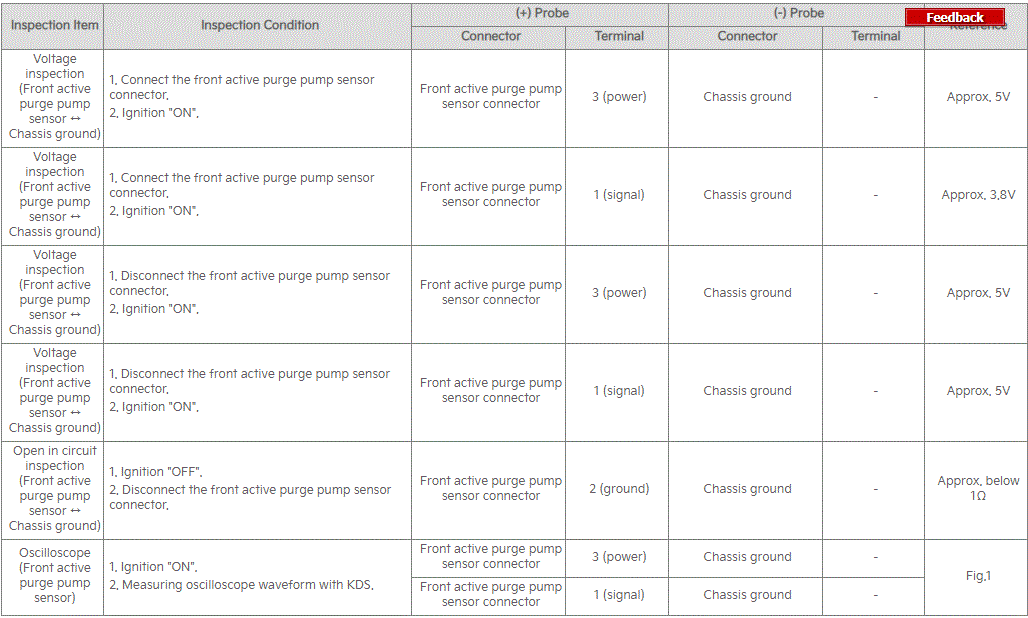

G00671934Courtesy of KIA MOTORS AMERICA, INC.

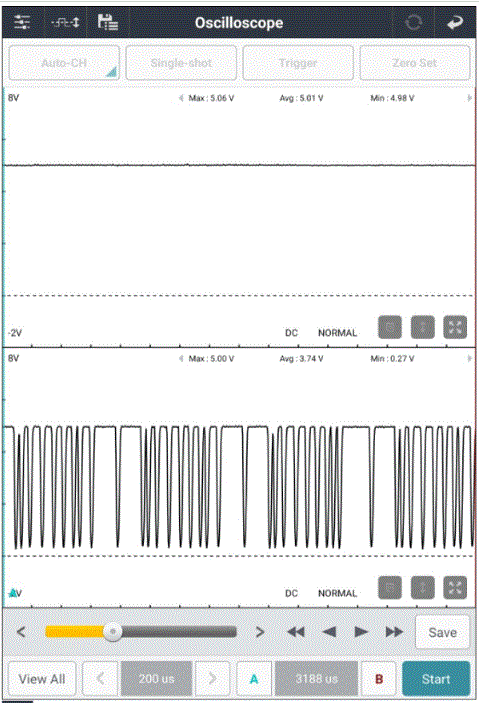

G00671908Courtesy of KIA MOTORS AMERICA, INC.
