Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

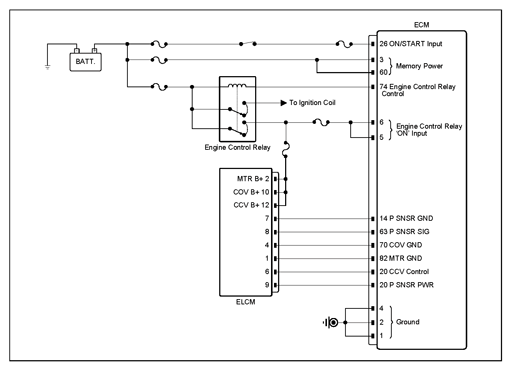

G14963788

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	ELCM connector	9 (P SNSR PWR)	Chassis ground	-	Approx. 5V
	ELCM connector	8 (P SNSR SIG)	Chassis ground	-	Approx. 5V
	ELCM connector	7 (P SNSR GND)	Chassis ground	-	Approx. 0V
Ignition "OFF". Disconnect the auxiliary battery (-) terminal. Disconnect the electrical connector(s) from the concerned component.	ELCM connector	9 (P SNSR PWR)	ECM connector	20 (P SNSR PWR)	Approx. below 1Ω
	ELCM connector	8 (P SNSR SIG)	ECM connector	63 (P SNSR SIG)	Approx. below 1Ω
	ELCM connector	7 (P SNSR GND)	ECM connector	14 (P SNSR GND)	Approx. below 1Ω
	ELCM connector	8 (P SNSR SIG)	Chassis ground	-	∞ (infinity)Ω

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the ELCM and Go to "Verification Of Repair " procedure.

No Good

Repair as necessary and Go to "Verification Of Repair " procedure.
