Component Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

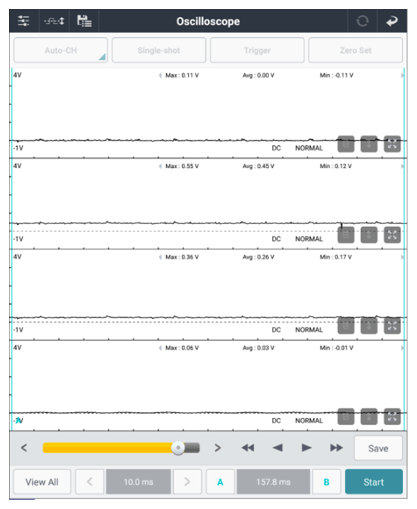

HO2S (Bank1, Sensor1) connector | 3 (virtual ground) | HO2S (Bank1, Sensor1) connector | 1 (voltage Nernst) | Fig.1 |
| HO2S (Bank1, Sensor1) connector | 6 (current pump) | HO2S (Bank1, Sensor1) connector | 4 (current adjust) | ||

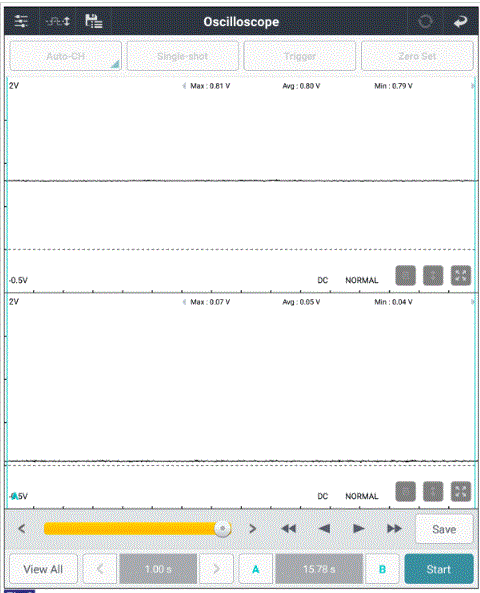

| 1. Engine "ON" (warm up condition). | HO2S (Bank1, Sensor2) connector | 1 (signal) | HO2S (Bank1, Sensor2) connector | 2 (ground) | Fig.2 |
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the HO2S (Bank1, Sensor1) and Go to "VERIFICATION OF REPAIR " procedure.
