Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

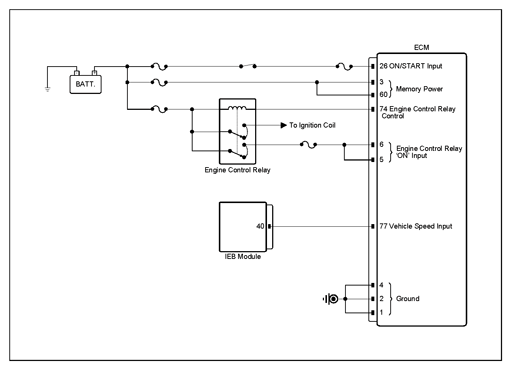

IEB connector | 40 (Wheel sensor output) | ECM connector | 77 (Vehicle speed input) | Approx. below 1Ω |
| IEB connector | 40 (Wheel sensor output) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Check for wheel speed sensor related failure in IEB system, and then perform applicable troubleshooting.
- Once wheel speed sensor related failure is fixed, re-do troubleshooting guide steps carefully.
- If no problems were found with the circuits or connectors, replace the ECM and then Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Repair or replace as necessary and then, Go to "VERIFICATION OF REPAIR " procedure.
