System Inspection: Notes
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
| 1. Ignition "ON". | 1. Connect KDS to "Data Link Connector (DLC)". 2. Perform "Actuation Test" of concerned component with KDS. |

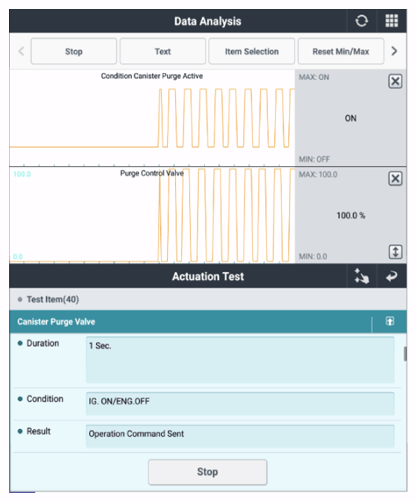

Fig.1 |
Good
• Go to "Front/Rear Active Purge Pump Sensor Inspection"
No Good
• Carefully re-do this troubleshooting guide steps.
• If no problems were found with the circuits or connectors, replace the PCSV and go to "Verification of Repair" procedure.
| Front/Rear Active Purge Pump Sensor Inspection | ||
|---|---|---|
| Inspection Condition | Inspection Procedure | Reference |
| 1. Ignition "ON". | 1. Connect KDS to "Data Link Connector (DLC)". 2. Perform "Actuation Test" of concerned component with KDS. |

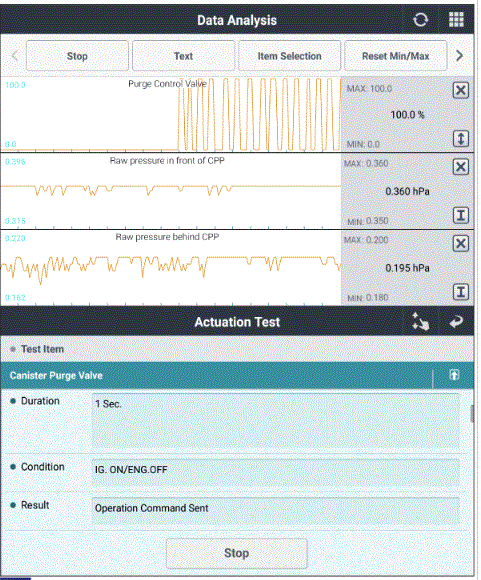

Fig.1 |

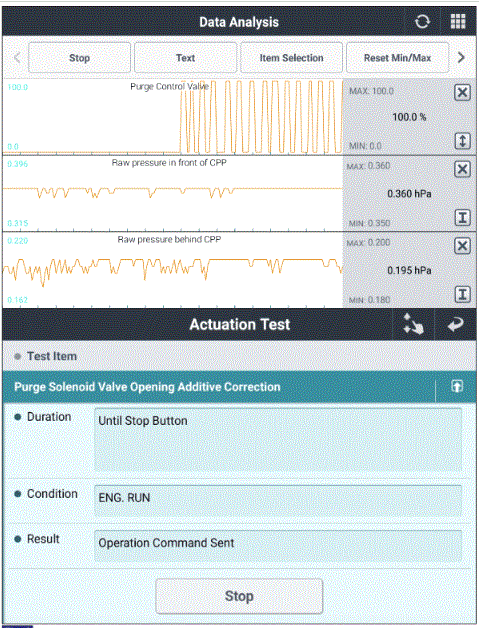

| 1. Engine "ON" . | Fig.2 | |
Good
• Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of auxiliary battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
No Good
• Go to "Visual Inspection"
