Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

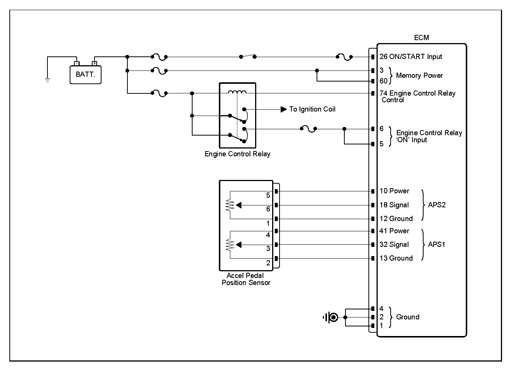

| APS1 Circuit Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
APS connector | 4 (supply) | Chassis ground | - | Approx. 5V |
|
APS connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω |
| APS connector | 3 (signal) | ECM connector | 32 (signal) | Approx. below 1Ω | |
| APS connector | 3 (signal) | Chassis ground | - | ∞ (infinity)Ω | |
| APS connector | 3 (signal) | Battery (+) terminal | - | ∞ (infinity)Ω | |
| APS2 Circuit Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
APS connector | 5 (supply) | Chassis ground | - | Approx. 5V |
|
APS connector | 1 (ground) | Chassis ground | - | Approx. below 1Ω |
| APS connector | 6 (signal) | ECM connector | 18 (signal) | Approx. below 1Ω | |
| APS connector | 6 (signal) | Chassis ground | - | ∞ (infinity)Ω | |
| APS connector | 6 (signal) | Battery (+) terminal | - | ∞ (infinity)Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
