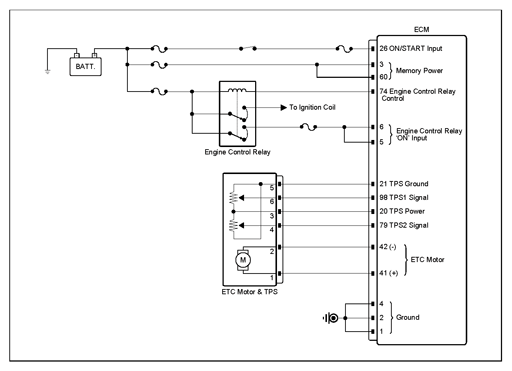

Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ETC motor & TPS connector | 3 (TPS supply) | Chassis ground | - | Approx. 5V |
| ETC motor & TPS connector | 6 (TPS1 signal) | Chassis ground | - | Approx. 5V | |
| ETC motor & TPS connector | 4 (TPS2 signal) | Chassis ground | - | Approx. 0V | |
| ETC motor & TPS connector | 1 (motor +) | Chassis ground | - | Approx. 1.8V | |
| ETC motor & TPS connector | 2 (motor -) | Chassis ground | - | Approx. 0V | |
|
ETC motor & TPS connector | 6 (TPS1 signal) | ECM connector | 98 (TPS1 signal) | Approx. below 1Ω |
| ETC motor & TPS connector | 4 (TPS2 signal) | ECM connector | 79 (TPS2 signal) | Approx. below 1Ω | |
| ETC motor & TPS connector | 5 (ground) | Chassis ground | - | Approx. below 1Ω | |
| ETC motor & TPS connector | 1 (motor +) | ECM connector | 41 (ETC Motor +) | Approx. below 1Ω | |
| ETC motor & TPS connector | 2 (motor -) | ECM connector | 42 (ETC motor -) | Approx. below 1Ω | |
| ETC motor & TPS connector | 6 (TPS1 signal) | Chassis ground | - | Approx. below 1Ω | |
| ETC motor & TPS connector | 4 (TPS2 signal) | Chassis ground | - | ∞ (infinity)Ω | |
| ETC motor & TPS connector | 1 (motor +) | Chassis ground | - | ∞ (infinity)Ω | |
| ETC motor & TPS connector | 2 (motor -) | Chassis ground | - | ∞ (infinity)Ω | |
| ETC motor & TPS connector | 1 (motor +) | Battery (+) terminal | - | ∞ (infinity)Ω | |
| ETC motor & TPS connector | 2 (motor -) | Battery (+) terminal | - | ∞ (infinity)Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
