Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

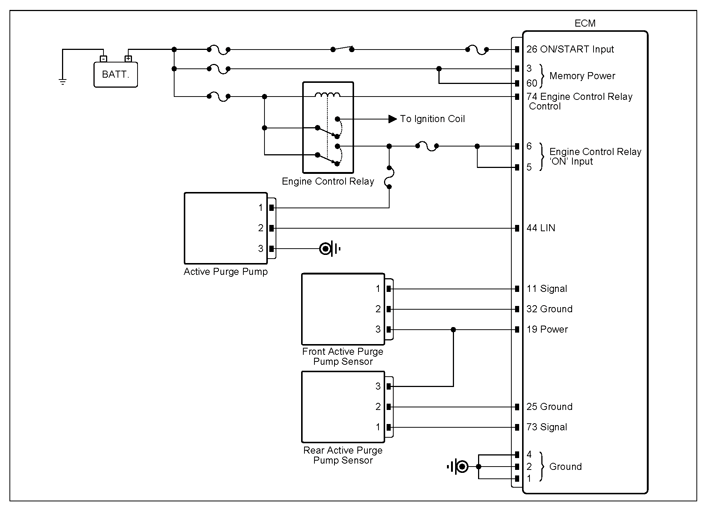

G14943231Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 Active purge pump connector 1 (power) Chassis ground - B+
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 Active purge pump connector 2 (LIN) ECM connector 44 (LIN) Approx. below 1Ω
Active purge pump connector 2 (LIN) Chassis ground - ∞ (infinity)Ω
Active purge pump connector 3 (ground) Chassis ground - Approx. below 1Ω
  1. Engine "ON".

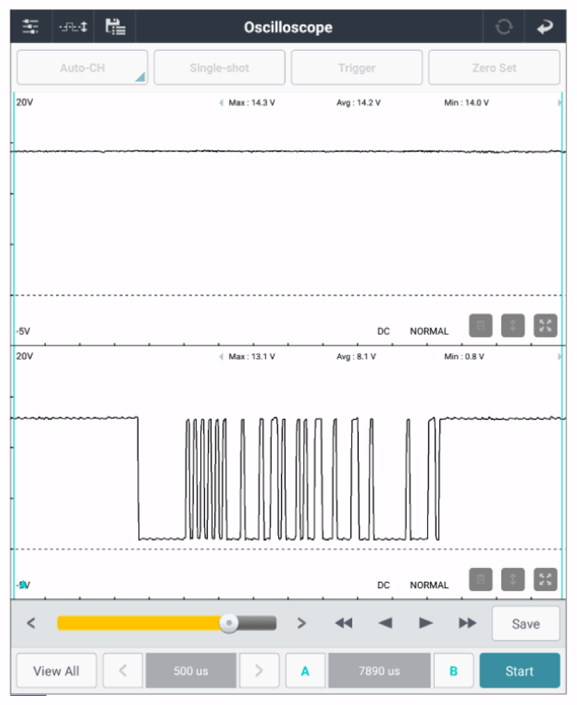

 Active purge pump connector 1 (power) Chassis ground - Fig.1
Active purge pump connector 2 (LIN) Chassis ground -
G14943232Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
