Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 6

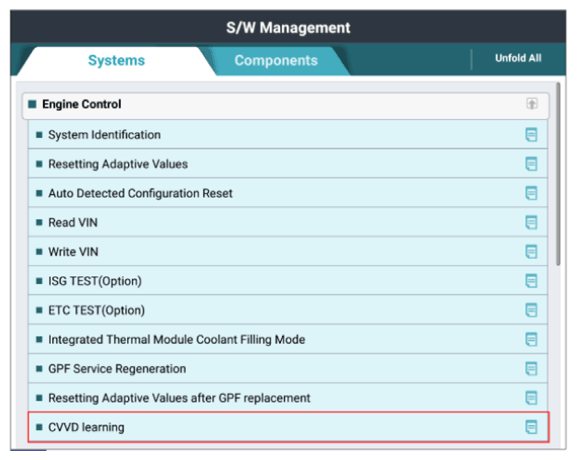

G14943199Courtesy of KIA MOTORS AMERICA, INC.

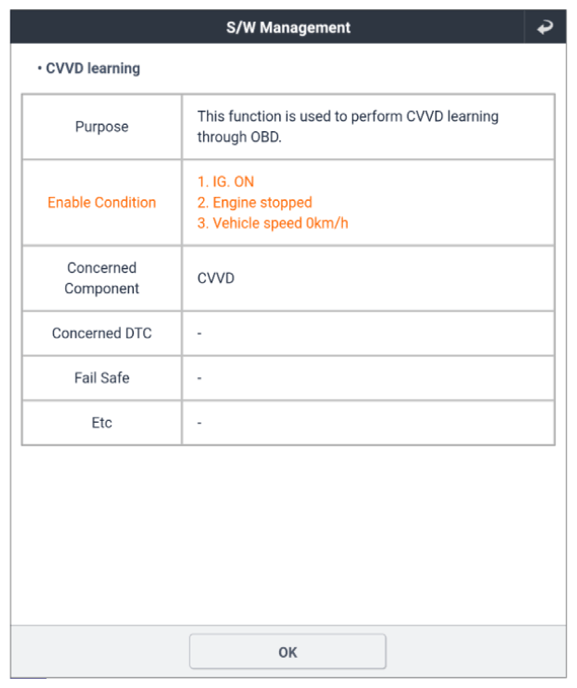

G14943200Courtesy of KIA MOTORS AMERICA, INC.

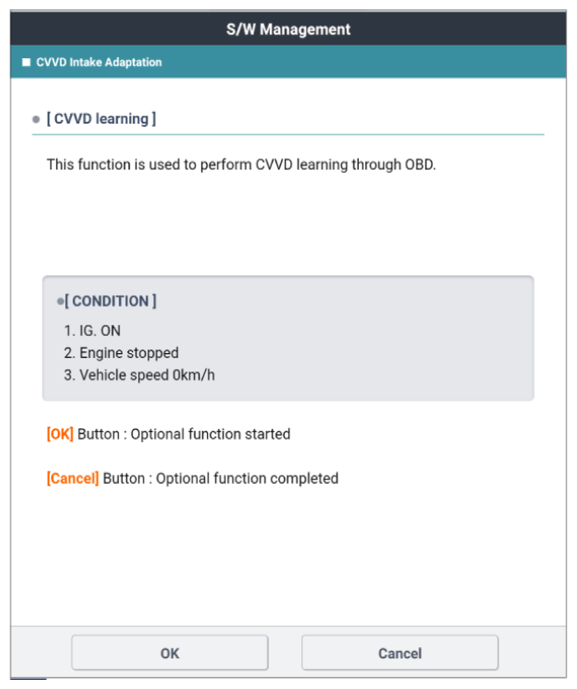

G14943201Courtesy of KIA MOTORS AMERICA, INC.

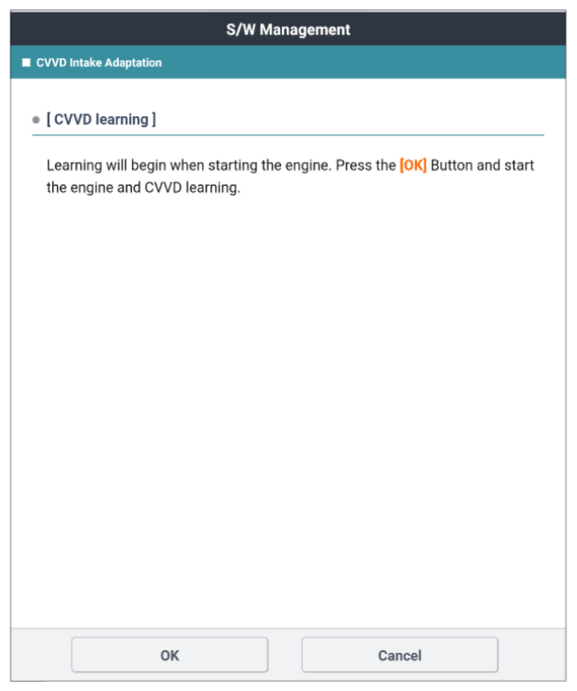

G14943202Courtesy of KIA MOTORS AMERICA, INC.

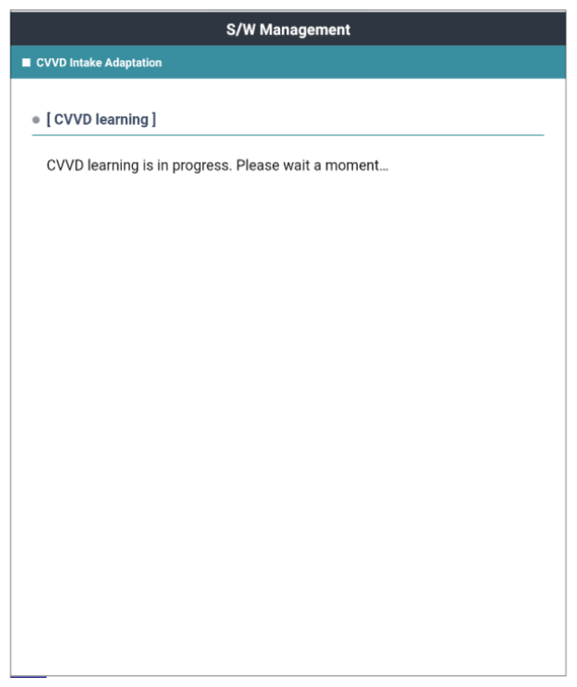

G14943203Courtesy of KIA MOTORS AMERICA, INC.

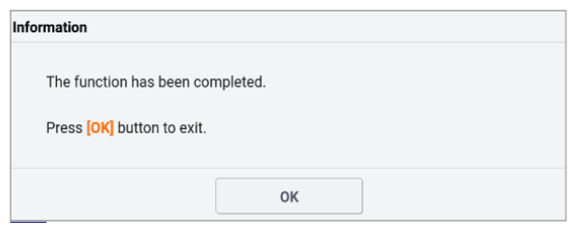

G14943204Courtesy of KIA MOTORS AMERICA, INC.
