Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

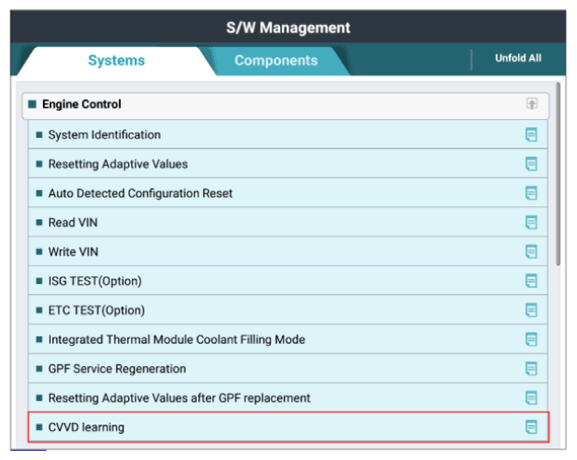

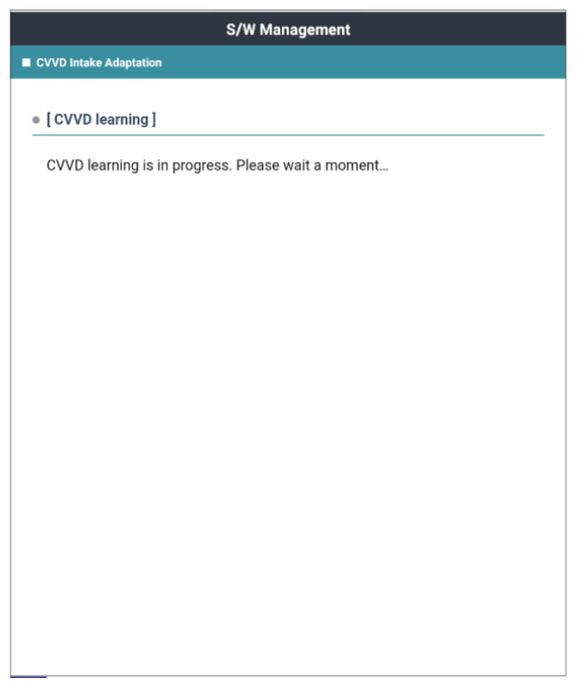

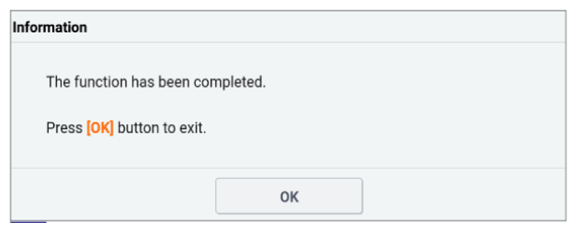

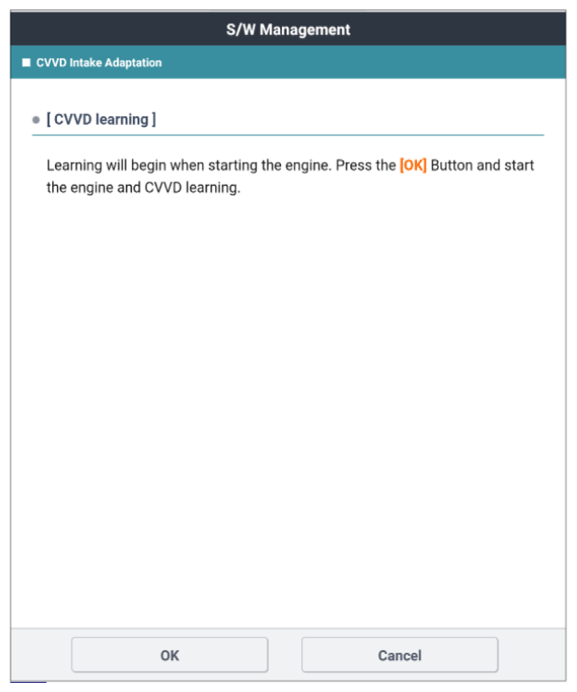

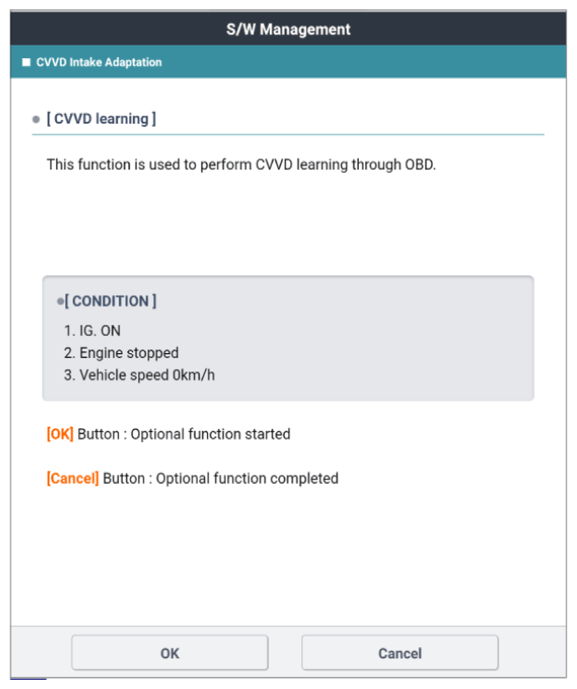

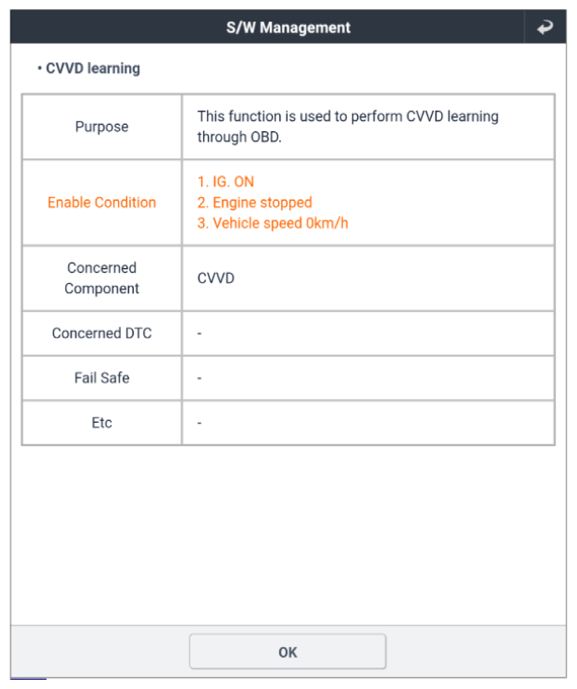

 Fig.1 to 6
G14943185Courtesy of KIA MOTORS AMERICA, INC.
G14943186Courtesy of KIA MOTORS AMERICA, INC.
G14943187Courtesy of KIA MOTORS AMERICA, INC.
G14943188Courtesy of KIA MOTORS AMERICA, INC.
G14943189Courtesy of KIA MOTORS AMERICA, INC.
G14943190Courtesy of KIA MOTORS AMERICA, INC.
