Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

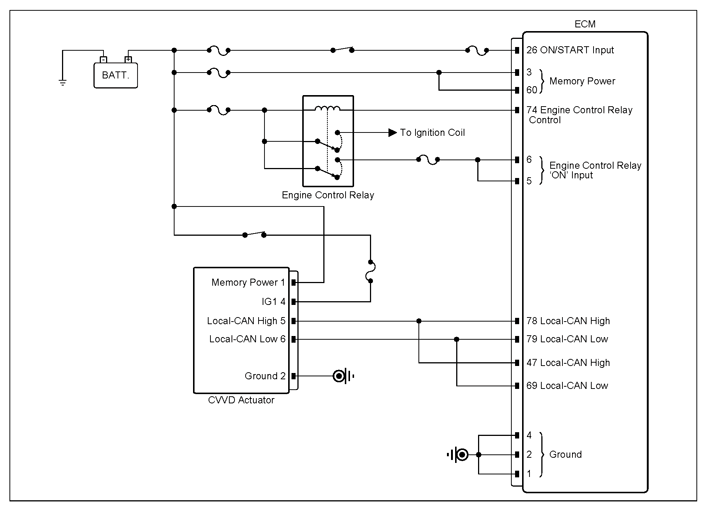

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
CVVD actuator connector | 4 (IG1 Input) | Chassis ground | - | B+ |
| CVVD actuator connector | 1 (Memory power) | Chassis ground | - | B+ | |
|
CVVD actuator connector | 5 (Local-CAN high) | Chassis ground | - | Fig.1 |
| CVVD actuator connector | 6 (Local-CAN low) | Chassis ground | - | ||
|
CVVD actuator connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
