Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

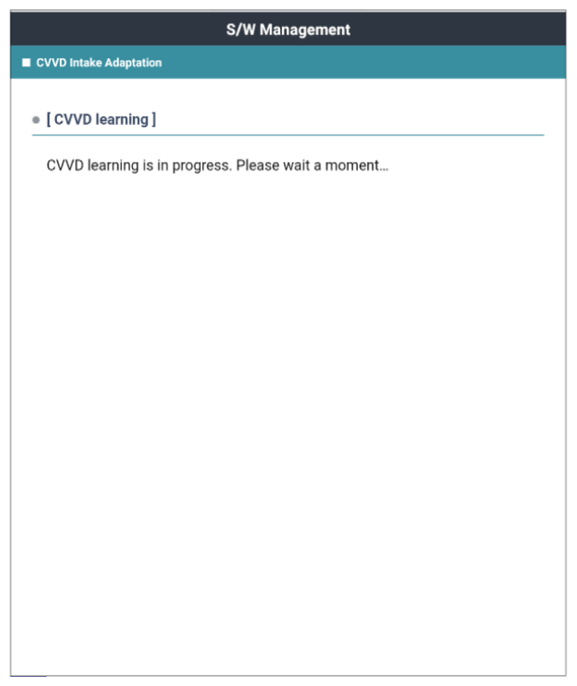

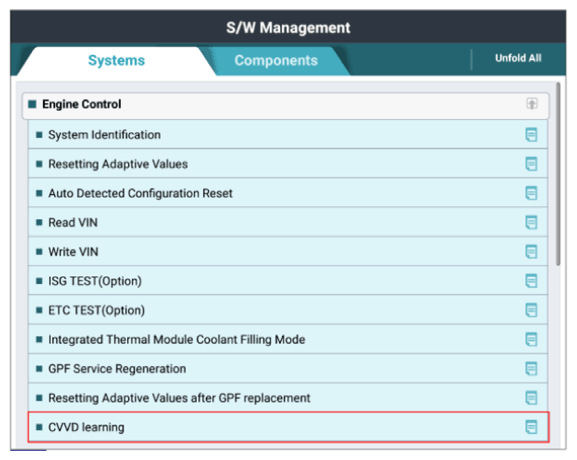

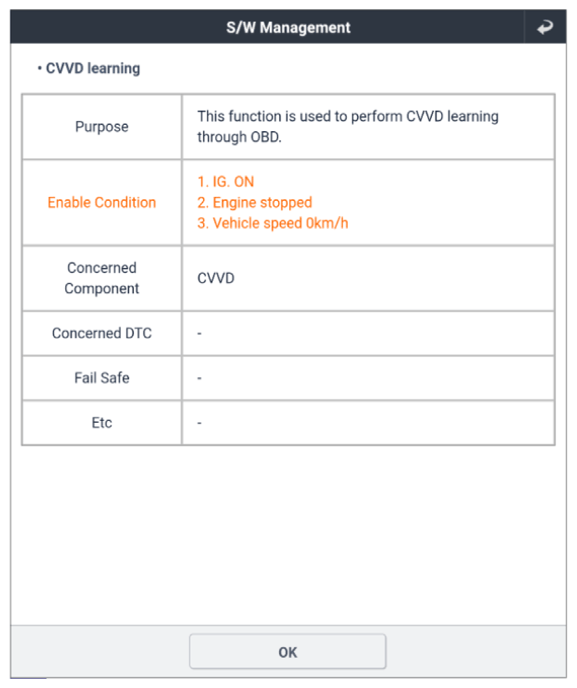

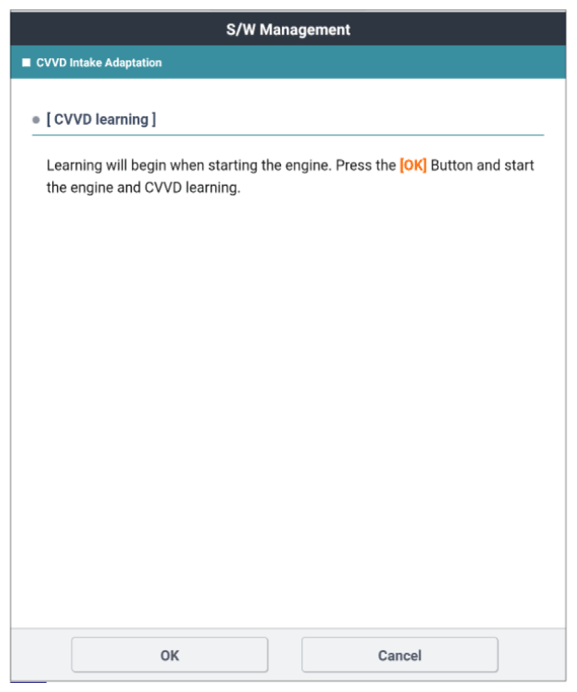

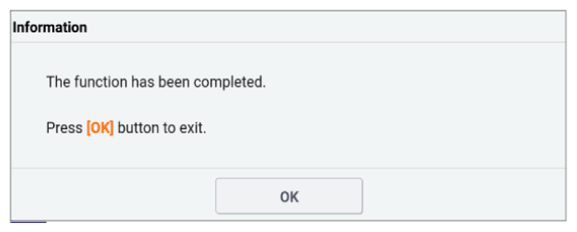

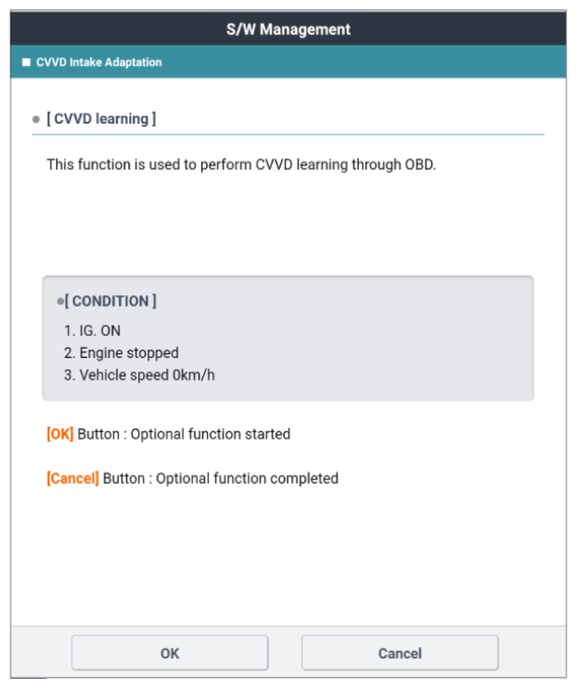

 Fig.1 to 6
G14943143Courtesy of KIA MOTORS AMERICA, INC.
G14943144Courtesy of KIA MOTORS AMERICA, INC.
G14943145Courtesy of KIA MOTORS AMERICA, INC.
G14943146Courtesy of KIA MOTORS AMERICA, INC.
G14943147Courtesy of KIA MOTORS AMERICA, INC.
G14943148Courtesy of KIA MOTORS AMERICA, INC.
