Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

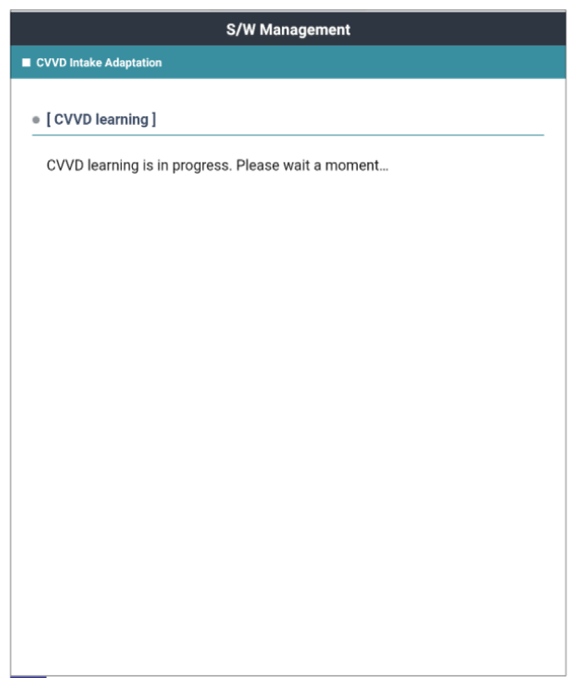

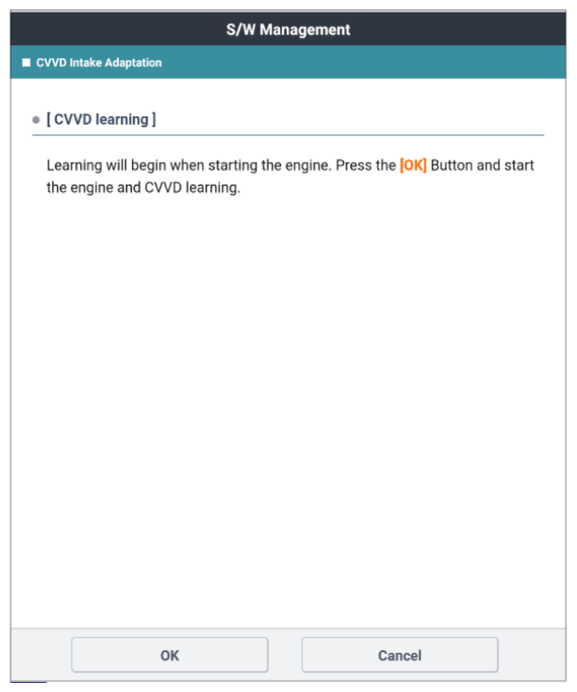

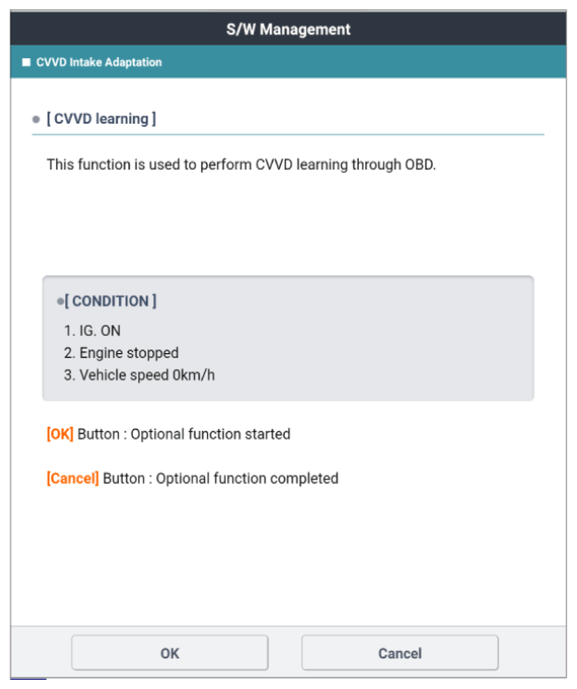

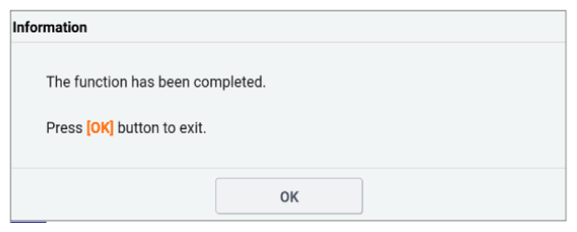

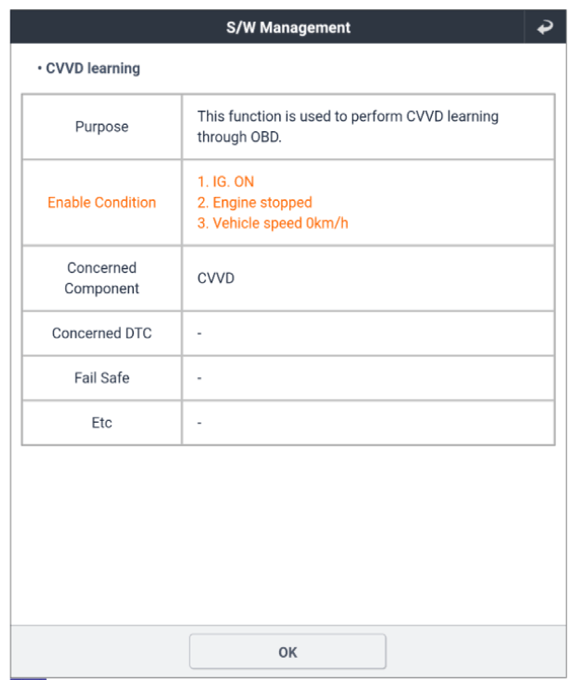

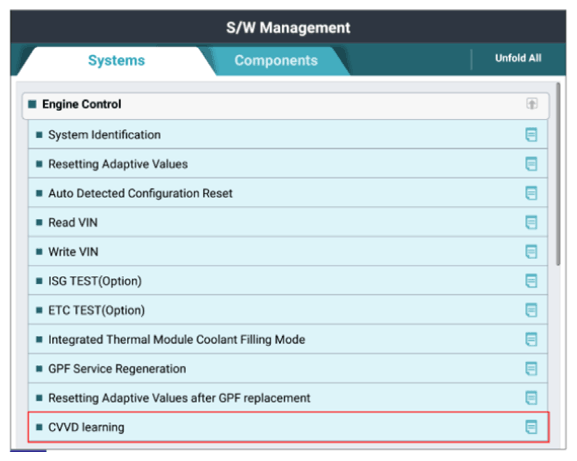

 Fig.1 to 6
G14943129Courtesy of KIA MOTORS AMERICA, INC.
G14943130Courtesy of KIA MOTORS AMERICA, INC.
G14943131Courtesy of KIA MOTORS AMERICA, INC.
G14943132Courtesy of KIA MOTORS AMERICA, INC.
G14943133Courtesy of KIA MOTORS AMERICA, INC.
G14943134Courtesy of KIA MOTORS AMERICA, INC.
