Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 6

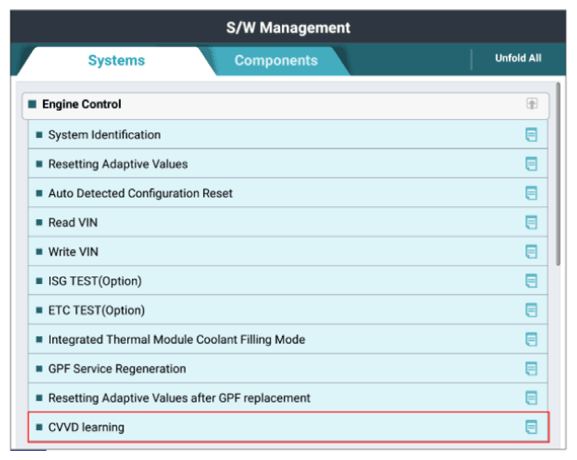

G14943115Courtesy of KIA MOTORS AMERICA, INC.

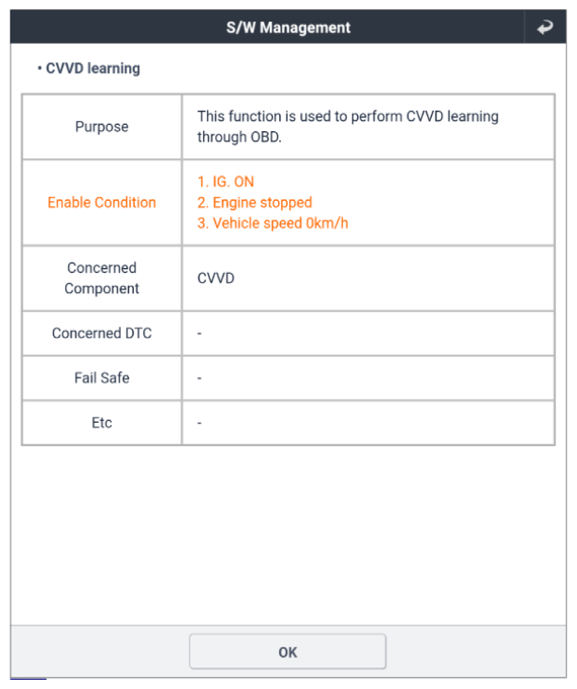

G14943116Courtesy of KIA MOTORS AMERICA, INC.

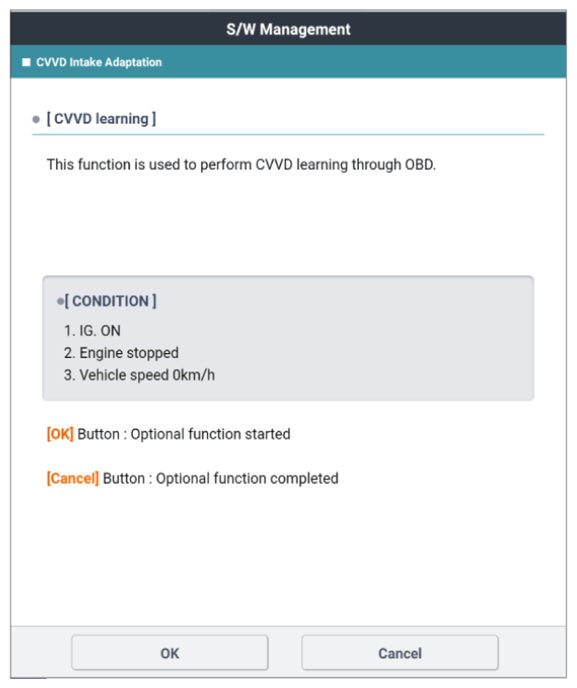

G14943117Courtesy of KIA MOTORS AMERICA, INC.

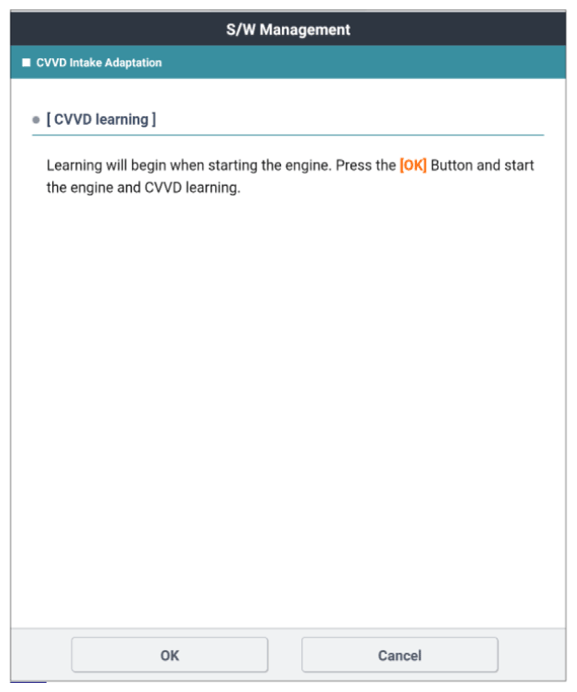

G14943118Courtesy of KIA MOTORS AMERICA, INC.

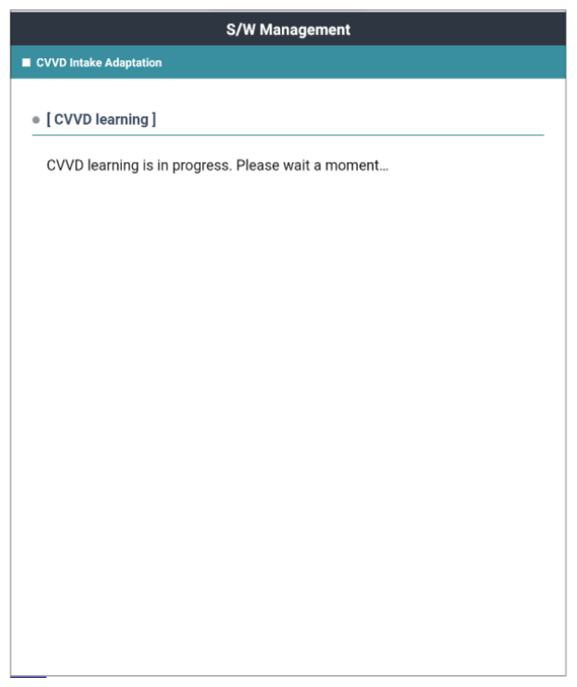

G14943119Courtesy of KIA MOTORS AMERICA, INC.

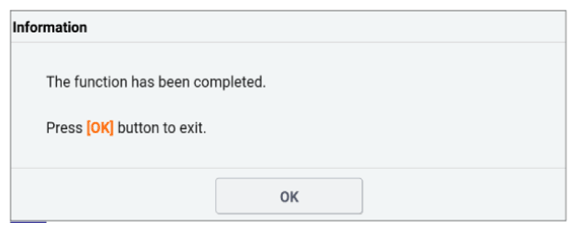

G14943120Courtesy of KIA MOTORS AMERICA, INC.
