Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

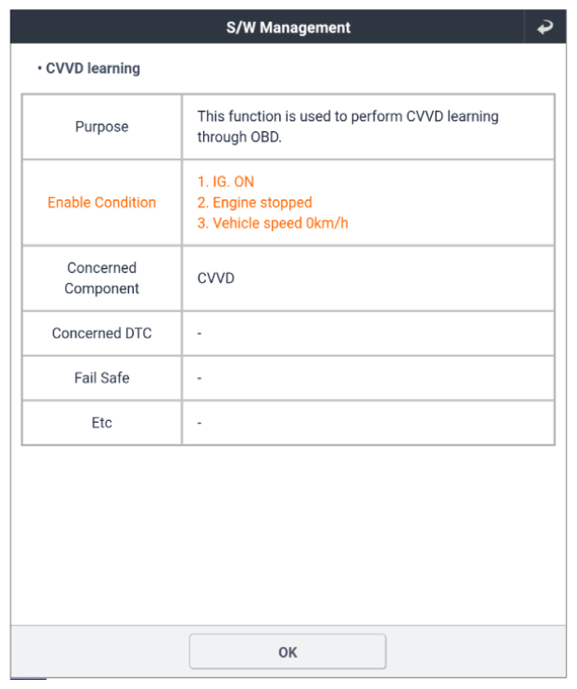

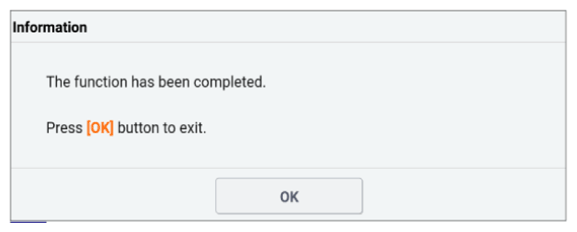

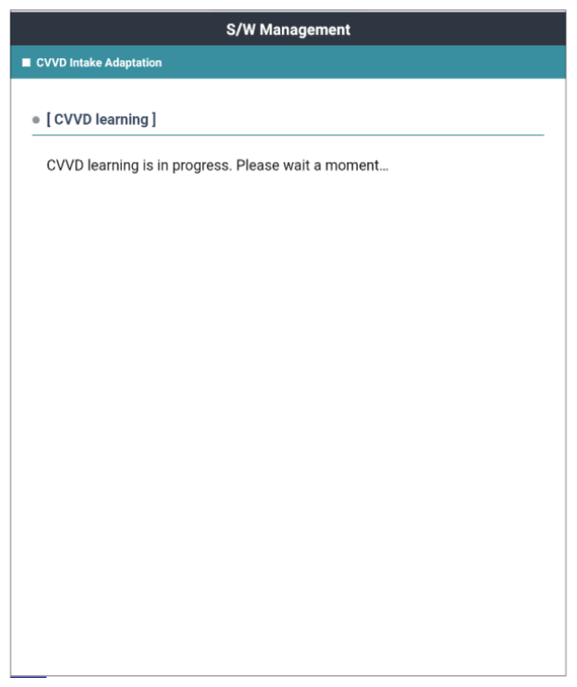

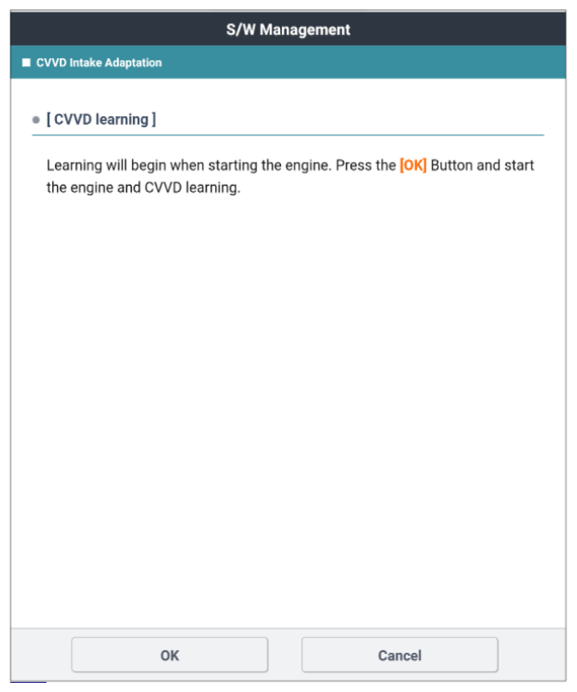

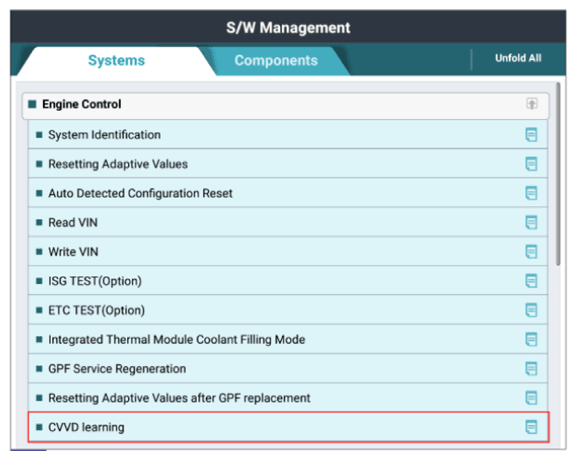

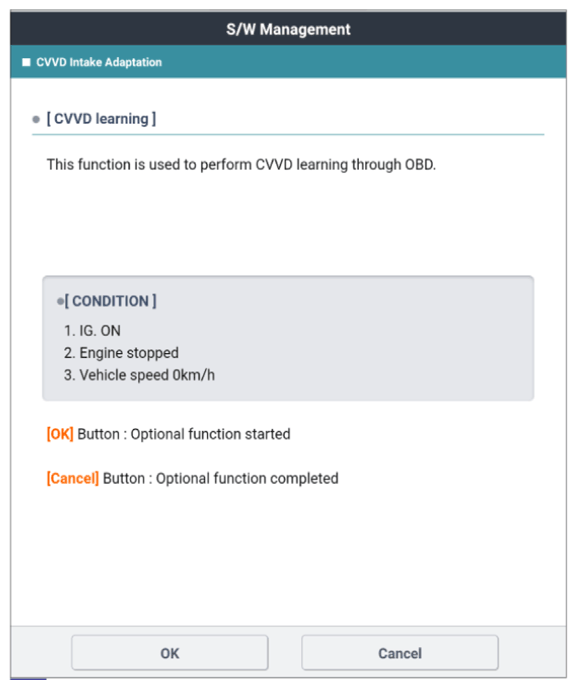

 Fig.1 to 6
G14943101Courtesy of KIA MOTORS AMERICA, INC.
G14943102Courtesy of KIA MOTORS AMERICA, INC.
G14943103Courtesy of KIA MOTORS AMERICA, INC.
G14943104Courtesy of KIA MOTORS AMERICA, INC.
G14943105Courtesy of KIA MOTORS AMERICA, INC.
G14943106Courtesy of KIA MOTORS AMERICA, INC.
