Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 6

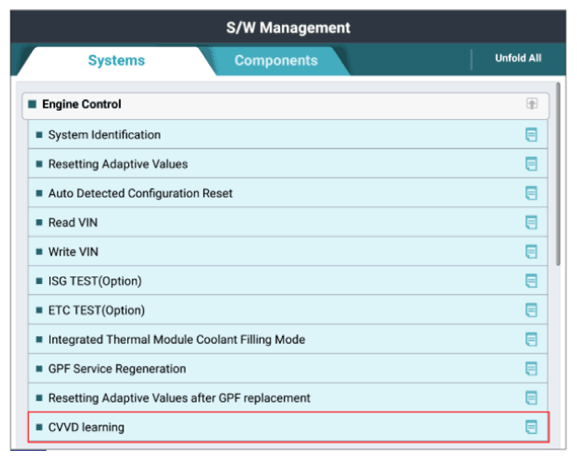

G14943087Courtesy of KIA MOTORS AMERICA, INC.

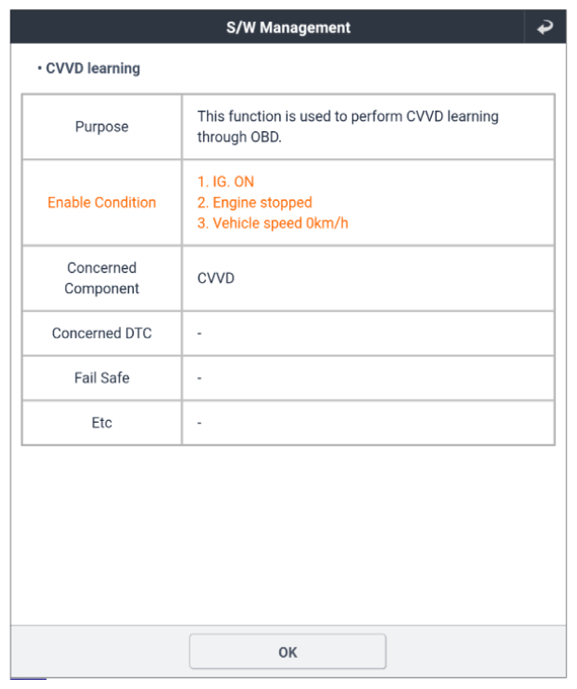

G14943088Courtesy of KIA MOTORS AMERICA, INC.

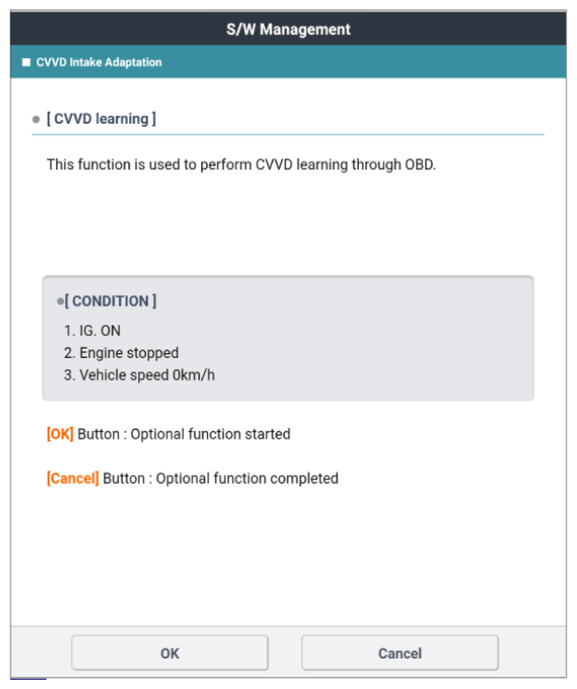

G14943089Courtesy of KIA MOTORS AMERICA, INC.

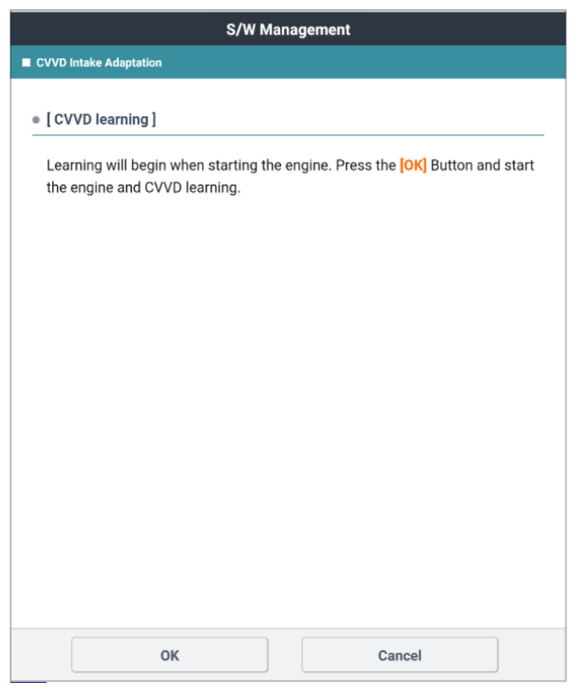

G14943090Courtesy of KIA MOTORS AMERICA, INC.

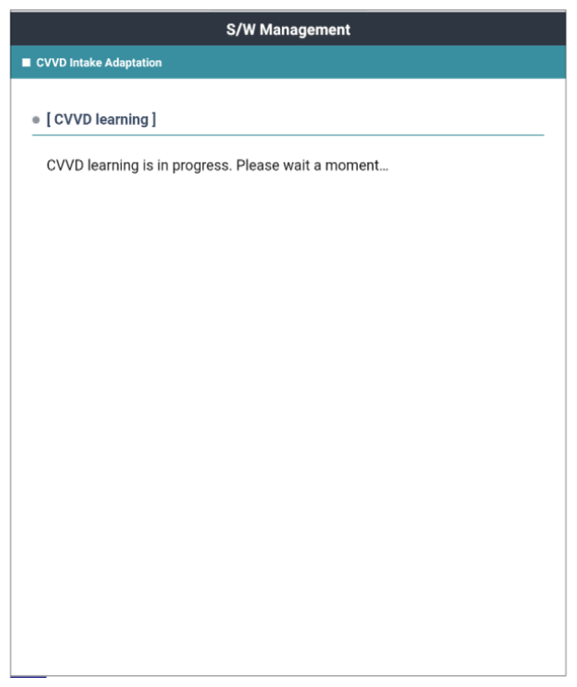

G14943091Courtesy of KIA MOTORS AMERICA, INC.

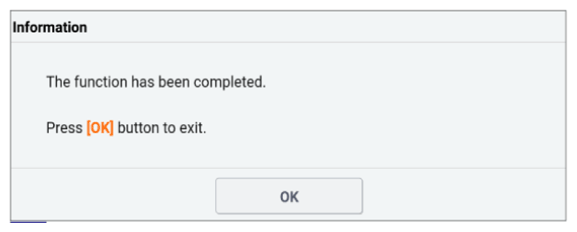

G14943092Courtesy of KIA MOTORS AMERICA, INC.
