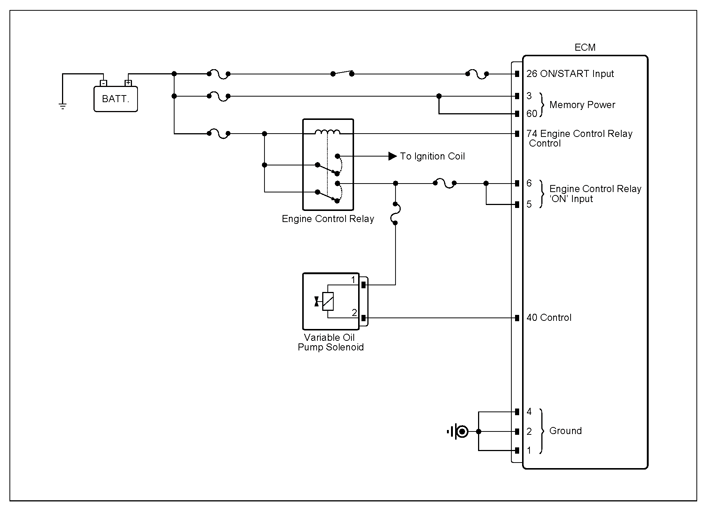

Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Variable oil pump solenoid connector | 1 (power) | Chassis ground | - | B+ |
| Variable oil pump solenoid connector | 2 (control) | Chassis ground | - | Approx. 3.1V | |
|
Variable oil pump solenoid connector | 2 (control) | ECM connector | 40 (control) | Approx. below 1Ω |
| Variable oil pump solenoid connector | 2 (control) | Chassis ground | - | ∞ (infinity)Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
