Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 6

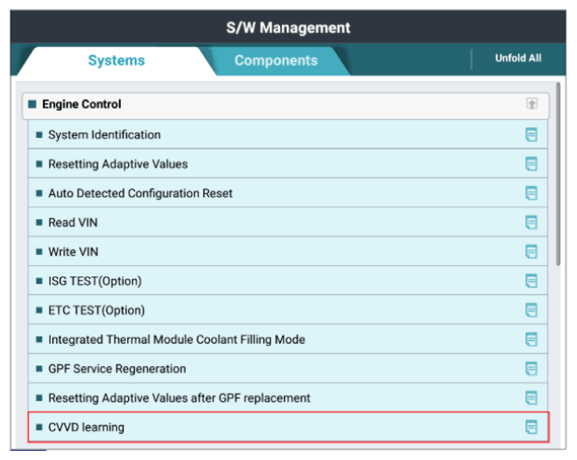

G14943011Courtesy of KIA MOTORS AMERICA, INC.

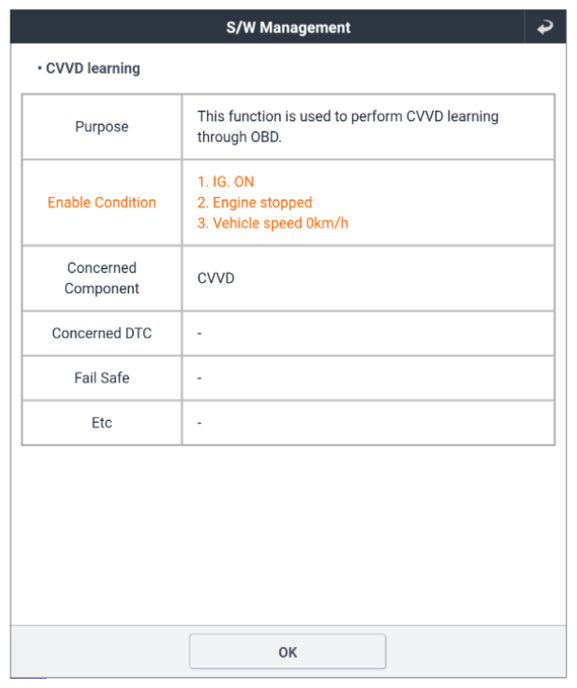

G14943012Courtesy of KIA MOTORS AMERICA, INC.

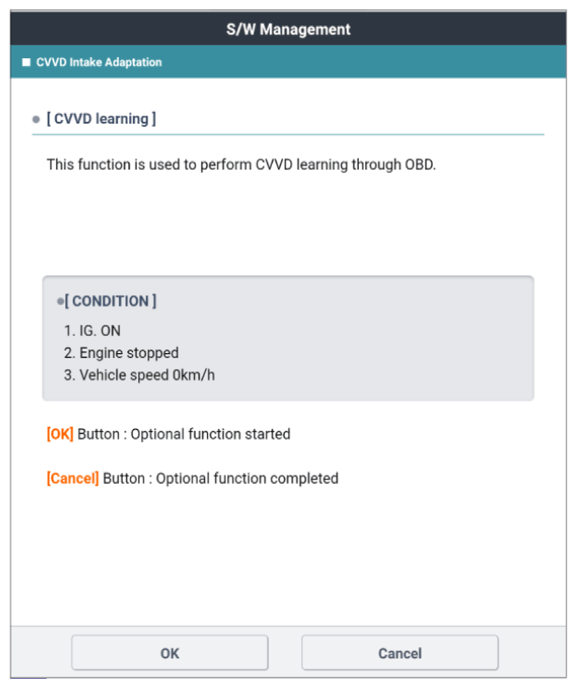

G14943013Courtesy of KIA MOTORS AMERICA, INC.

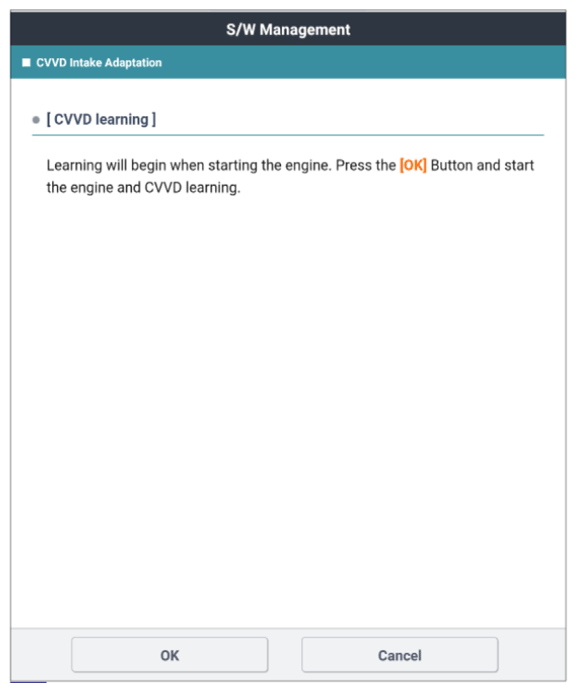

G14943014Courtesy of KIA MOTORS AMERICA, INC.

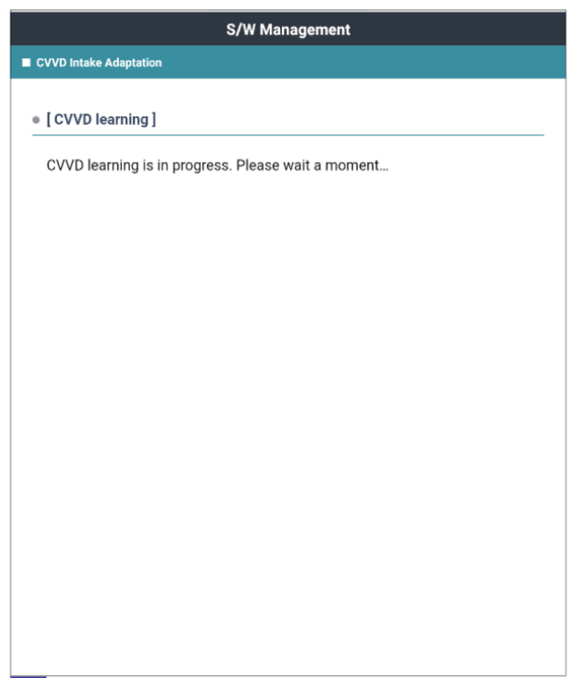

G14943015Courtesy of KIA MOTORS AMERICA, INC.

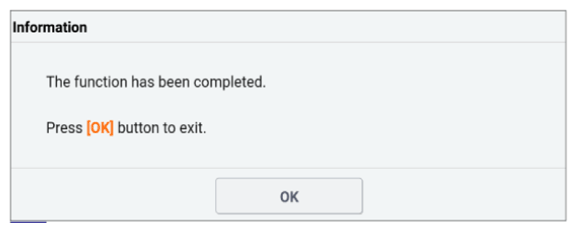

G14943016Courtesy of KIA MOTORS AMERICA, INC.
