Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 6

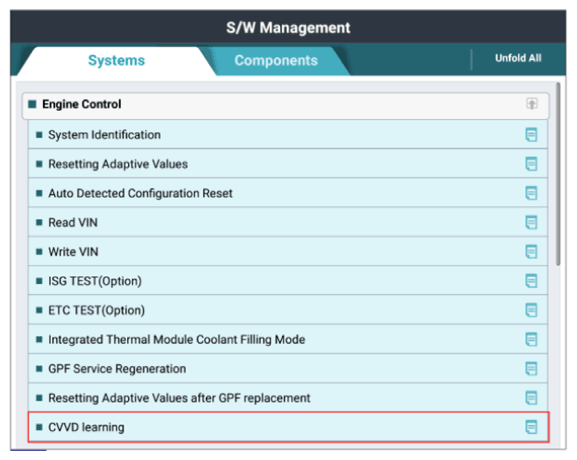

G14942997Courtesy of KIA MOTORS AMERICA, INC.

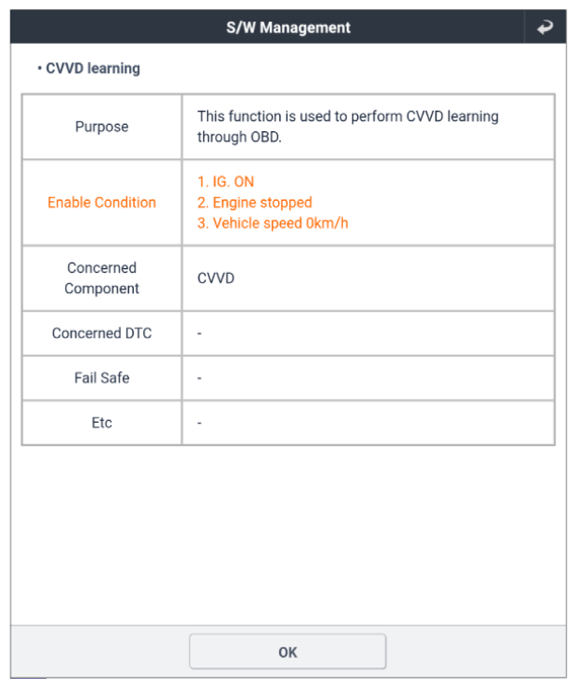

G14942998Courtesy of KIA MOTORS AMERICA, INC.

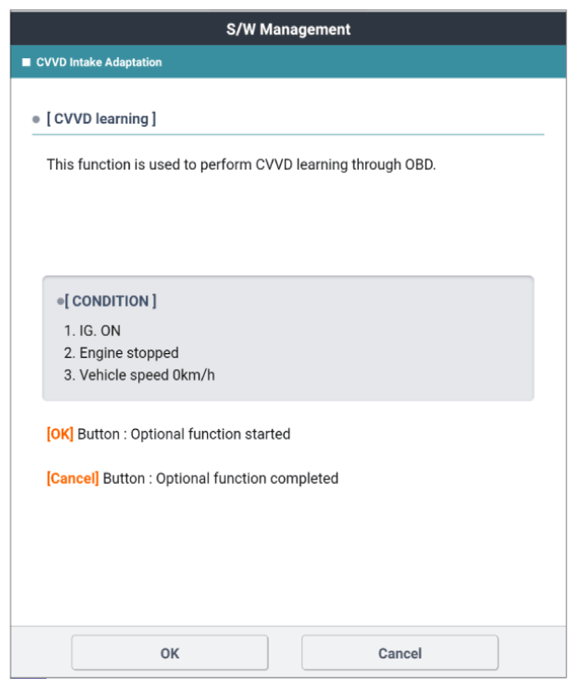

G14942999Courtesy of KIA MOTORS AMERICA, INC.

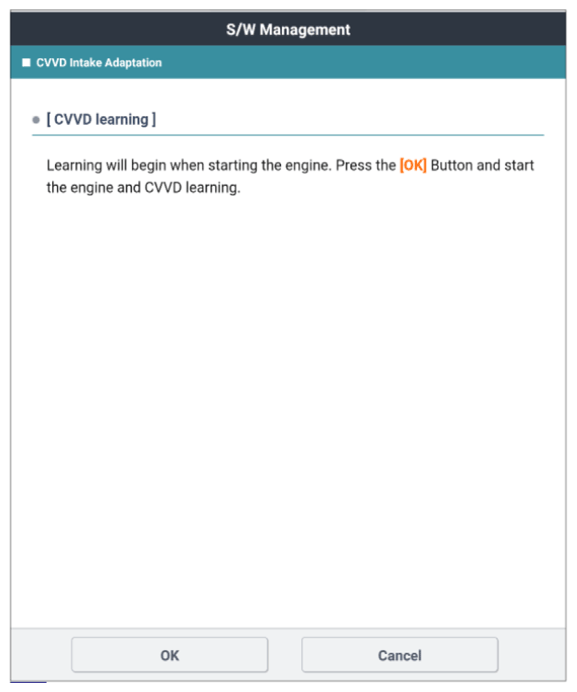

G14943000Courtesy of KIA MOTORS AMERICA, INC.

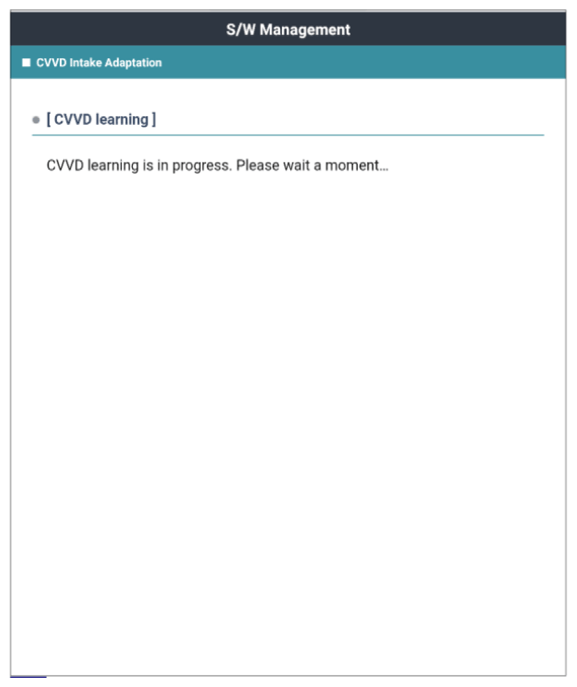

G14943001Courtesy of KIA MOTORS AMERICA, INC.

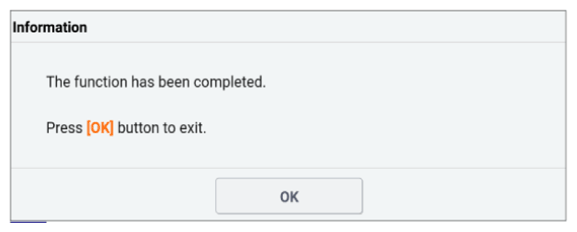

G14943002Courtesy of KIA MOTORS AMERICA, INC.
