Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

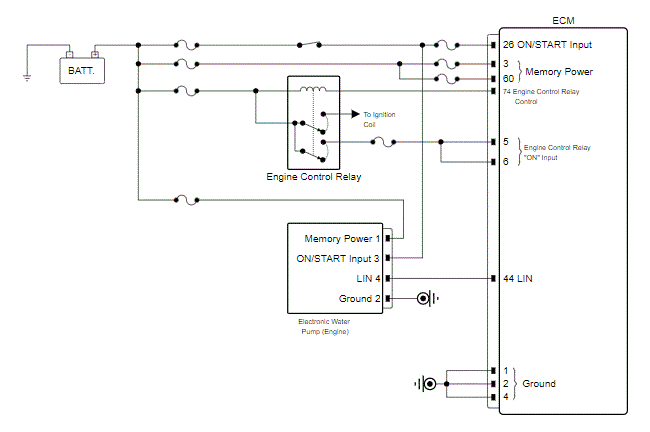

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Electronic water pump connector | 3 (ON/START Input) | Chassis ground | - | B+ |
|
Electronic water pump connector | 1 (Memory power) | Chassis ground | - | B+ |
| Electronic water pump connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω | |
| Electronic water pump connector | 4 (LIN) | ECM connector | 44 (LIN) | Approx. below 1Ω | |
|

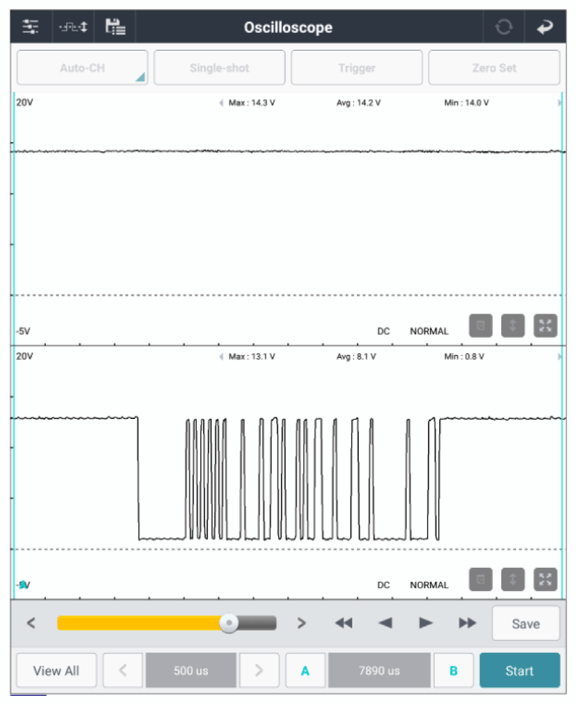

Electronic water pump connector | 3 (ON/START Input) | Chassis ground | - | Fig.1 |
| Electronic water pump connector | 4 (LIN) | Chassis ground | - | ||
Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the electronic water pump and Go to "Verification Of Repair " procedure.
No Good
- Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
