Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

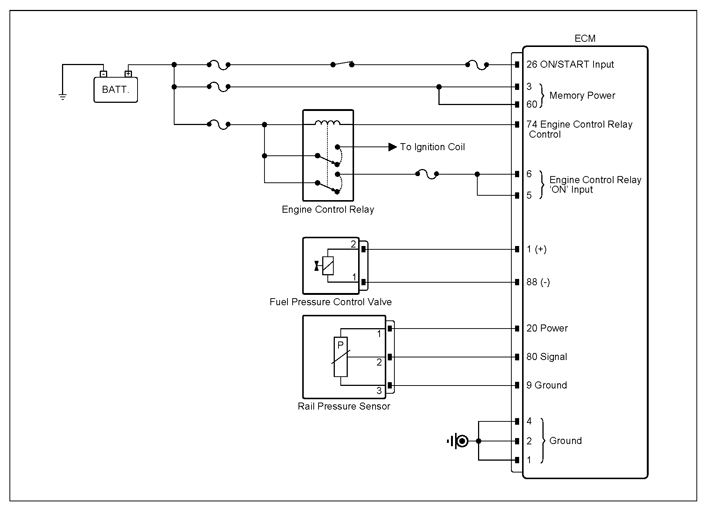

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
FPCV connector | 2 (+) | Chassis ground | - | Approx. 4.0V (duty) |
| FPCV connector | 1 (-) | Chassis ground | - | Approx. 0V | |
| FRPS connector | 1 (power) | Chassis ground | - | Approx. 4.9V | |
| FRPS connector | 2 (signal) | Chassis ground | - | Approx. 4.9V | |
|
FRPS connector | 3 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
